Mini Hammer Mill for Crushing Corn Stalk Straw

Laizhou Chengda Machinery Co., Ltd.
  • Voltage:380V
  • Automatic Grade:Automatic

Base Info

  • Model NO.:CF158
  • Controlling Mode:Switch
  • Energy Saving:Energy Saving
  • Certification:CE, ISO
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Green
  • Capacity:100-1500kg,H
  • Raw Material Diameter:Below 5cm
  • Spare Parts:Sieve and Knives
  • Sieve Size:2.8mm to 12mm
  • Transport Package:Plywood Box
  • Specification:small model for family use
  • Trademark:chengda
  • Origin:China
  • HS Code:8479820090
  • Production Capacity:5000 Piece Per Year
  • Package size per unit product:65.00cm * 40.00cm * 50.00cm
  • Gross weight per unit product:90.000kg
  • Lead Time:10 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Description

5.It has simple construction, convenient operation, high efficiency and low power consumption.
Main Features of Wood Hammer Mills

1. With capacity 200-600kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.



The Hammer Mill Cutter and Sieve

Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed.

Mini Hammer Mill for Crushing Corn Stalk StrawMini Hammer Mill for Crushing Corn Stalk Straw
How to change siev

How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

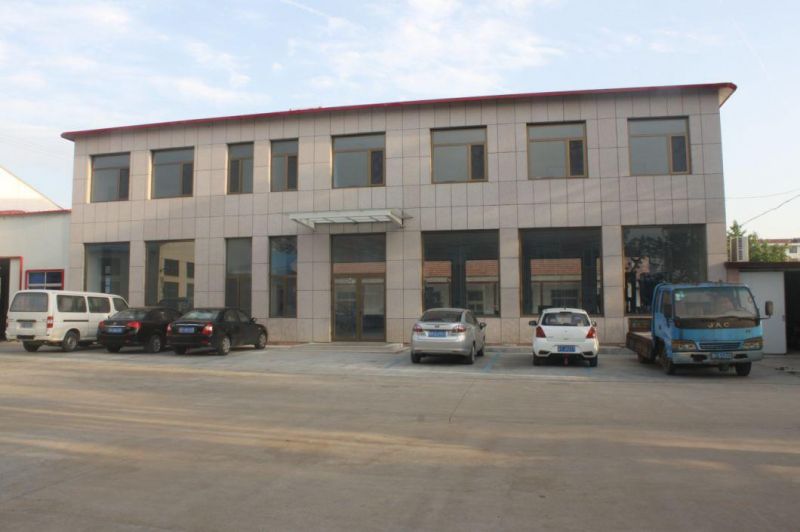

Our companyMini Hammer Mill for Crushing Corn Stalk Straw


FAQWhat kind of raw material is suitable for the Small Pellet Press Machine ?

A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell, corn, straw, grain,soybean and etc.

Any requirements on materials?
A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be 10%-20%

What kind capacity do you have?
A: 40-60kg/h,120-200kg/h, 180-250kg/h, 300-400kg/h, 400-500kg/h and 500-600kg/h,600-800kg/h and etc.

Can I visit your factory, where is your factory located?
A: Yes, sure, welcome to visit our factory at any time, we are in Laizhou city. Shandong province,China

About the installation, can you help us to install them?
A: Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators,
