• Model NO.：JTMXCX
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Customized
• Capacity：0.7-1.8t,H
• Power：55-160kw
• Ring Model Diameter：350-508mm
• Application：Rice Husk, Sunflower Seed Husk and Peanut Shell
• Transport Package：Plywood Box,Plastic Woven Clothes
• Origin：Henan, China
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. JTMXCX Warranty 1 Year Customized Customized Condition New Color Customized Capacity 0.7-1.8t/H Power 55-160kw Ring Model Diameter 350-508mm Application Rice Husk, Sunflower Seed Husk and Peanut Shell Transport Package Plywood Box/Plastic Woven Clothes Origin Henan, China Production Capacity 500 Sets/Year

Product Description

Wood Pellet MachineProduct Introduction

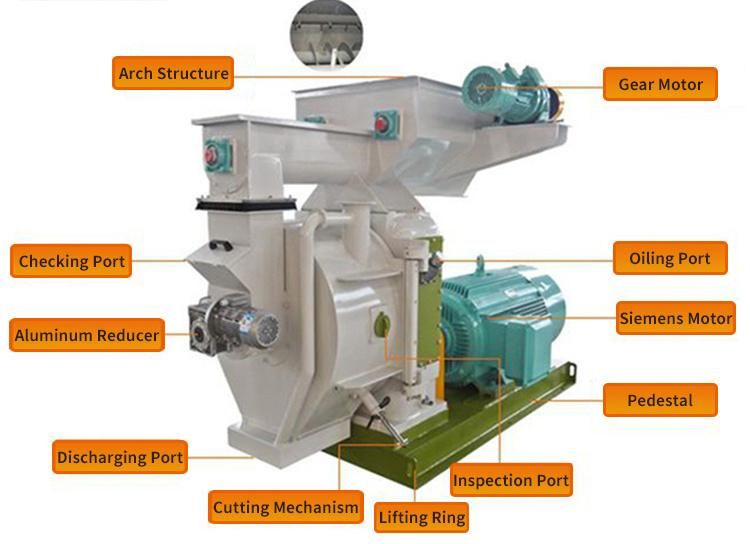

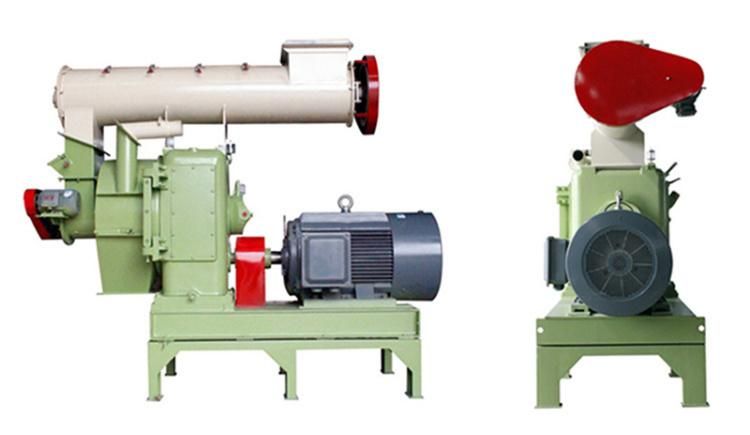

Vertical Ring Die Wood Pellet Machine is a new biomass fuel production machinery by using crushed sawdust and bran from eucalyptus, pine, birch, poplar, fruit and agricultural straw, bamboo. Compared with the old machine, it absorbed the essence of the horizontal ring die and flat die pellet machine, solved the insufficient pressure, die crack problems of the horizontal ring die pellet machine, and overcame the small capacity, the high failure rate of flat die pellet machine.Applicable Materials

Wood pellet machine is mainly applicable for materials that are difficult to mold because of low adhesion rate such as:

1.Rice husk, sunflower husk, peanut shell, and fruit shell;
2. Branch, stem, bark, and other wood waste; a variety of crop stalks;
3. Rubber, cement, ash, and other chemical materials.

Working Principle
Biomass ring-die pellet mill is a nationally pioneering product designed by the technical team from Jiutian. The design of the molds is unique. The press rollers are made of wear-resistant alloy material, The working life of wearing parts is several times similar products. Transmission structure can realize the automatic filtering process of grease. This product with unique design, proper structure, low energy cost, and strong wear resistance, which fills the domestic technical blank of vertical ring-die pellet feeding equipment.

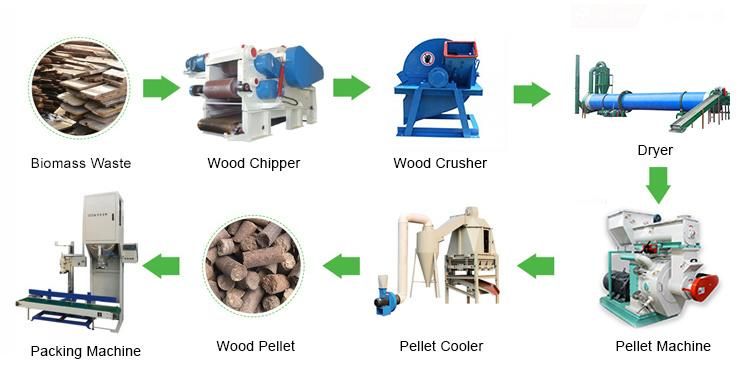

Production Process
Besides the pellet machine, some other auxiliary equipment is also used in the pelleting process, such as a wood chipper, crusher, rotary dryer, cooler, packing machine, etc.

Product Features

(1) Vertical ring die pellet machine is an ideal dense compression molding equipment;

(2) Vertical feeding, directly in the pelletizing room;

(3) Die is static, rollers rotate; materials are evenly distributed around pelletizing room because of centrifugal force, no block ;

(4) Ring die and vertical structure are good for cooling the pelletizing room;

(5) Independent and frequent conversion discharge devices can ensure the formation rate of the pellet.

Specifications
We can help optimize the pelleting process according to the property of different materials, production scale, application requirements, cost control, automation level, and site condition.

Model	Power(kW)	Capacity(t/h)	Ring Model Diameter(mm)	Particle Size (mm)
JTMXCX350	55	0.7	350	Φ2-Φ18
JTMXCX400	75/90	1.0	400	Φ2-Φ18
JTMXCX420	90/110	1.3	420	Φ2-Φ18
JTMXCX508	110/132/160	1.8	508	Φ2-Φ18

About Us

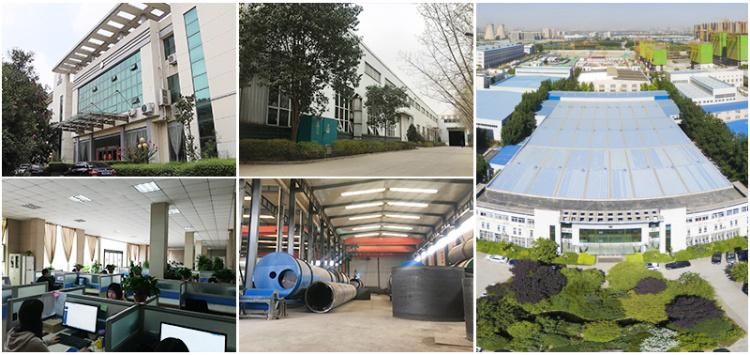

Zhengzhou Jiutian Technology Machinery Co. Ltd. was established in 2003, focusing on the research and development of pellet production lines, drying machines, charcoal machines for more than 15 years. The company has a complete quality management system and strict quality control team. Our products are exported overseas, mainly exported to India, South Africa, Sri Lanka, Russia, Nigeria, and other countries and regions, and have more than 10 years of foreign trade sales experience. All of our products have passed ISO, CE, and SGS certifications. The wood pellet machine produced by our company has the characteristics of low production cost, low noise, and fast production rate. After years of development, our company's production strength, product quality, and integrity have received a lot of praise from the industry and customers.

FAQ
1. What's your MAQ?
Our MAQ is 1 set.

2. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others, including the roller skin, die, and bearing.

3. What is your warranty?
12 months except for the spare parts.

4. Will you send engineers to install the plant?
Of course yes, but an extra cost will be paid by customers. Or you can get local contractors to do the commissioning and we send one supervising engineer.

5. Do you have some foreign customers using your equipment?
 Yes, we have customers all over the world.
