Woodworking Machinery

Wood Chipping Machine Shredder Crusher for Wood Timber Logs

Jiangsu Liangyou Zhengda Co., Ltd.
  • Warranty:24hours
  • Certification:CE, ISO
  • After-sales Service:1 Year
  • Delivery Detail:30-45 Days After Receive Down Payment
  • Rotor Dia(mm):650
  • Number of Flying Knives(PCS):2

Base Info

  • Feed Opening Size(mm):180*500
  • Knife Rotor Speed(Rpm):590
  • Feed Speed(M/Min):37.2
  • Capacity(M3/H):10-18
  • Main Motor Power(Kw):55
  • Transport Package:Iron Pallet or Depending on Customers′ Request
  • Specification:CE, ISO9001, SGS
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8436100000
  • Production Capacity:20 Set,Sets Per Month

Description

Basic Info.

Feed Opening Size(mm) 180*500 Knife Rotor Speed(Rpm) 590 Feed Speed(M/Min) 37.2 Capacity(M3/H) 10-18 Main Motor Power(Kw) 55 Transport Package Iron Pallet or Depending on Customers′ Request Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8436100000 Production Capacity 20 Set/Sets Per Month

Product Description

 Wood Chipping Machine shredder crusher for wood timber logs
Products introduction of wood chipper:

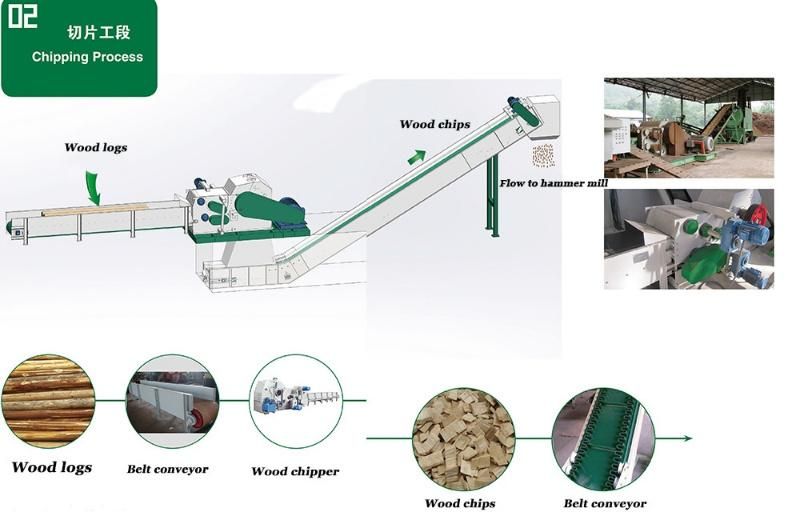

1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the log feeding structure, the wood chipper( tree chipper) and the chips discharging structure.
2. The log feeding structure usually adopted two ways, the conveyor or handwork. For the big log or high capacity model chipper, it usually uses the conveyor feeding the logs into the chipper. For the small model chipper, it usually feeding the logs into chipper by hand work, which could reduce the cost of the conveyor.
3. For the chips discharging structure, it usually adopted the two ways, the chips discharging tube or the discharging conveyor. The discharging tube could blow the chips to about five meters high and spray into the truck directly or the designated place. The discharging conveyor could transport the chips for a longer way to the designated place, such as warehouse.
Wood Chipping Machine Shredder Crusher for Wood Timber Logs
Wood Chipping Machine Shredder Crusher for Wood Timber Logs

Main technical parameters:


Data
Model
LYGX213/5LYGX216LYGX218LYGX218DLYGX2110
Rotor Dia(mm)3006508008001000
Number of flying knives(pcs)22222*2
Feed opening size(mm)120*300180*500225*680240*780330*1050
Knife rotor speed(rpm)730590650650550
Feed speed(m/min)3837.2373833
Max dia of logCutting bark120160160190
Wood chips length(mm)2630303030
Capacity(m³/h)8-1610-1815-203875
Main motor power(kw)4555110132220
Feed roller motor power(kw)2*1.12*32*42*5.52*7.5
Weight(kg)120040707000800012500
Overall dimension(L*W*H)3681*870*9004348*2056*12584670*2150*15004670*2250*15152850*2790*1497

Wood Chipping Machine Shredder Crusher for Wood Timber Logs
Wood Chipping Machine Shredder Crusher for Wood Timber Logs
WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.
