• Model NO.：BXQ1814,50HK
• Specification：Weight: 5500KGS
• Trademark：Metro
• Origin：China
• HS Code：8465960000
• Production Capacity：100set,Month

Basic Info.

Model NO. BXQ1814/50HK Specification Weight: 5500KGS Trademark Metro Origin China HS Code 8465960000 Production Capacity 100set/Month

Product Description

Plywood Core Veneer Spindleless Peeling Machine With Step Motor
1.Product Description:
Spindle-less veneer peeling machine is one of the equipment for the production of plywood, which belongs to the mechanical spindleless rotary cutting transmission machine, suitable for lathe cutting remaining wood core to continue into veneer, also can be applied to small diameter wood (diameter 300mm) into veneer.These advantages like those:
1,Processing of the board thickness uniform, surface smooth;
2,reasonable structure, easy operation and maintenance;
3,equipment performance is stable, less wearing parts, long life;
4,saving timber resources.
5,Artificial technical requirements are not high,in the normal peeling the machine,the error in ± 0.1mm

2.Technical Parameters:

Max working length	1400mm
Knife size	1500mm
Max working diameter	Φ500mm
Min working diameter	Φ30mm
Veneer thickness range	0.6-5.0mm
Roller diameter	125mm
Single roller motor	5.5KWX2
Double roller motor	11KW
Feed motor	7.5KW
Cutting motor	1.5KW
Conveyor motor	1.5KW
Total power	32.5KW
Peeling speed	55~58m/min
Overall size	3500mmx1800mmx1500mm
Weight	5000KGS

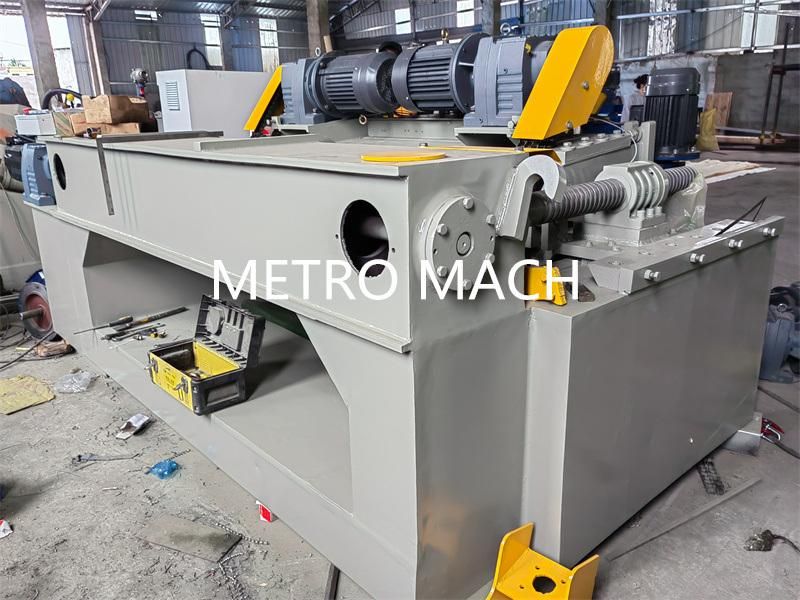

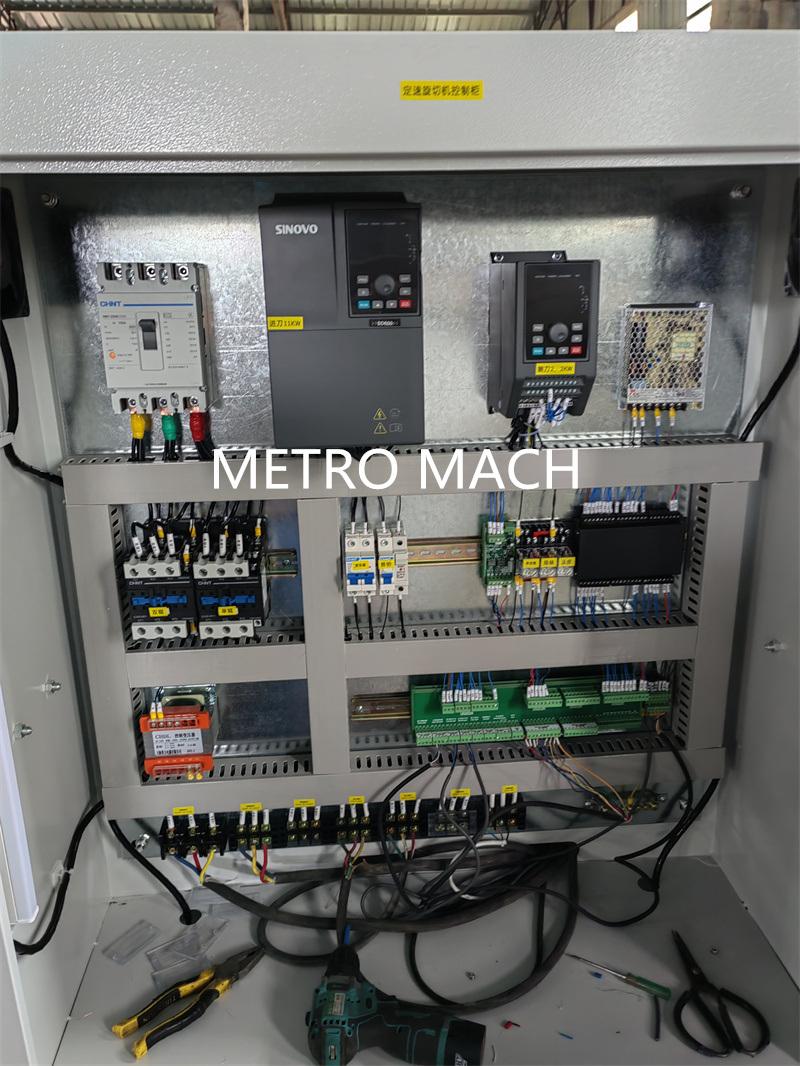

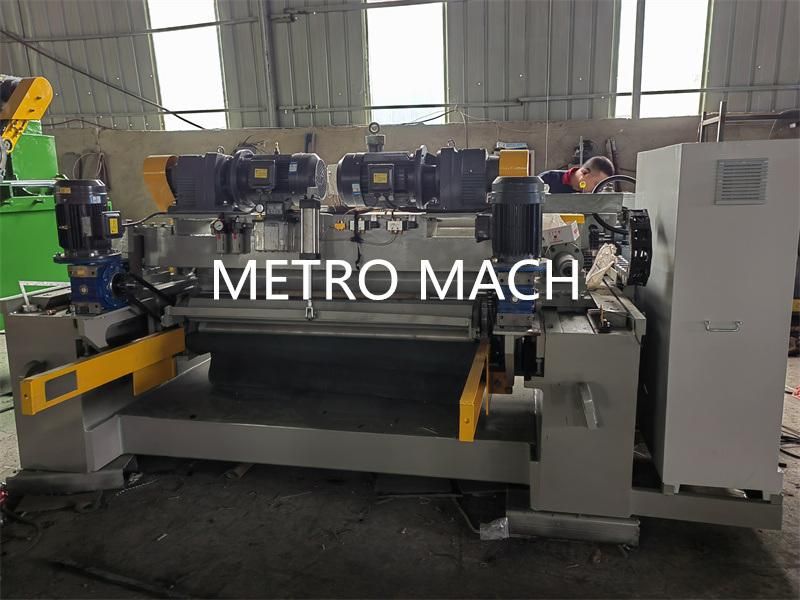

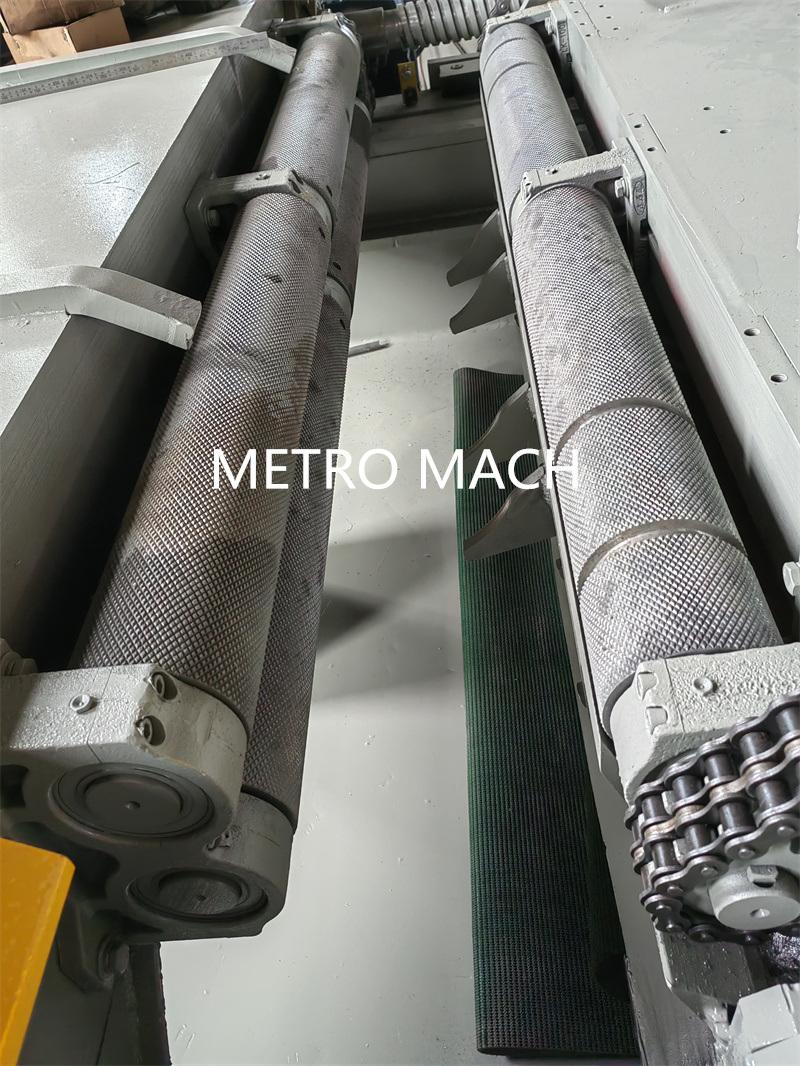

3.Detailed Pictures:

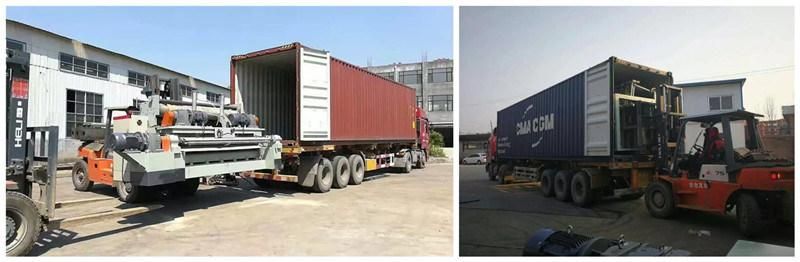

4.Packing and Delivery:

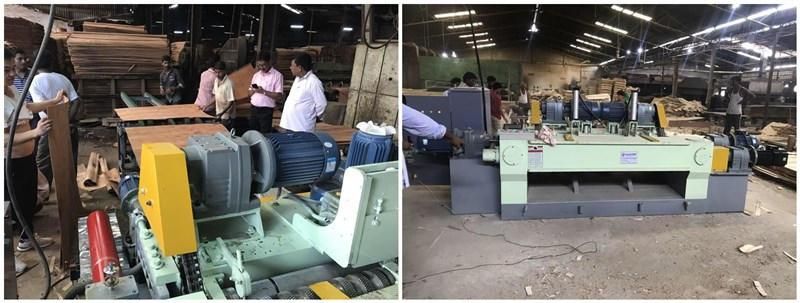

5.Working cases:




6.Client Satisfaction

It remains our prime aim to maintain offered machinery quality standards so as to garner multiple customers besides maintaining good terms with the old ones. Over the years we have been offering an unmatched quality product range and have successfully attained the trust and reliance of our esteemed clients.

Welcome to consult ~
