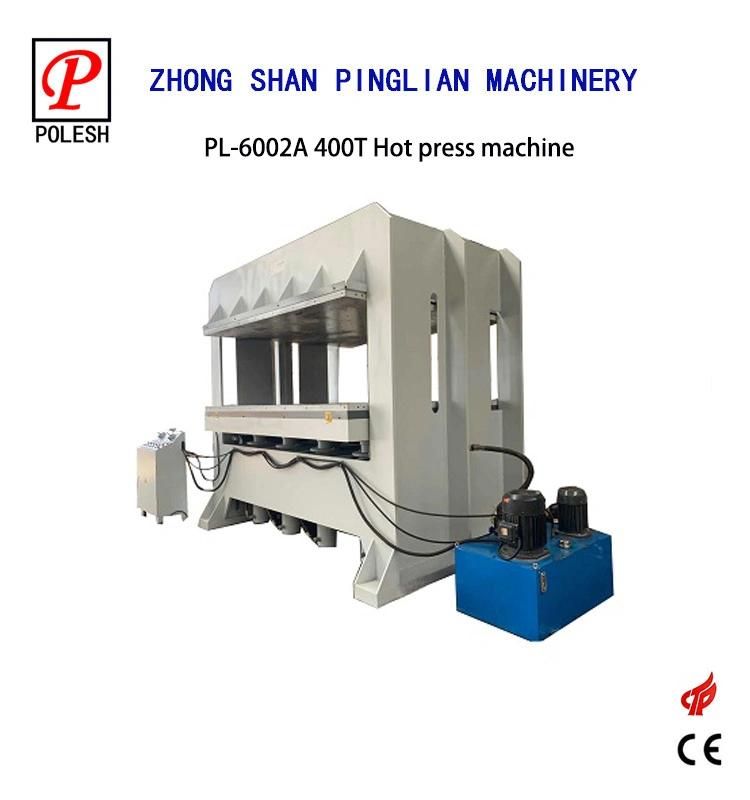

• Model NO.：PL-6002A
• Platen Size：2500*2200*52mm
• Pressure：400t
• Cylinder Stroke：800mm
• Machine Temp：0-350c
• Heating Power：84kw
• Transport Package：by Sea
• Specification：4300*2200*2950mm
• Trademark：POLESH , PINGLIAN
• Origin：China
• HS Code：84532000
• Production Capacity：30sets

ModelPL-6002ARemarkMold plate size2500*2200*52mmCan change platen sizePlaten layer1can follow customer requestOil Pressure400T*1Can follow customer requestHydraulic power15KW Voltage81KW Machine dimension4300*2200*2950mm Packing dimension4300*2200*2950mm Weight ( KG )N:20280 / G:20280

1. Laminating hot press is fit for the furniture factory or panel secondary processing plant, which can make lamination for furniture panel,building partition, wooden door or laminate all kinds of decorative material on man-made board. It also can be used for drying or leveling veneer.


   Main features:
   1.  Adopt solid drilled conduction board, warming up faster,  uniform thermal conductivity, and energy consumption lower.
   2. Omron or Schneider main electric components, it is stable and durable.
   3. Hawe valve from German for auto-open hydraulic valve, high holding pressure, reliable performance, less human factors.
   4. Piston mode for cylinder. Grind, plate hard chromium on the surface and polish piston
   after heat treatment. It is durable and high precision. Adopt special seal-rings for reliability and durability.
   5. Mylar for in and out of the hose, external spoke flexible reinforced,  using cycle is long and difficult to damage.
   6. Configure pull E-stop switch, temperature secondary protection equipment.
