• Model NO.：V6
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Online Support
• Brand Name：Mintech
• Model Number：Vr44
• Price：Competitive
• Quality：High Quality
• Export Markets：Global
• Machine Size：2370*2000*2000mm
• Power Supply：3pH 380V,220V
• Cutting Speed：25.4m,Min
• Transport Package：Wood Packaging
• Specification：1.27 x 1.27m
• Trademark：Mintech
• Origin：China Guangdong Province
• HS Code：8548900090
• Production Capacity：200unit , Month

Basic Info.

Model NO. V6 Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service Online Support Brand Name Mintech Model Number Vr44 Price Competitive Quality High Quality Export Markets Global Machine Size 2370*2000*2000mm Power Supply 3pH 380V/220V Cutting Speed 25.4m/Min Transport Package Wood Packaging Specification 1.27 x 1.27m Trademark Mintech Origin China Guangdong Province HS Code 8548900090 Production Capacity 200unit / Month

Product Description

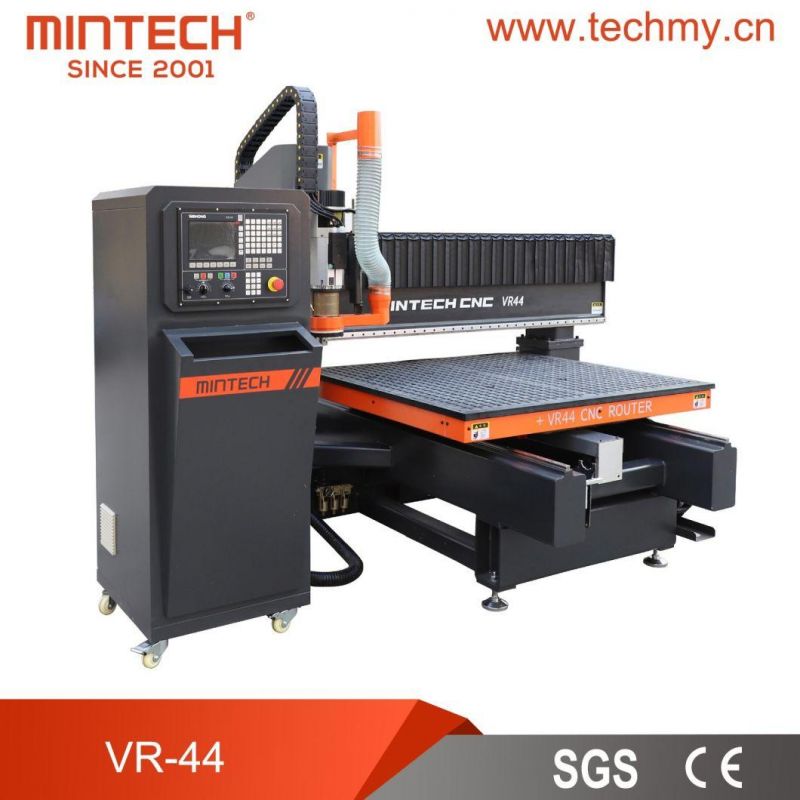

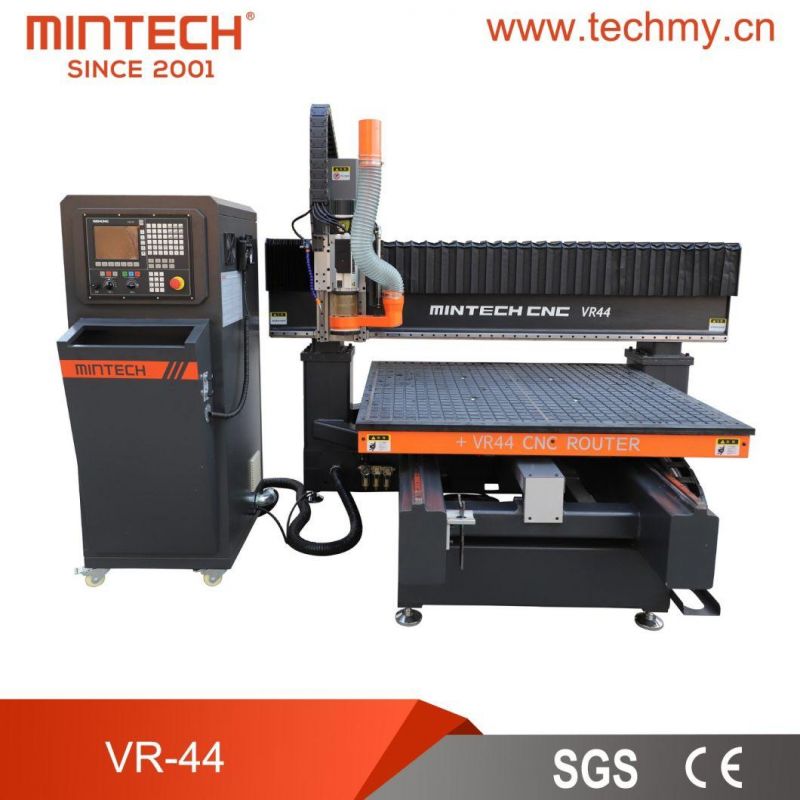

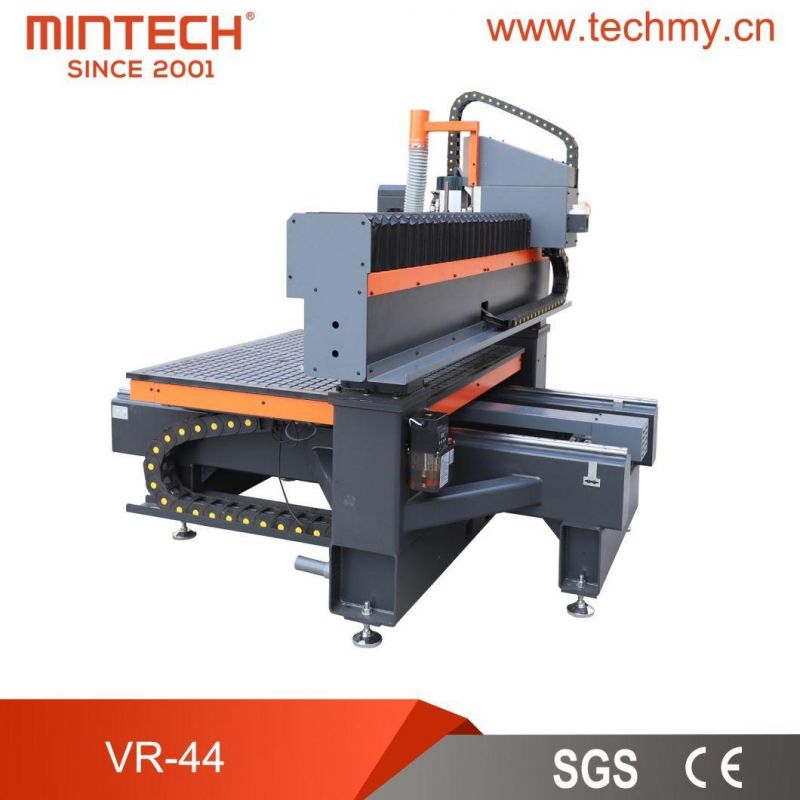

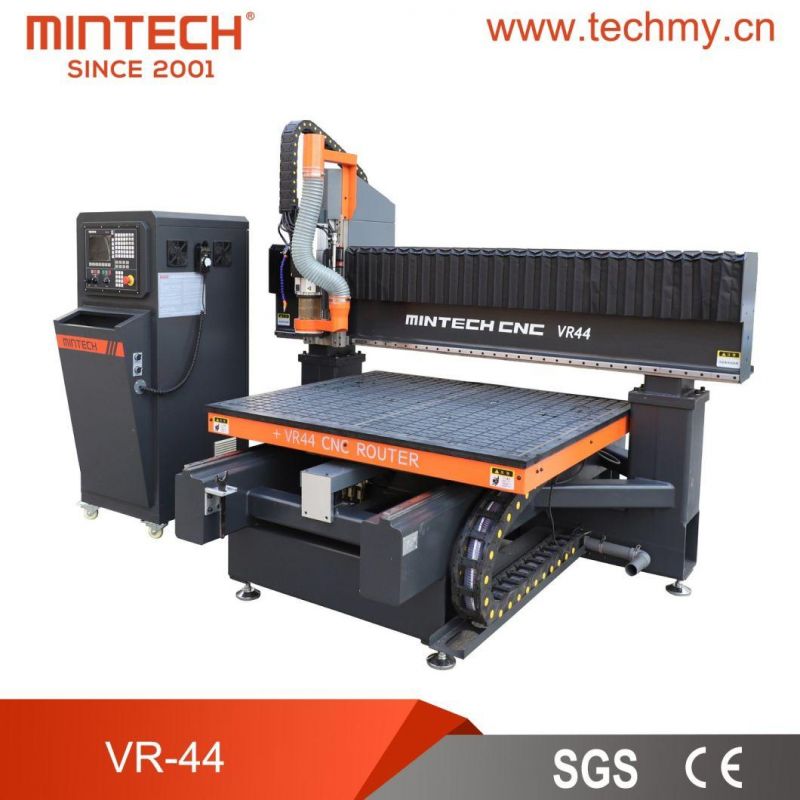

Mintech V series is a kind of X, Y, Z axis adopts screw drive CNC machining center. Ensure the effective operating speed and the precision of the machine;

1. The mechanical structure, The Longmen high rigid structure, The machine adopts a rectangular pipe welding, annealing to stress after heat treatment, fine machining
Using the table to move, Longmen frame does not move
2. Drive system
X, Y, Z axis adopts imported screw drive, both speed and accuracy, stable performance, reasonable structure
, Three axises adopts imported linear guide rail
3. Automatic tool setting gauge
Automatic detection of tool length, quick setting material Zero plane
4. Spindle drive
The spindle driven imported by frequency control, Imported Italy HSD and the series of frequency conversion spindle, 3000-24000RPM, Optional buy from domestic water-cooled spindle
5. The cutter bar and chuck
Taiwan imported cutter bar and chuck; High rigidity, high hardness materials;
The precise dynamic balance: G2.5 30000rpm/50000rpm
6. Vacuum table
Vacuum table greatly improve the work efficiency; And each partition can be controlled separately
7. Kinetic control system
Weihong WEIHONG

Applicable industry:

Advertising production

LED luminous characters

LED light guide plate

Exhibition, Display

Wood furniture

Decoration

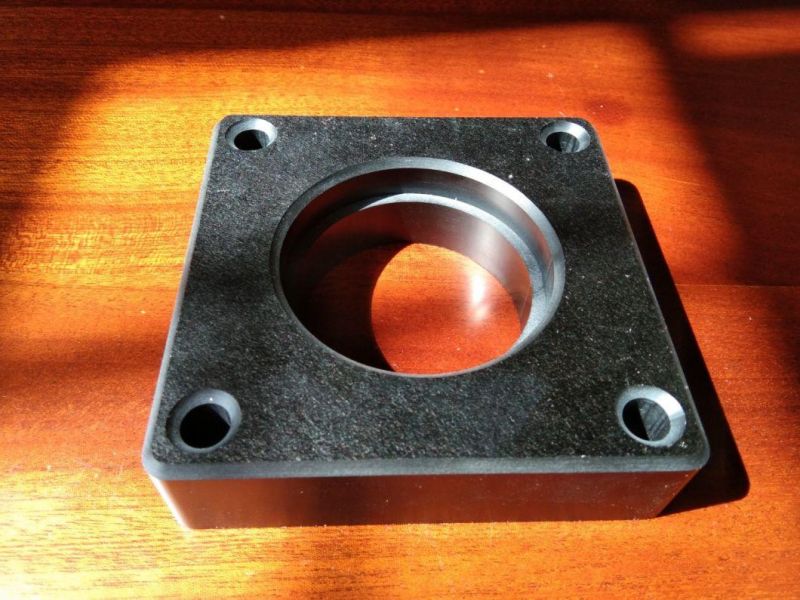

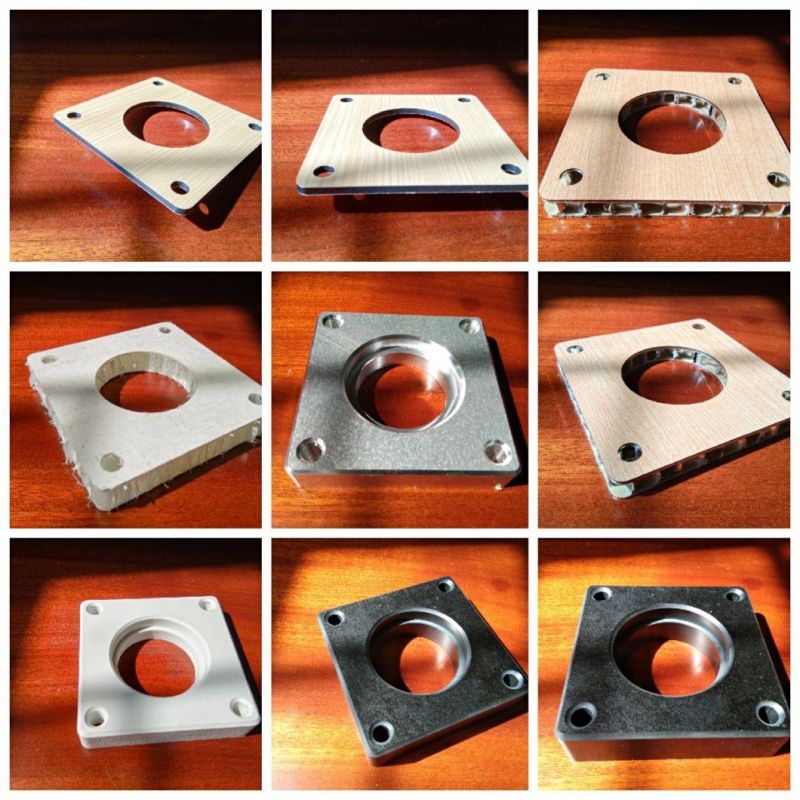

Copper and aluminum processing

Engineering plastic

Repeatability:	+/- 0.05mm
Cutting Speed:	25.4 m/min
Rapid Traverse:	43.2 m/min
Z-axis Clearance:	200mm
ZZ-axis Travel:	305mm
Machine Size:	VR44:2370mm×2000mm×2000mm
Working Area(mm×mm)	VR44:1220mm×1220mm
Power Supply	Three phase 380V/220V
