• Model NO.：XS300
• Lubrication System：Manual, Automatic
• Guide Rail：Taiwan Rectangular Linear Rail
• Transport Package：Wrapped in Layers of Wrapping Film and Ponchos
• Specification：Working Area: 1230*2450*200mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. XS300 Lubrication System Manual/ Automatic Guide Rail Taiwan Rectangular Linear Rail Transport Package Wrapped in Layers of Wrapping Film and Ponchos Specification Working Area: 1230*2450*200mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

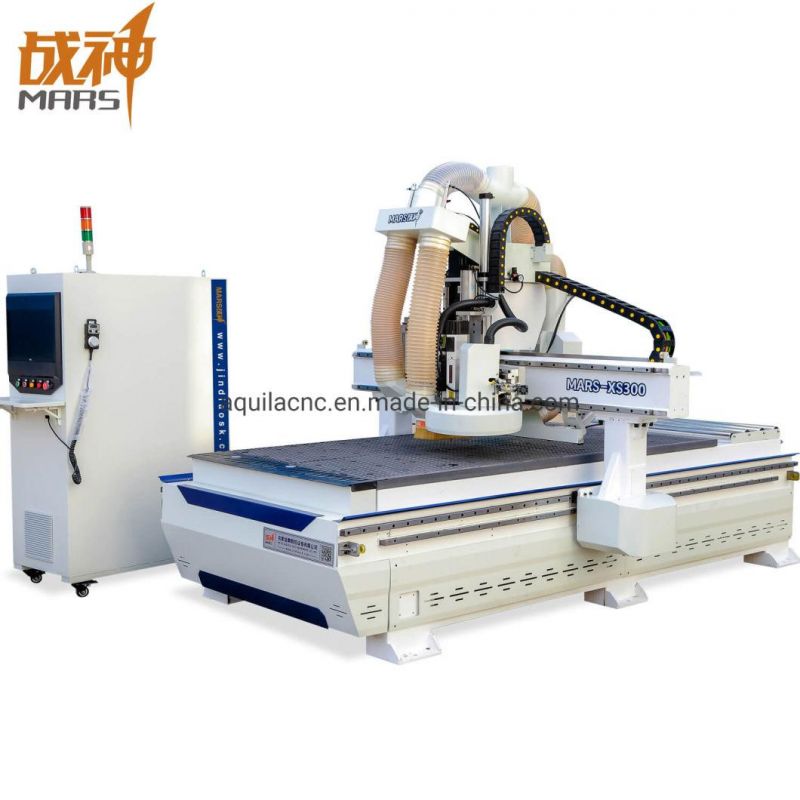

XS300 Automatic Tools Change Approved with ISO9001 Acrylic Board CNC Machine for Wood Panels

Keywords: 15 years experience of production
                        ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brand: Mars, Golden Eagle,Borio


Parameters:


Spindle Power	2.2KW ~ 9KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Control System	NC Studio
Drive System	Stepper motor for all 3 axis
Lubrication System	Manual/ Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan rectangular linear rail
Max Travelling Speed	20m/min
Max Working Speed	10m/min
Engraving Tool	¢3.175/ 4/ 6/ 12.7mm
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm

 Description:

Wood CNC Router Machine for Cutting and Engraving MDF PVC is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.


Functions:
The functions of this machine include cutting,milling,drilling and slotting.






Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
  Accessories:

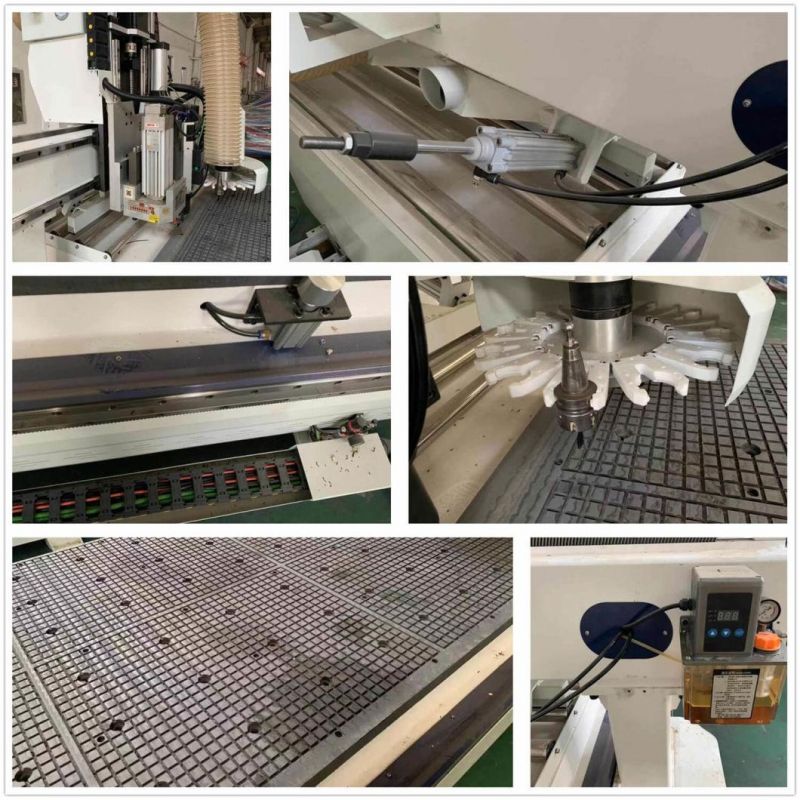

Performance Features:
1. Equipped with all the leading international brand components, Taiwan Syntec control system, Japan Yaskawa servo motor and driver.
2. Carousel type tool magazines support automatic tool changer, improve processing efficiency.
3. Italy 9KW high-power air-cooling spindle can withstand high-speed, heavy loading, low noise characteristics.
4. Machine body structure is made of welded thick-walled square steel tube, with five-sided tempering, to ensure the body never deformation.
5. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
6. Taiwan-made guide rail and ball screw, high precision, long service life, good stability.
7. Taiwan Syntec control system, easy to operation,fully support automatic production
8. Taiwan planetary reducer, with small volume, large torque, high transmission efficiency, wide range of deceleration.
9. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.


Samples:
