• Model NO.：PS254
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• Motor Power：1500W (220V-240V)
• Maximum Blade Size：250mm
• Maximum Depth of Cut：80mm
• Max Rip with Right Hand Extension：610mm (305mm Without)
• Blade Bore：30mm
• Blade Speed：4000rpm
• Sliding Beam Size：1300X220mm
• Transport Package：Plywood Package
• Specification：CE
• Trademark：customer brand
• Origin：Shandong China
• HS Code：8465100
• Production Capacity：100sets,Per Month

Basic Info.

Model NO. PS254 Certification CE, ISO Customized Customized Condition New Color Iron Grey Motor Power 1500W (220V-240V) Maximum Blade Size 250mm Maximum Depth of Cut 80mm Max Rip with Right Hand Extension 610mm (305mm Without) Blade Bore 30mm Blade Speed 4000rpm Sliding Beam Size 1300X220mm Transport Package Plywood Package Specification CE Trademark customer brand Origin Shandong China HS Code 8465100 Production Capacity 100sets/Per Month

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Type: Table Panel Saw
Use: Woodworking
Style: Vertical
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: PS254
Usage: woodworking
Voltage: 240v
Power(W): 1500w
Dimension(L*W*H): 1291mm x 1002mm x 999mm
Weight: 110kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Packaging Details: 68x62x50cm 101/127kg 42.5x52x10cm 4/6kg 103x28x5cm 5/7kg
Delivery Detail: 30-45days

Specifications

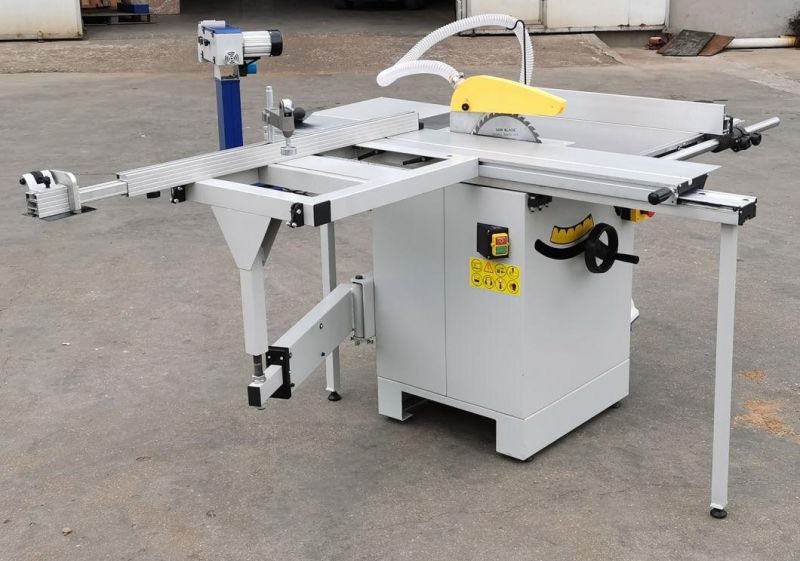

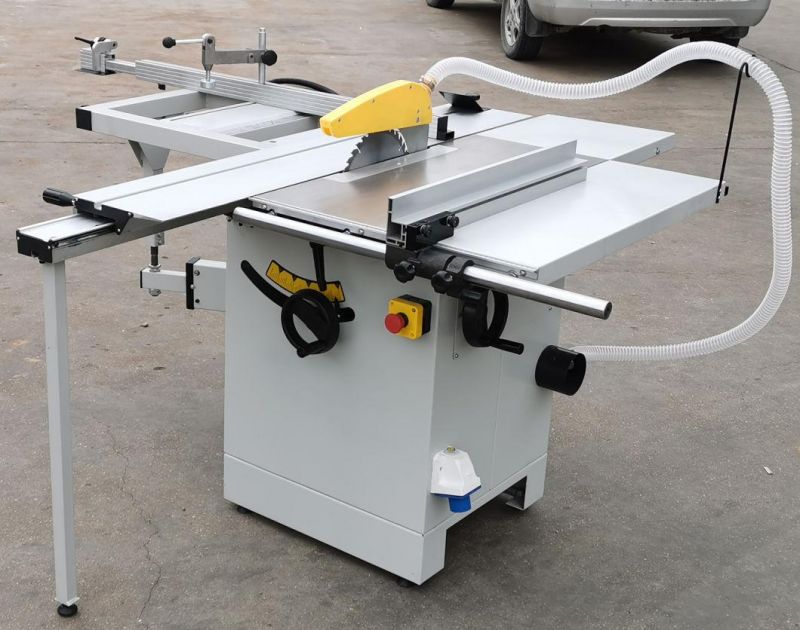

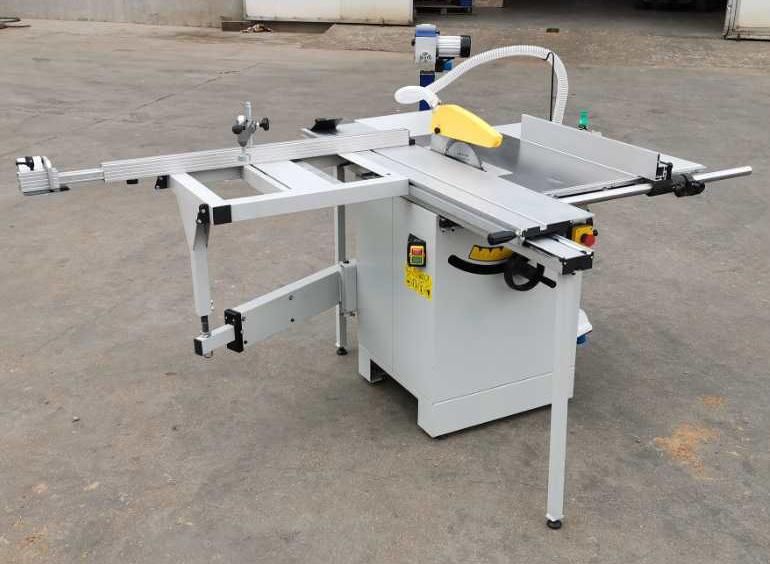

Woodworking compact table Panel Saw PS254

Motor (Induction)L: 2200W, 230V/400V
Saw  Blade : 254x30x32mm/40T
Blade Bore:30mm
Motor speed:2850rpm
Saw blade speed:4000rpm
Saw blade tilt:45°-90°
Max.cutting height:56mm/45°-80mm/90°
Max.cutting width at parallel fence:610mm
Max.cutting length:1250mm
Cast iron main table:790x350mm
Steel extension table:790x270mm    350x350mm
Aluminum table:1320x238mm
Max.aluminum table travel:1300mm
Sliding support:460x600mm
Mitre fence retracted/extracted:1025-1800mm
Table height:850mm
Dust extraction inlet:100mm
N.W:150kg
G.W:178kg
Packing size:820x770x945mm(machine)
                       1350x270x135mm(aluminum table)
                       42pcs/20'     84pcs/40'











Feature:
Functions including planer , thicknesser ,sawing ,morting, spindle moulder ,profiling .More compact frame structure design,top quality requirements for the products finishing.
New improved carriage : stronger carriage ,bigger carriage support.
