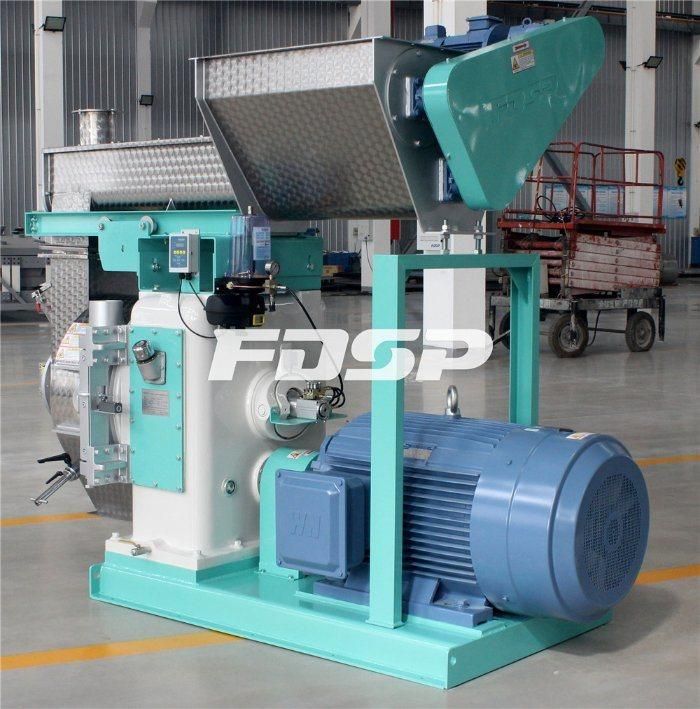

Flour Grass Rice Husk Pellet Making Equipment
Jiangsu Liangyou Zhengda Co., Ltd.- Type:Gear Driven
- Voltage:380V
- Automatic Grade:Automatic
- Controlling Mode:Artificial
- Energy Saving:Energy Saving
- Certification:CE, ISO
Base Info
- Model NO.:WZLH420
- Warranty:1 Year
- Customized:Customized
- Condition:New
- Color:Green
- After-sales Service:Provided
- Capacity(T/H):1.5-1.8
- Main Power(Kw):110,132
- Pellet Size(mm):6-8
- Brand of Motor:Siemens
- Transport Package:Iron Pallet and Soft Guard
- Specification:CE, ISO
- Trademark:FDSP
- Origin:Jiangsu, China (Mainland)
- HS Code:84793000
- Production Capacity:5 Sets,Month
Description
Basic Info.
Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Green After-sales Service Provided Capacity(T/H) 1.5-1.8 Main Power(Kw) 110/132 Pellet Size(mm) 6-8 Brand of Motor Siemens Transport Package Iron Pallet and Soft Guard Specification CE, ISO Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 84793000 Production Capacity 5 Sets/MonthProduct Description
Flour Grass Rice Husk Pellet Making EquipmentFeatures
1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of light substances with the density of 0.15-0.65g/cm3;
3. Feeder,conditioner and chute are made of stainless steel with long service life;
4. It is with magnet and over load protection system which can protect machine well during production;
5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.
Technical Parameters
Model | WZLH420 | WZLH508 | WZLH680 |
Ring die inner diameter (mm) | 420 | 500 | 688 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |

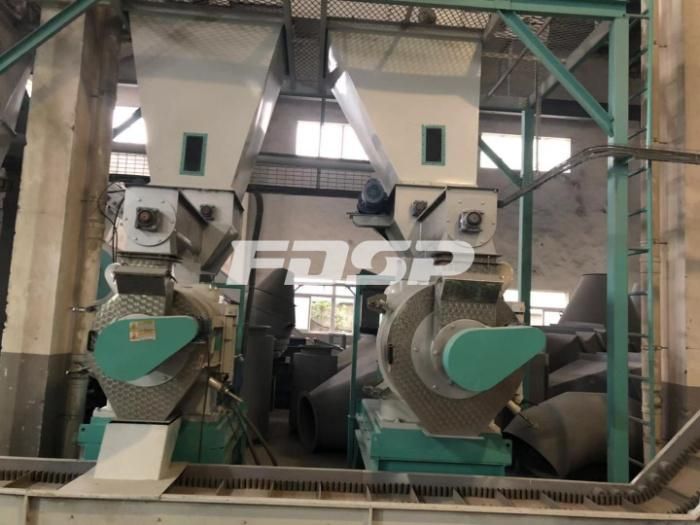

FDSP Workshop
