• Model NO.：CA-1516
• Tool Holder：3 Axis 6 Blades
• Automatic Grade：Automatic
• Precision：High Precision
• Controlling Mode：CNC
• Power Source：Mechanical Drive
• Processing Accessory：Centre CNC Lathe
• Certification：CE, ISO, FDA
• After-sales Service：Support
• Max Process Length：1500mm(Can Custom 2000,2500,3000mm)
• Max Turning Diameter：160mm
• Air Pressure：0.6-0.8MPa
• Power Supply：AC 380V 3 Phase 50Hz,60Hz
• Min Setting Unit：0.01cm
• Transmission Type：Ball Screw for Y Axis
• Guider：Taiwan Hiwin Orbit
• Main Shaft Rotating Speed：0-3000r,Min
• Motor Power：4kw
• Cutter Material：Hard Alloy Blade
• Control System：LCD Control System
• Hand Controller Recognise File：*.Dxf
• Drawing Software：Autocad
• Command Language：G Code
• Working Size：Max 160mm Diameter, Max 1500mm Length
• Transport Package：Plywood Case
• Specification：max 160mm diameter, max 1500mm length
• Trademark：CAMEL CNC
• Origin：China
• HS Code：84659200
• Production Capacity：500 Sets,Month
• Package size per unit product：3100.00cm * 1100.00cm * 1700.00cm
• Gross weight per unit product：1650.000kg

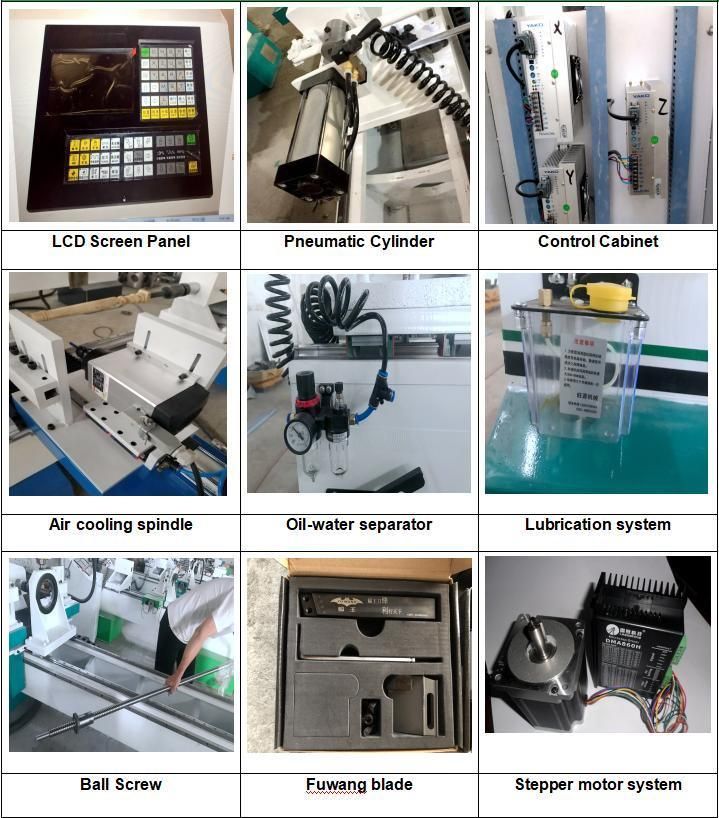

Product acessories

Packaging & Shipping
