Model C Standard Woodworking CNC Machine/CNC Routing Machine
Hefei Aquila CNC Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE, Ce, ISO 9001
- CNC or Not：CNC
- Voltage：380V
- Process Usage：CNC Non-Conventional Machine Tools
- Movement Method：Linear Control
Base Info
- Model NO.：standard C
- Control Method：Open-Loop Control
- Numerical Control：CNC,Mnc
- Processing Precision：0.01~0.02(mm)
- Performance Classification：High-End CNC Machine Tools
- Application：Wood,Stone,Mable,Tile,Granite,Tombstone,Sign Plate
- Transport Package：Wooden Case Package
- Specification：1800*2500mm
- Trademark：Mars
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Applicable Scope Processing Be suitable for processing complicated products, with wide rage of functions, including drilling, side milling, etc. Material Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper Application Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
StrengthEasy operation, competitive price and functional processing for furniture production The machine control interface is designed to be user-friendly, fool-like operation, and the operator can be employed through simple training without the need for skilled workers
Accessories:
Performance Features:
1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..
Strength
Parameters:
| Model | Three-spindle Woodworking Engraving Machine |
| Working Stoke | 2000mm*2500*160mm |
| Feeding Height | 160mm-250mm |
| Table Structure | T-slot aluminum |
| Body Structure | Thick steel tube welded, w/ tempering |
| Spindle Power | 1.5KW*3 frequency water-cooling spindle |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Engraving Tool | ¢3.175/4/6/12.7mm |
| Control System | NC Studio/DSP |
| Drive System | Stepper motors & drivers |
| Lubrication System | Automatic |
| Transmission | X&Y axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin rectangular linear rail |
| Transformer | 630VA |
| Max Travelling Speed | 20m/min |
| Max Processing Speed | 15m/min |
| Dictate Format | G code/ HPGL |
| Working Accuracy | ±0.02mm |
| Re-positioning Accuracy | ±0.05mm |
| Working Environment | Temperature 0ºC ~ 90ºC, Humidity 30% ~ 75% |
| Working Voltage | AC380/ 3PH/ 50HZ |
| Net Weight | 1500KG |
| Machine Size | 3400*2300*1700mm |

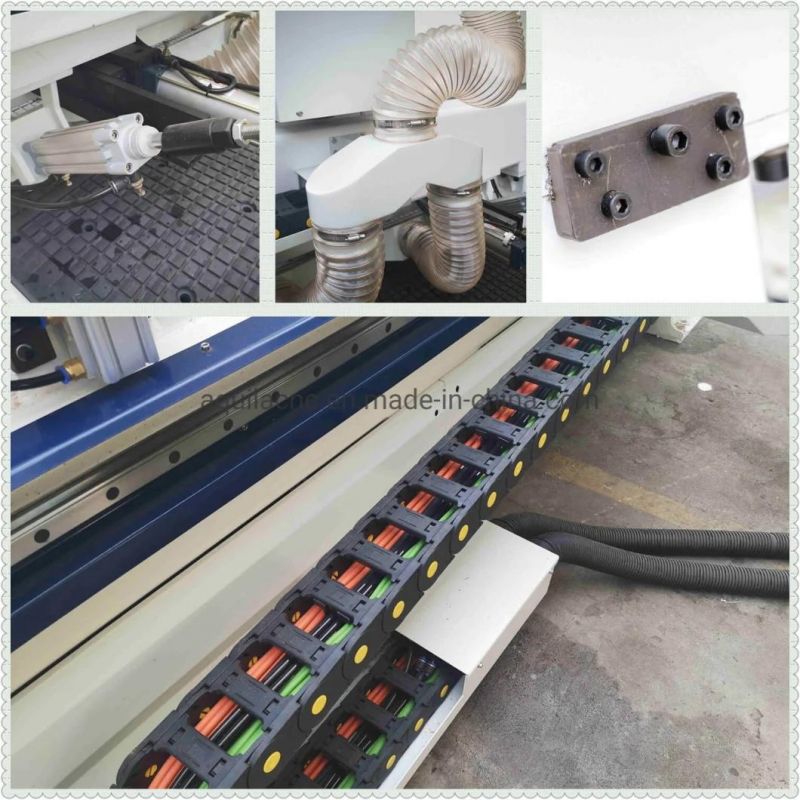

Accessories:
Performance Features:
1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..
Samples:

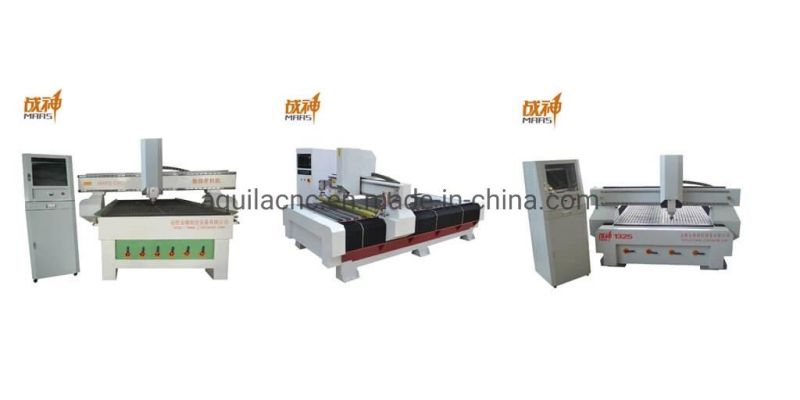

Similar Products
