• Model NO.：CA-1325
• Certification：CE
• CNC or Not：CNC
• Voltage：380V
• X,Y,Z Working Area：2000X4000X200mm
• Software：Ucancam, Artcam, Type3
• X,Y Working Delicacy：<0.01mm
• Operating System：Nc-Studio
• Lathe Structure：Welded Structure
• X, Y Structure：Rack Gear Transmission, Shaft Linear Bearings
• Z Structure：Ball Screw, Shaft Linear Bearings
• Max. Consume Power：6.5kw
• Max. Speed：0-32000mm,Min
• Max. Working Speed：0-20000mm,Min
• Spindle Power Motor：3.2kw Water-Coolant Spindle
• Spindle Speed：0-24000rpm
• Drive Mode：Stepper Motor and Driver
• Working Voltage：AC220V,380V, 50,60Hz
• Command：G Code, *Uoo, *Mmg, *Plt
• Transport Package：Plywood Case
• Specification：3300mm*2100mm*1650mm
• Trademark：Camel CNC
• Origin：Shandong
• Production Capacity：10000sets,Month
• Package size per unit product：325.00cm * 205.00cm * 190.00cm
• Gross weight per unit product：1650.000kg

Detailed PhotosSample Display

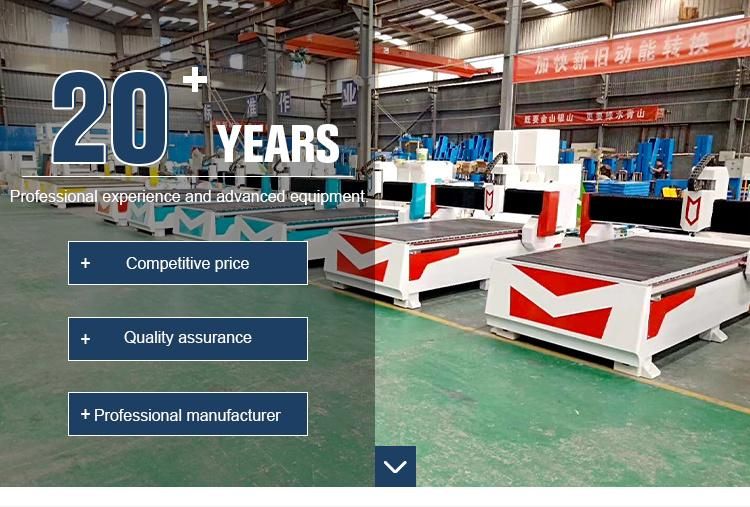

Company Profile

FAQ



Q1:How to choose a suitable machine?
You can tell us the working piece material,size,and the request of machine function. We can recommend the most suitable machine according to our experience.

Q2:This is the first time i buy the machine,is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning,we can also help you by"Team viewer"online,with telephone or Skype explain.

Q3:Can you customize the machine for me?
Yeswe provide customized solution,but considering the cost,we will recommend the standard
configuration to you first.

Q4:What is the guarantee? In case the machine break down?
The machine has 2 year guarantee,fail parts will be replaced for free if the machine under "normal operation".

Q5:How about the documents after shipment?
Wewill send all the documents by air after shipment.Including packing list,commercial invoice,B/L, and other certificates required by clients.

Q6:Delivery time?
For standard machine,it would be 7-10 working days; for non-standard machine,it would be20-30 working days.

Q7:How is the payment?
Normally we acceptT/or L/Cif you like other terms,tell us in advance.

Q8:Do you arrange the shipment for me?
For FOB or CIF price,we will arrange shipment for you,for EXW price,you should arrange the shipment by yourself.

Q9:How is the packing?
Step1:waterproofwrappingfilm with foam protection in each coner
Step2:Solid seaworthy wood box package with steel belt
Step3:Save space as much as possible for container loading
