• Model NO.：UG-1313
• Working Area：1300(X)mm*1300(Y)mm*200(Z)mm
• Working Table：Transverse Aluminum Alloy T Slot
• Guide Rail：Linear Square Guide Rail ( Hiwin, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis, Lead Ball Scre
• Driving Mode：Stepper Motor (86bygh450b) and Driver or Xyz-Axis
• Spindle Motor：3.2kw Water Cooling, Er20, Hqd, China
• Spindle Speed：0-24000rpm
• Control System：DSP Offline Controller, Rich Auto, A11e
• Lubrication System：Semi-Auto
• Dust Collector：3.0kw
• Tools Calibration：Wireless, Auto
• Lubrication：Semi-Auto
• Transport Package：Plywood Case
• Specification：3200*2280*1960mm, 1400KGS
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month
• Package size per unit product：218.00cm * 213.00cm * 190.00cm
• Gross weight per unit product：800.000kg

Features

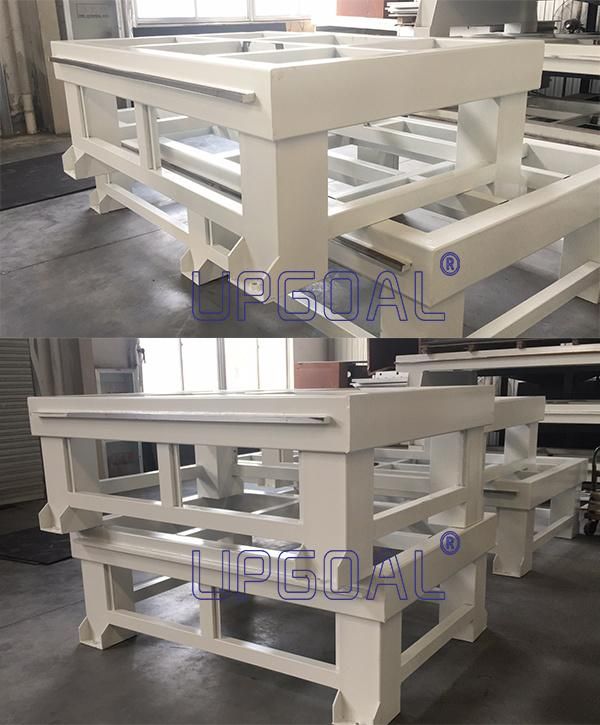

1.Welded stonger square steel tube structure as a whole with vibration temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

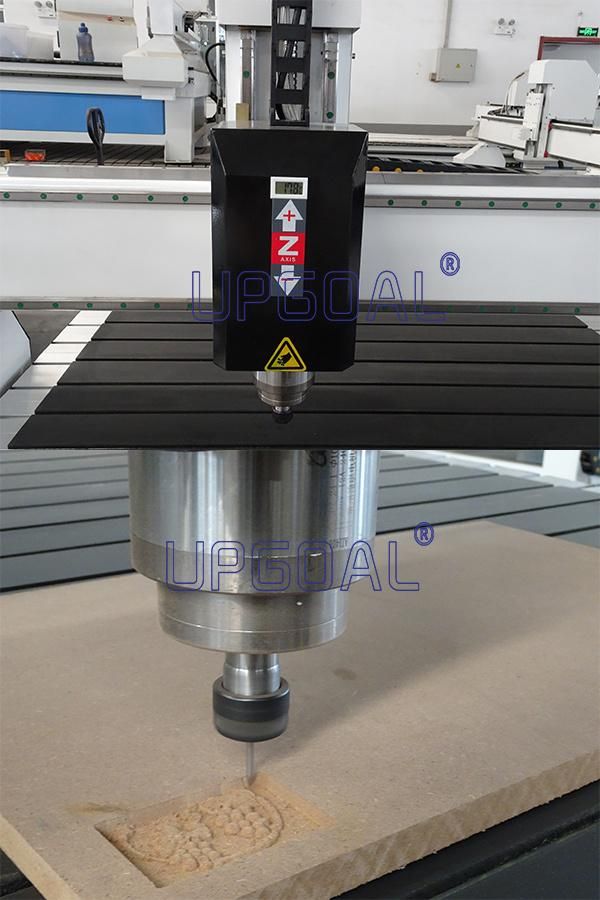

2.Large power Hanqi 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter., with temperature, better supervise the water cooling temperature of spindle.

3. Transverse aluminum alloy T slot working table, better for materials fixing.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

5. XINYUE Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

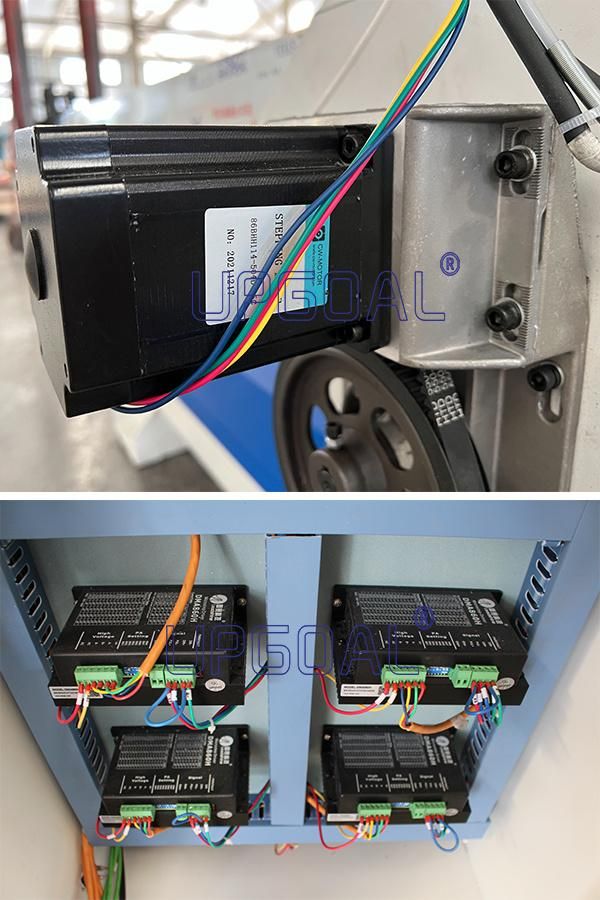

6. China famous Chuangwei 86BYGH450B stepper motor and Leadshine stepper driver 860 for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

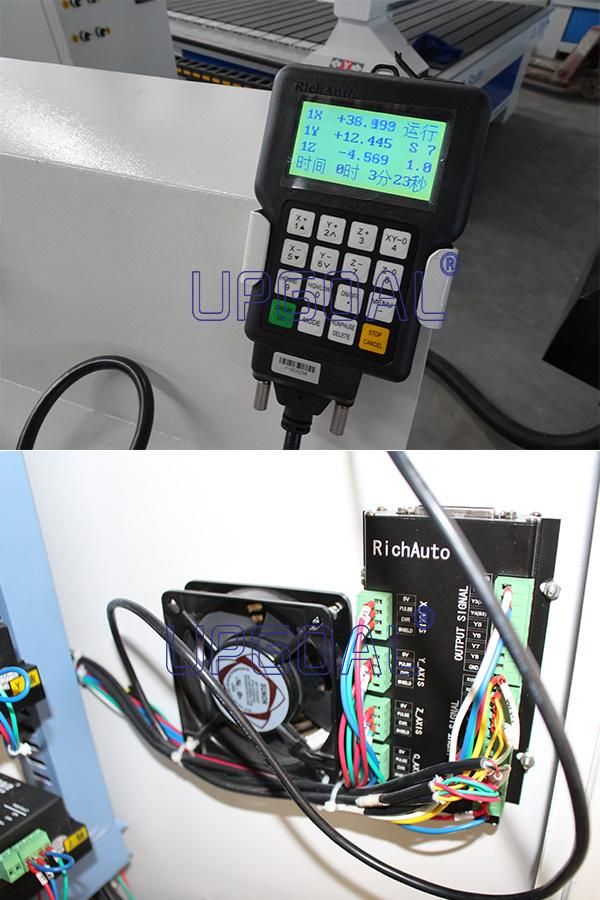

7.RichAuto DSP A offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically..

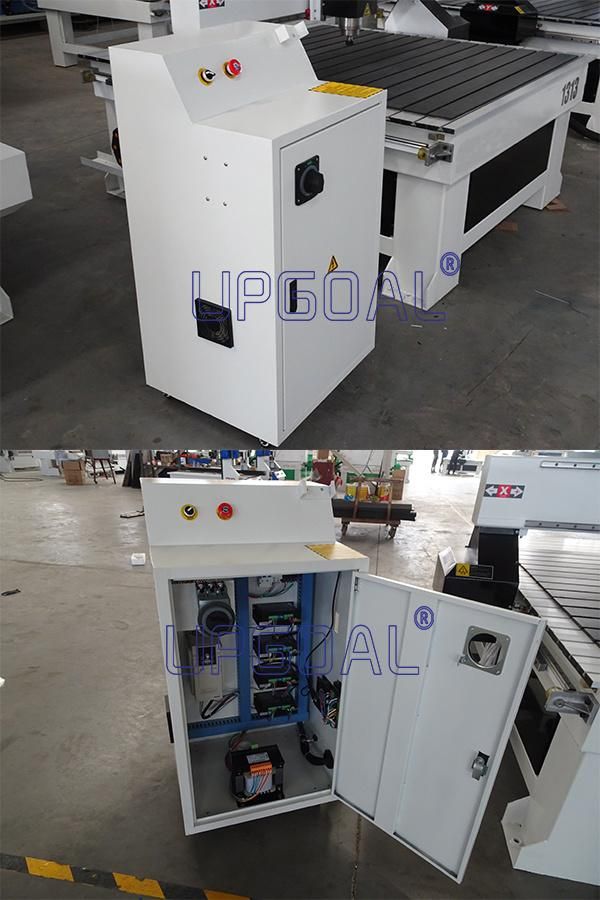

8. Independent contrrol cabinet with famous electric parts, ensuring machine precision & stable moving.

9. With 3.0kw dust collector, suck dust, milling dust, keeping the machine cleaning.


10.Semi-auto lubrication system more convenient for maintenance.

11 .Wireless Auto tool calibration, more convenient for each time Z-axis 0 point setting.


12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
