1400t 4X8FT Shortcycle Lamination Hot Press Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Hot Press
- Structure：Frame Type
- Pressing Shape：Flat Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Multi Layer
Base Info
- Model NO.：TLY114X8,14
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO, FDA
- Pressure：1400t
- Voltage：380V,415V
- Transport Package：Standard Export Package
- Specification：400T, 500T, 600T
- Trademark：Metro
- Origin：Shandong, China
- HS Code：8465990000
- Production Capacity：50set,Month
Description
Basic Info.
Model NO. TLY114X8/14 Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Pressure 1400t Voltage 380V/415V Transport Package Standard Export Package Specification 400T, 500T, 600T Trademark Metro Origin Shandong, China HS Code 8465990000 Production Capacity 50set/MonthProduct Description

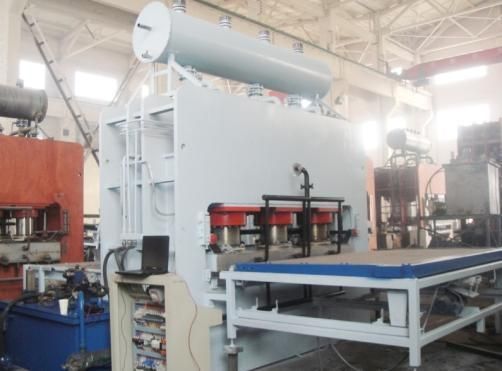

1400T 4x8FT Shortcycle Lamination Hot Press Machine
Description:Our factory produces hydraulic hot press machine that is widely used in wood processing, building decoration and other industries. Hot press is applicable to the facing process of particle board, medium density fiberboard(MDF), melamine impregnated paper.Through many years's reseaches and experiments ,new-generation of press machine was devepoled and manufactured ,with production of high speed veneer of good quality ,stable performance ,smooth and simple operation ,electromechanical integration. We can also design hot press machine according to your requirements. So far, our company has successfully made 6*12ft size 1200Ton lamination hot press machine.
Technical Specification:
| Model | TLY114×8/14-II |
| Nominal gross pressure | 14000Kn |
| Direction of feeding plate | HORIZONTAL |
| Layer Counting | 1 Layer |
| Distance between hot platens | 200mm |
| Numbers of hot platens | 2 pcs |
| Dimension of Hot Platens | 2600×1400×140mm(up) 2600×1400×100mm(down) |
| Numbers of Cylinder | 6 Pcs |
| Diameter of Cylinder | Φ340mm |
| Stroke of Cylinder | 200mm |
| Pressurization | ≤25Mpa |
| The Position of Cylinder | up |
| Empty Closing Time | About 2-3 s |
| Max Temperature | <210 |
| Numbers of Lift Cylinder | 4pcs |
| Diameter of Cylinder | Φ80mm, Φ30 |
| Stroke of Cylinder | 200mm |
| High Pressure Pump Flowing | About 89L/min |
| Allowed Pressure | ≤25Mpa |
| Power | 37Kw |
| Pressure of Unit Plate Blank | 47Kgf/CM2 |
| Control Method | Automatic pump station |
| Frame steel plate thickness | 60mm |
| Total weight | 37000kgs |
The quotation includes the device as follows: SECTION III
01 Automatic Loading Belt machine............ 102 Short-Cycle laminating hot press...…. 1
03 Hydraulic system for hot press........1
04 Unload table.................. 1
05 Electric control system............ 1
