• Model NO.：R-RP1000
• Total power：35.37kw
• Motor for first unit：18.5kw
• Motor for second unit：15kw
• Feeding motor：1.5kw
• Lifting motor：0.37kw
• Diameter for first roller：190mm
• Diameter for second roller：190mm
• Sand belt size：1020X2000mm
• Working pressure：0.6MPa
• Weight：2000kg
• Transport Package：Film Package
• Specification：1900x1600x2100mm
• Trademark：Zicar
• Origin：China
• HS Code：8465930000
• Production Capacity：500

Basic Info.

Model NO. R-RP1000 Total power 35.37kw Motor for first unit 18.5kw Motor for second unit 15kw Feeding motor 1.5kw Lifting motor 0.37kw Diameter for first roller 190mm Diameter for second roller 190mm Sand belt size 1020X2000mm Working pressure 0.6MPa Weight 2000kg Transport Package Film Package Specification 1900x1600x2100mm Trademark Zicar Origin China HS Code 8465930000 Production Capacity 500

Product Description

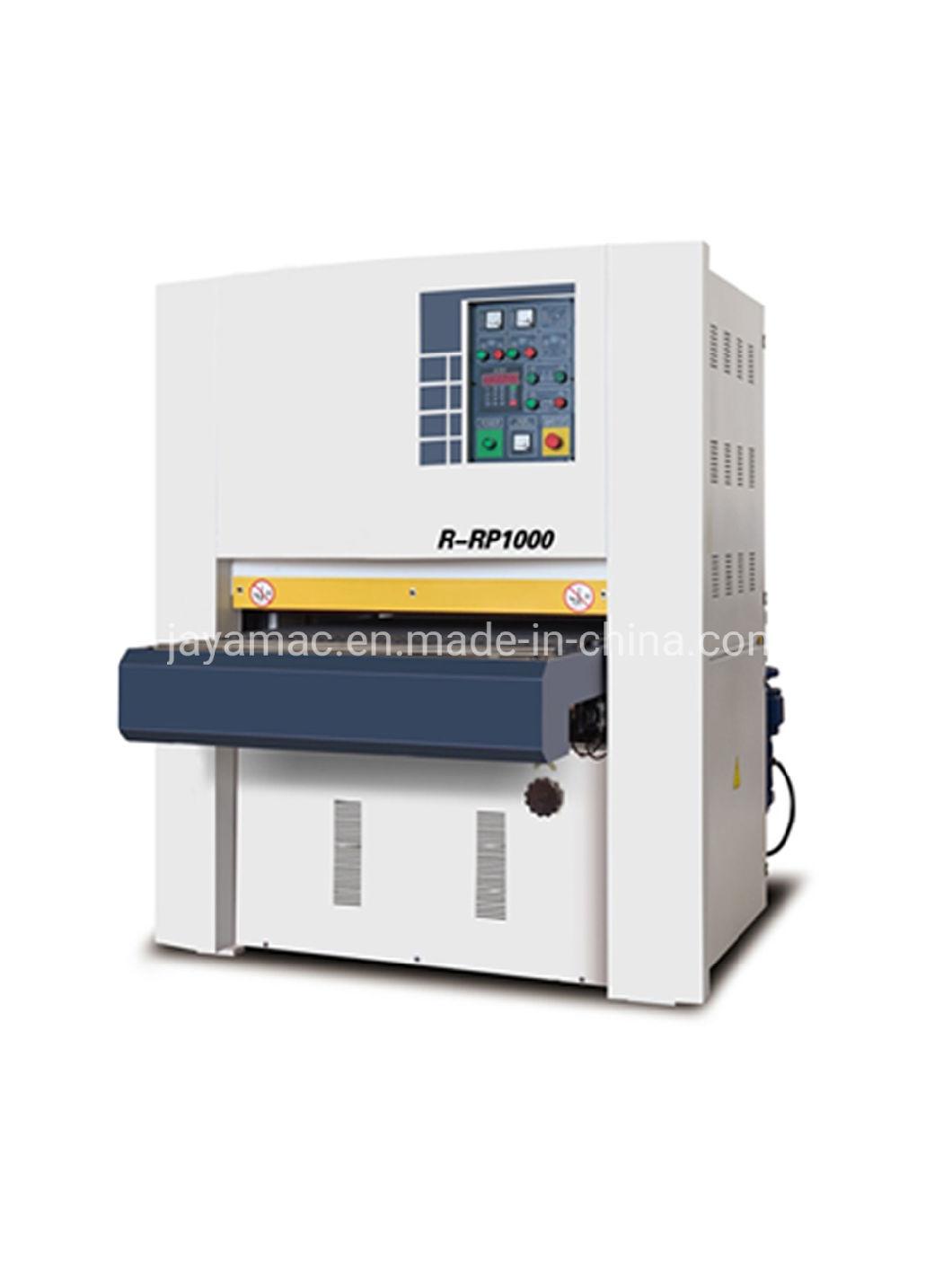

Wide Belt Sanding Machine R-RP1000

 Product Paramenters


Model	R-RP1000
Max.working wideh	1000mm
Min.processing length	500mm
Processing thickness	3-110mm
Converyor speed	6-30/min
Total power	35.37kw
Motor for first unit	18.5kw
Motor for second unit	15kw
Feeding motor	1.5kw
Lifting motor	0.37kw
Diameter for first roller	190mm
Diameter for second roller	190mm
Sand belt size	1020×2000mm
Working pressure	0.6Mpa
Dust collecting	8000m³/h
Outline dimension	1900×1600×2100mm
Weight	2000kg

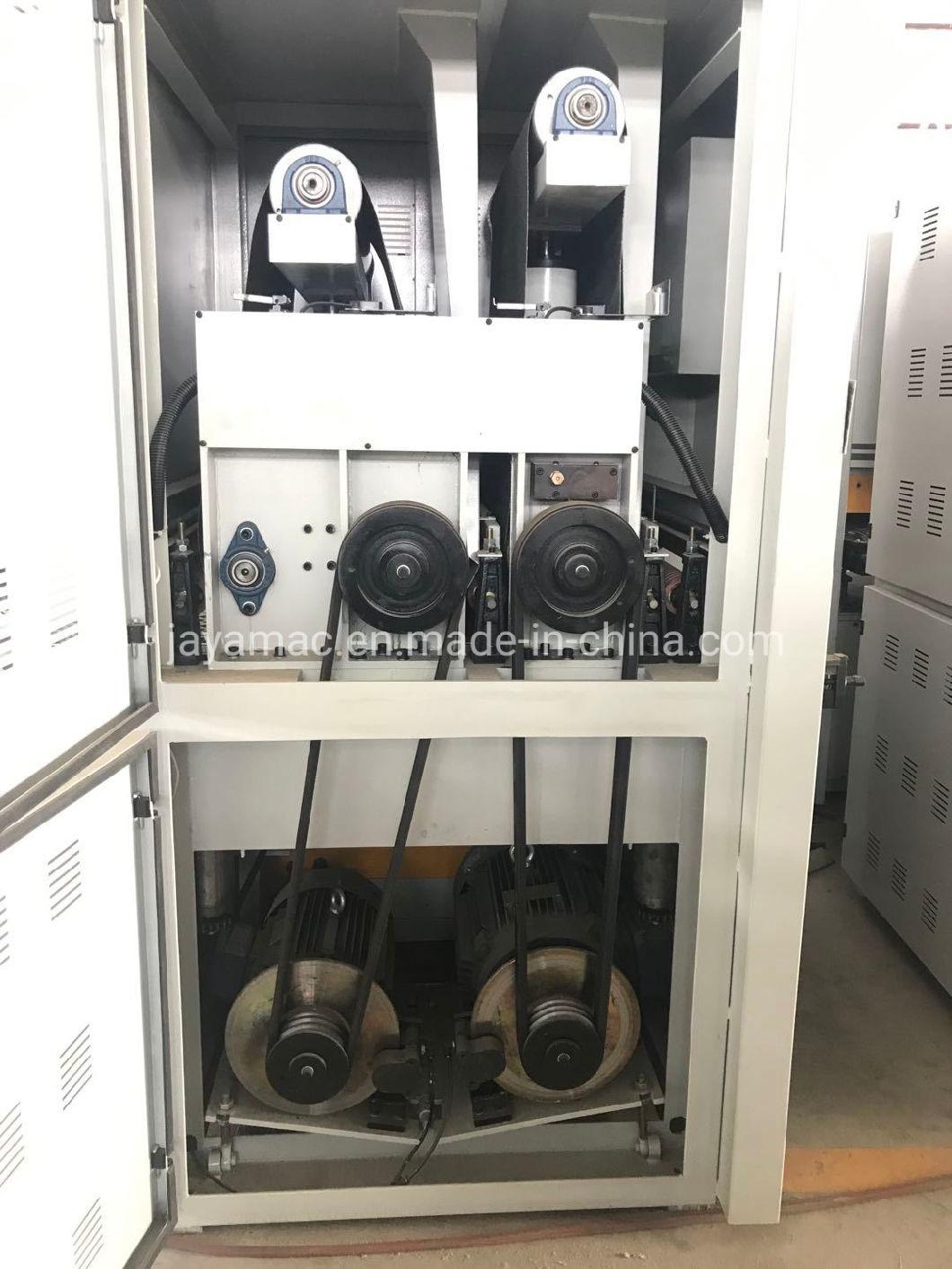

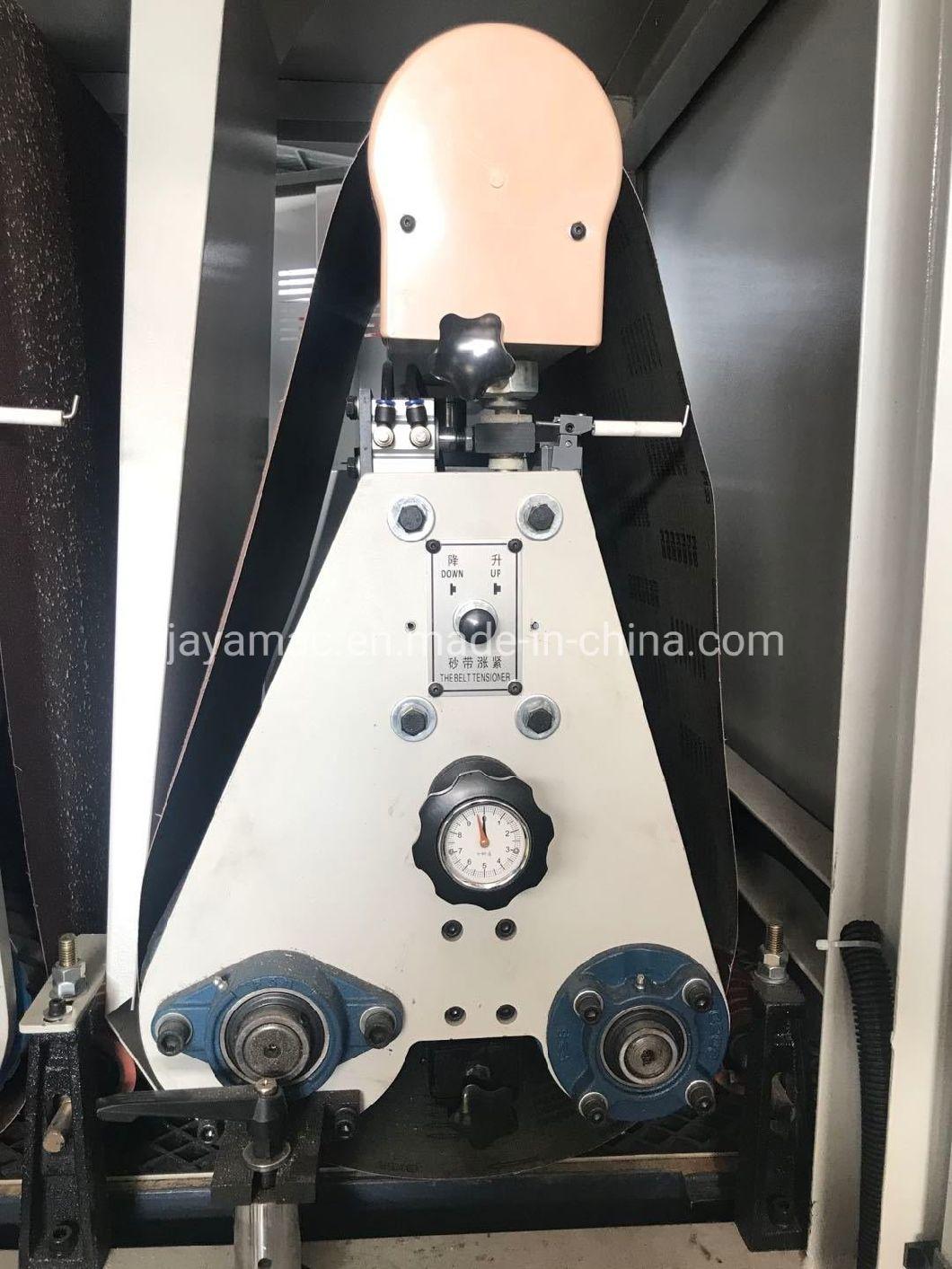

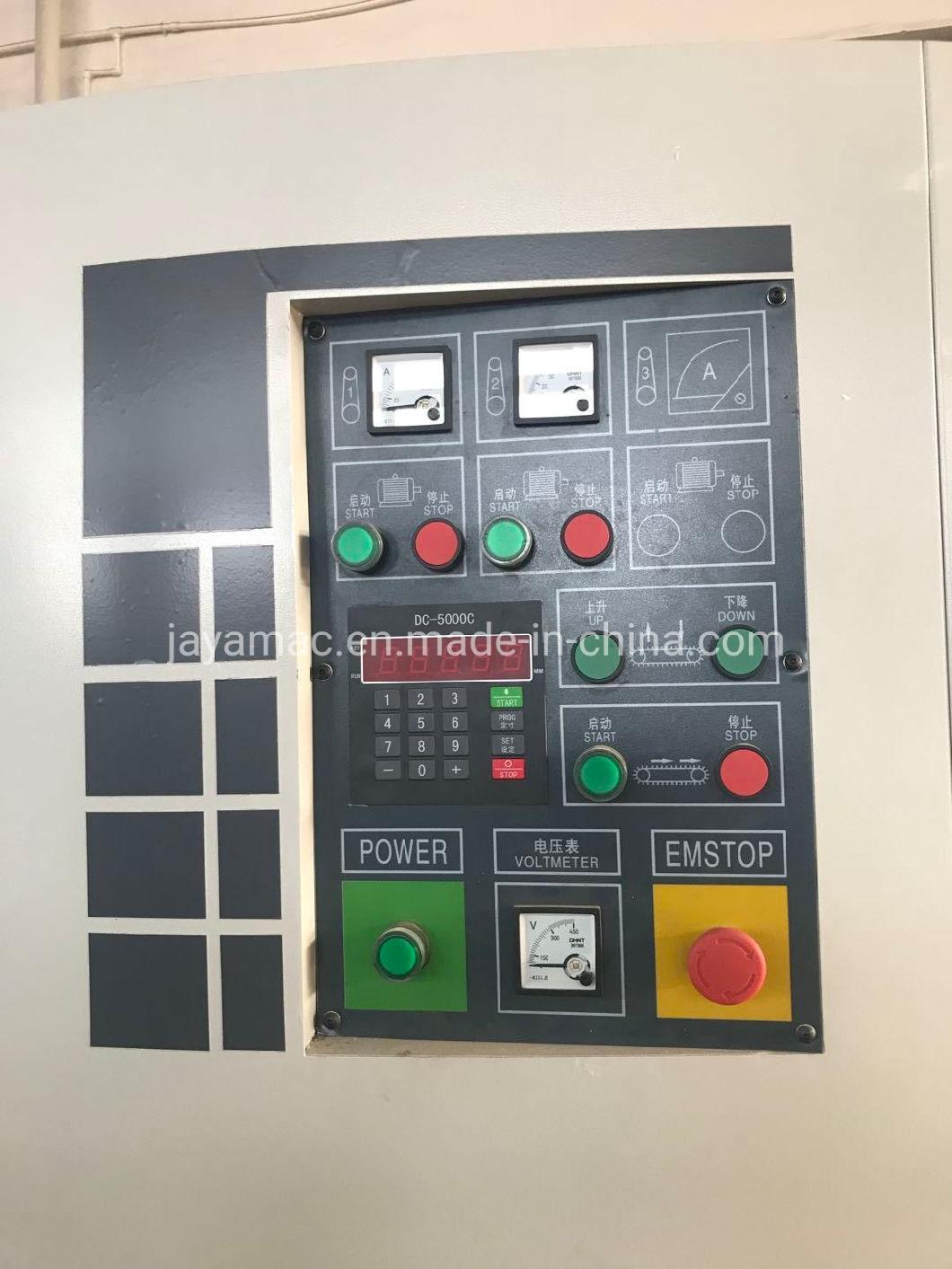

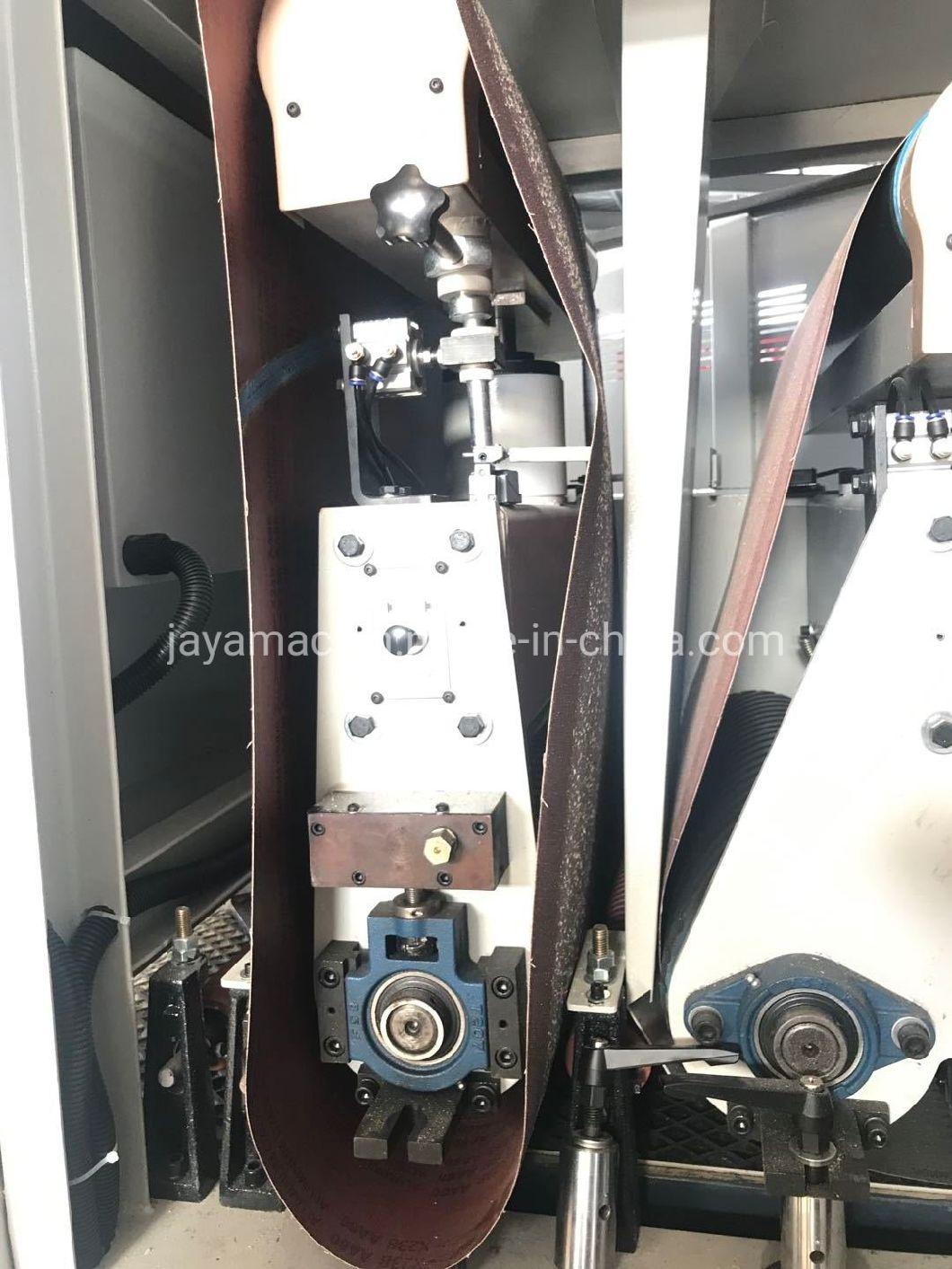

Details Images




Company Profile
 JAYA INTERNATIONAL, has been dealing in woodworking machinery for about 30 years, started from Jaya Trading at the beginning of 1992. In 2008, we made great investment and became the holding company of YanTai Lida woodworking machinery Co.,ltd, which has over 60 years' history of manufacturing all kinds of China-made woodworking machinery since 1960, especially for the MQ & ML series combined woodworking machine, it has the extremely important guiding function in the circle.  During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, panel furniture making machinery ,CNC router, Laser machinery, Plywood making machine and related hardware, ect. Now our machine has got great reputation as the brand ZICAR for woodworking machinery, MATIC for general machinery , HARRIER for CNC/ laser Machinery, PLYTEC for plywood making machine all over the world with the following advantages:

* More than 300 employees, 56 technicians, covering an area of 35000 square meters.

*ISO9001:2000, CE certified, 15 national patents

* One-stop service, meet needs of the customers from individuals to international companies.

*OEM service accepted.

* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.

*Inquiries are typically answered within 8 hours.

* After sale Service: experienced and knowledgeable team of technical support

*annual turnover:USD 20 million

We trust that our experience and intimate knowledge of this line will entitle us to your confidence.

FAQ:

The more you know us, the more you trust us!

1.Our Payment Way?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining

4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
