Wood Wire Brush Machine Wire Drawing Machine for Floor

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:2 Years
  • Type:Wire Brush Machine
  • Automatic Grade:Automatic
  • Variable Speed:Frequency Control
  • Certification:CE, ISO
  • Customized:Customized

Base Info

  • Model NO.:LSJ600,LSJ1300
  • Condition:New
  • Color:Iron Grey
  • After-sales Service:Online ,Video Call ,Email
  • Working Width:600 and 1300mm
  • Spindle Quantity:3.5.6.8etc
  • Max Working Thickness:90mm(110mm 160mm Custom Made)
  • Spindle Diameter:205mm and 250mm
  • Feeding Speed:5-30m,Min
  • Roller Material:Steel ,Nylon
  • Steel Diameter:0.3 0.5 0.8 or Other Required
  • Nylon Grid:180# 240# 320#480# or Other Required
  • Transport Package:Wooden Case
  • Specification:600mm and 1300mm work width
  • Trademark:SOSN
  • Origin:China
  • HS Code:84659300
  • Production Capacity:300set,Month

Description

Basic Info.

Model NO. LSJ600/LSJ1300 Condition New Color Iron Grey After-sales Service Online ,Video Call ,Email Working Width 600 and 1300mm Spindle Quantity 3.5.6.8etc Max Working Thickness 90mm(110mm 160mm Custom Made) Spindle Diameter 205mm and 250mm Feeding Speed 5-30m/Min Roller Material Steel ,Nylon Steel Diameter 0.3 0.5 0.8 or Other Required Nylon Grid 180# 240# 320#480# or Other Required Transport Package Wooden Case Specification 600mm and 1300mm work width Trademark SOSN Origin China HS Code 84659300 Production Capacity 300set/Month

Product Description

door floor veneer panel brush machine wood machine steel wire brush polishing Machine Woodworking machinery machine for patten with CE
wire brush machine for floor .table
Brush Machine texture

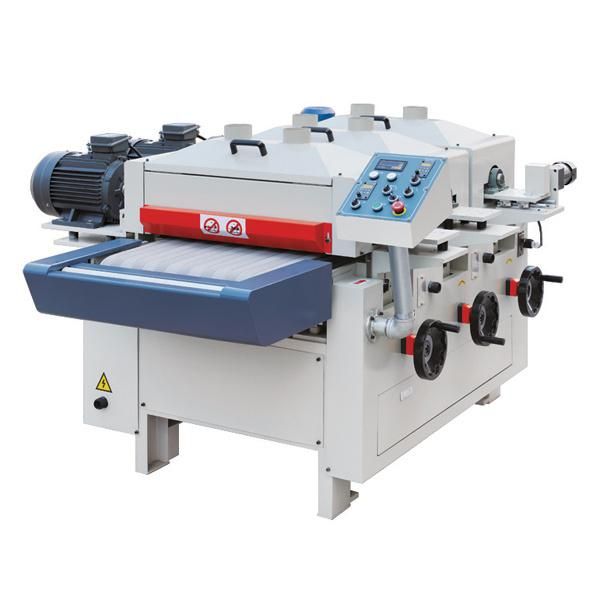

Wood Wire Brush Machine Wire Drawing Machine for Floor
Wood Wire Brush Machine Wire Drawing Machine for Floor

Wood Wire Brush Machine Wire Drawing Machine for Floor
Application:

 The machine is mainly used for solid wood panels, flooring, solid wood panel, brush the surface of groove, wire drawing, natural wood brush, and the wood board, synthetic materials, textures, nap etc..After processing the wood surface has a natural wood grain concavo-convex, main and collateral channels clear, effect of the follow-up processing more prominent.Mainly used for pseudo-classic embossed floor, drawing the floor, furniture board, surface texture and other decorative plate processing; surface wood veneer processing or sheet; threads wood-plastic board synthesize plate surface (straight) processing etc.
Feature:

1. the max working width  :600mm.1300mm,

2.the actual processing thickness:0.3-110(220)mm

3.the spercific function is different,so the configuration is little different

4. The lower supporting roller or belt feeding mode, feed speed can be adjusted

5. Feed table structure of multiple choice, the height can be accurately lifting or remain unchanged
Advantage:

A. This machine is designed  for archaize floor, furniture, table-board, handicraft, the plane surface rivet and special design of a new generation of products, processd by this machine ,the plane surface is skid-free , stereoscopic and beautiful .

B. Conveyor belt /drawing roller/ polishing roller use important motor independent and the feeding use frequency conversion. Which make plate surface effect is better, the machine can be more precise control.

C.Drawing roller ,polishing roller can be easily removed or re-arranged .positioning precision, outfit calculated by using the high accuracy, easy to operate and readings.

D.Disc brush have swing device , board texture 's stereo feeling more apparent. Each group of disc brush can independently up and down..

E.According the different board texture ,the different model deploy different numbers disc brush, drawing rollers, polishing rollers.

steel brush machine for WPC or solid wood

mainly to clean the panel surface.

Configuration :
1.electric device adopted famous brand :"CHINT",OMRON.SIEMENS.etc
2.bearing adopted " NSK "brand .
3.feeding belt brand :AIAI
4.adopted imported polishing wheel and steel wire ,the working effect more better ,
The texture level is obvious, better stereoscopic feeling polishing effect is more better

5.match with imported disc brush and swing device ,high precision electric lifing ,double digital readout to show the thicknesser ,more easy operation .
6,adopted thickening steel plate working table, high precision
7.steel roller and wire roller can control independently,can adjust the rotation direction
of  roller ,more precise for the brush thickness.

8.steel roller adopted the quick change type ,save time ,easy for repairing.
9.adopted independent dust collecting system ,more better dust removal effect,
10.our machine is Energy type ,can save 35% energy per year for customer
Technical parameter:

model LSJ600LSJ1300
working width600mm1300mm
working thickness90mm(110mm)90mm(110mm)
feeding speed 5-30m/min5-30m/min
drawing roller power7.5kw11kw
disc roller power1.1*31.5*4
drawing rollre power 5.5kw7.5kw
polishing roller
polishing roller
feeding power
lifting power
4kw
4kw
2.2kw
0.37kw

7.5kw
5.5kw
4kw
0.75kw

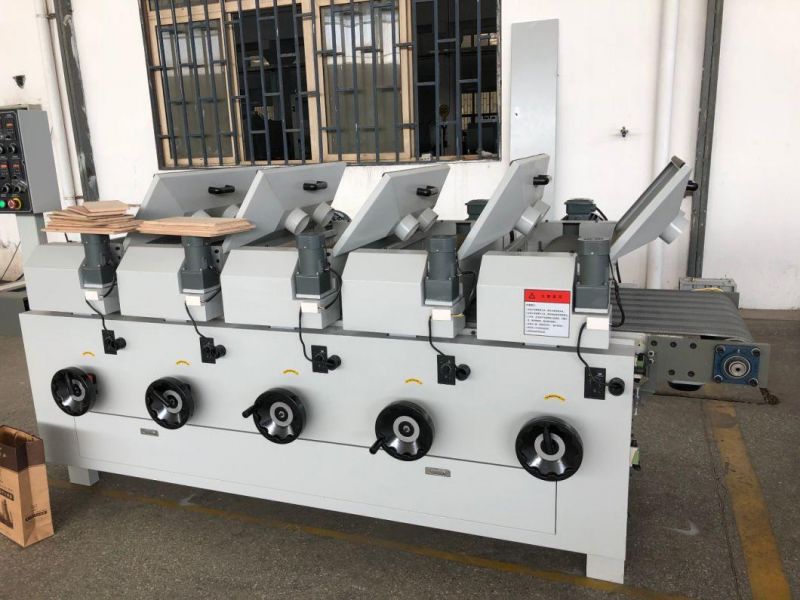

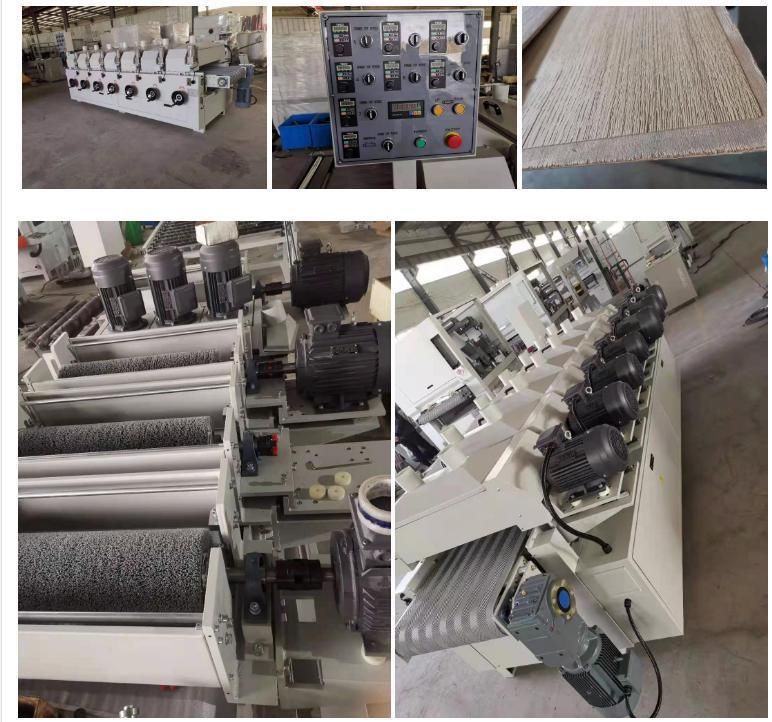

machine pictures :
Wood Wire Brush Machine Wire Drawing Machine for Floor
Wood Wire Brush Machine Wire Drawing Machine for Floor
Wood Wire Brush Machine Wire Drawing Machine for FloorWood Wire Brush Machine Wire Drawing Machine for Floor
Q: How to get the most suitable machine and best price?

A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?


Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.


Q: Can you promise to deliver the machine in time?
A: Yes, we can.


Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.
