• Model NO.：ZS2030
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Processing Precision：0.01~0.02(mm)
• Performance Classification：MID-Range CNC Machine Tools
• Application：Wood, Bamboo, Marble, Organic Board, Color Plates
• Configuration：3kw Water Cooling Spindle
• Transport Package：Plywood Case Package
• Specification：Working Area: 2000*3000*200mm
• Trademark：Mars
• Origin：China
• HS Code：8465990000
• Production Capacity：3000 Sets,Year

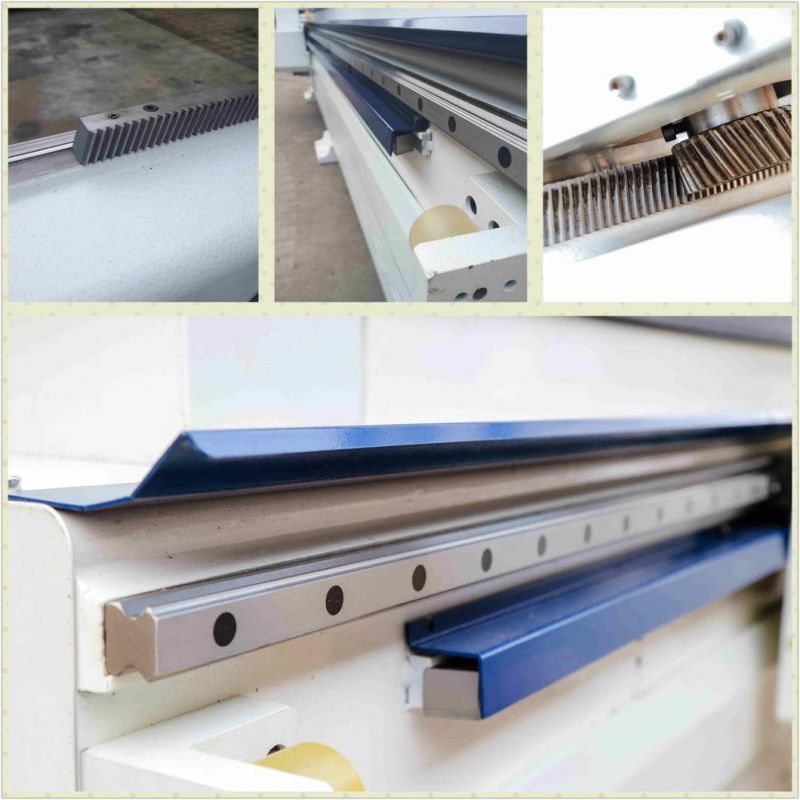

Technical ParameterBasicX/Y/Z Axis Working Area2000*3000*300mmWorking TableWhole line frame structure, firm and not deformationTable StructureT slot table, with hard PVCBody StructureHeavy-duty thicken steel structure with temperingMainControl SystemDSP control systemDrive SystemEasy servo motor with reducerSpindle Motor PowerHQD 4.5kw/6KW air cooling spindle ;0 ~ 24000 rpm/minTraysTrays along with X and Z axis to prevent oil leakageDust Collector3KW standard dust collector, with full accessories including 2 bags, pipes, clamp, brushothersLubrication SystemAutomaticTransmissionXY axis rack and pinion, Z axis ball screwGuide RailTaiwan TBI 25mm square guideInverterTaiwan Delta inverterCableMARS cable, anti-static, anti-interference, bending resistanceBeamReinforced steel beamElectronic ComponentsFrench SchneiderMax Travelling Speed20m/minMax Processing Speed10m/minWorking Accuracy±0.02mmRe-positioning Accuracy±0.05mmDictate FormatG-Code / HPGLWorking VoltageAC380V/ 3PH/ 50HZFeeding Height160mm-250mmTable StructureT-slot aluminumSupport SoftwareProfessional cutting optimization software(JiFusen/Yunxi/Tomder/Haisense)Net Weight1500KG

Accessories:


Performance Features:

Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.34Adopt famous HQD brand frequency water-cooling spindle, great performance, big torque, high efficiency.5Adopt Yako2D68 driver, 450B motor, with faster speed and better stability.6Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..

Samples:


Similar Products:
