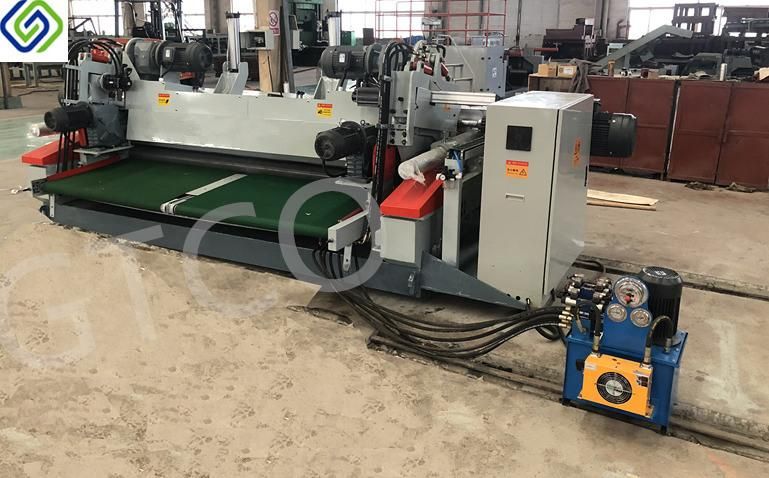

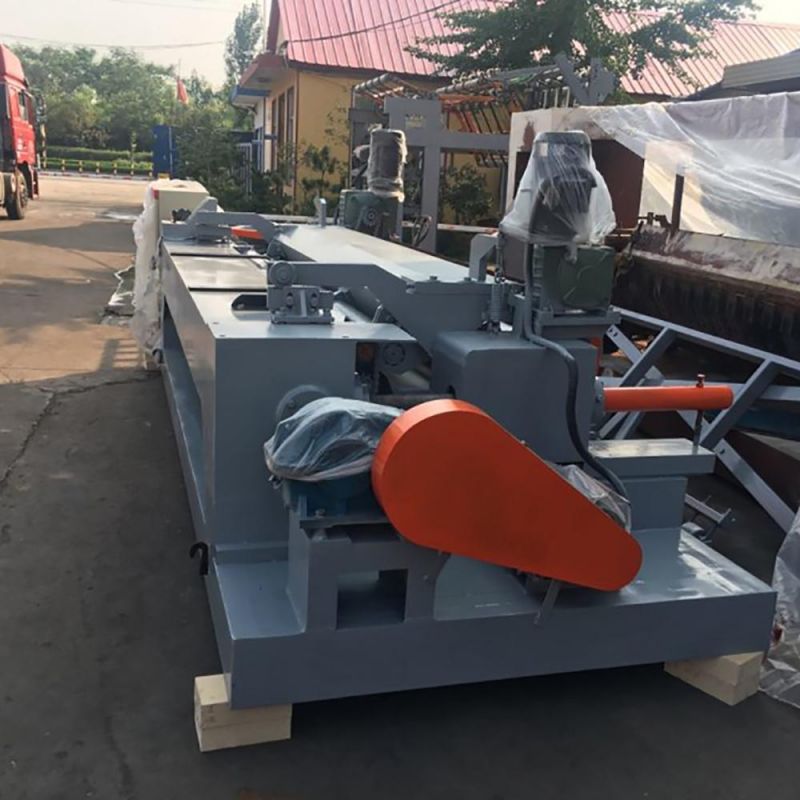

8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine

Linyi Gaotong Import & Export Co., Ltd.
  • After-sales Service：Installation Guide Technical Guidance
  • Warranty：1
  • Type：Plywood Veneer Rotary Production Line
  • Automatic：Automatic
  • Certification：CE
  • Machine Type：Plywood Veneer Production Line

Base Info

  • Model NO.：GTCO
  • Rotary Peeling Veneer Thickness：From 0.5mm to 4mm
  • Driver：Servo Motor
  • Processing Accessory：Centre CNC Lathe
  • Controlling Mode：CNC
  • Model No.：8 Feet Wood Veneer Production Line
  • Wood Logs Length：2700mm
  • Max Log Diameter：700mm
  • Residue Wood Diameter：35mm
  • Speed Adjust System：Yes
  • with Log Centering System：Yes
  • Peeling Machine Power：57kw
  • Hydraulic System：Yes
  • Veneer Stacker：New Model
  • Veneer Thickness：1 to 4mm
  • Transport Package：Standard Export Packing
  • Specification：7m*29m
  • Trademark：GTCO
  • Origin：Shandong, China
  • HS Code：8465960000
  • Production Capacity：30 Sets , Month

Description

Max. working length2600mmWorking diameter range22~700mmMax. working speed70m/minVeneer thickness0.5~4mmDouble rollers motor power11.5kw x 2setsSingle roller motor power11kw x 2setsScrew Feeding motor power11kwRotary clipper motor power4kwRubber belt conveyor motor4kwMachine size6000x2200x1700mmMachine weight8500kgs8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine

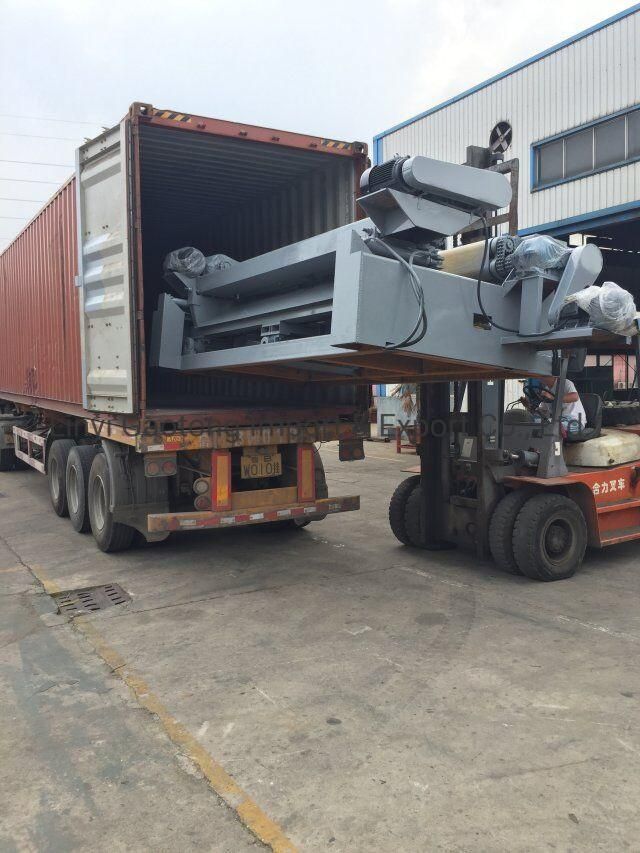

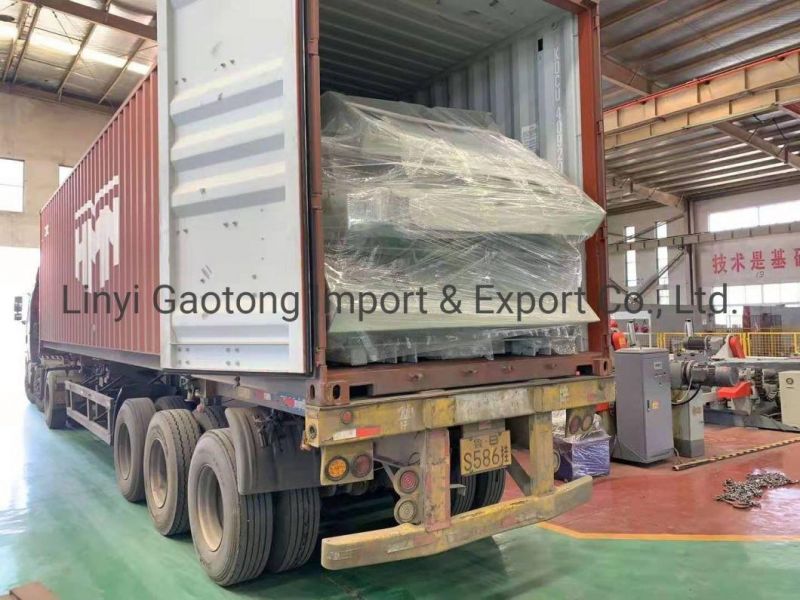

Packing and Shipping:

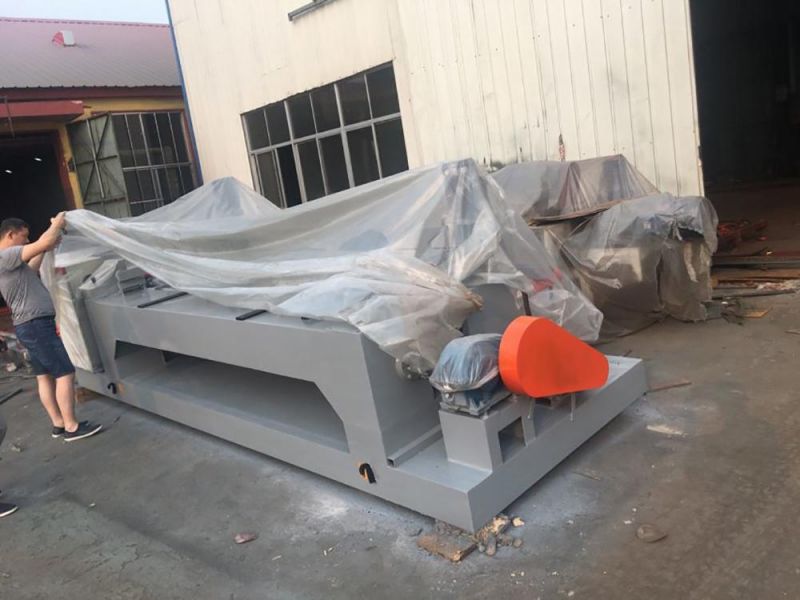

1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.

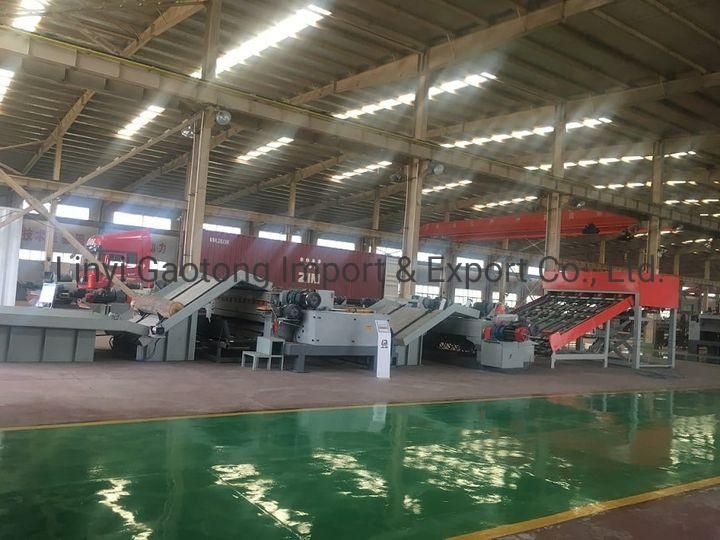

We also supply the whole veneer peeling machine production line.
8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine8FT Spindless Plywood Veneer Peeler Machine Heavey Duty Log Debarker Machine

Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1.Engineers available to service machinery overseas;

2.Warranty: 1year;

3.For the installation, seller will send the drawing for fabrication on site. Seller shall send

engineers to guide installation. Buyer shall supply all the necessary help during

installation. Air tickets and accommodation will be borned by buyer, our engineers should

be paid 100USD per day.
