• Model NO.：MJ328
• Precision：High Precision
• Certification：CE, ISO, TUV
• Customized：Customized
• Condition：New
• Color：Customized
• After-sales Service：Fast Reply All Questions
• Machine Name：Vertical Woodworking Band Saw Machine
• MOQ：1PC
• Working Time：Adjustable
• Power Source：Diesel,Gasoline,Electric
• Function：Wood Sawing
• Wear Part：Blade,Belt,Bearing
• Price：Economical
• Advantage：High Efficiency, Easy to Operate
• Business Type：Manufacturer
• Saw Blades：Band Saw
• Market：Europe,America,Africa,Asia,etc
• Shipping：by Sea
• Transport Package：Wooden Cases
• Specification：SC-3210,SC-329,SC-328,SC-316
• Trademark：SiChuang
• Origin：Xingtai City, Hebei Province, China
• HS Code：8465910000
• Production Capacity：3000pieces,Year

Basic Info.

Model NO. MJ328 Precision High Precision Certification CE, ISO, TUV Customized Customized Condition New Color Customized After-sales Service Fast Reply All Questions Machine Name Vertical Woodworking Band Saw Machine MOQ 1PC Working Time Adjustable Power Source Diesel,Gasoline,Electric Function Wood Sawing Wear Part Blade,Belt,Bearing Price Economical Advantage High Efficiency, Easy to Operate Business Type Manufacturer Saw Blades Band Saw Market Europe,America,Africa,Asia,etc Shipping by Sea Transport Package Wooden Cases Specification SC-3210/SC-329/SC-328/SC-316 Trademark SiChuang Origin Xingtai City, Hebei Province, China HS Code 8465910000 Production Capacity 3000pieces/Year

Product Description

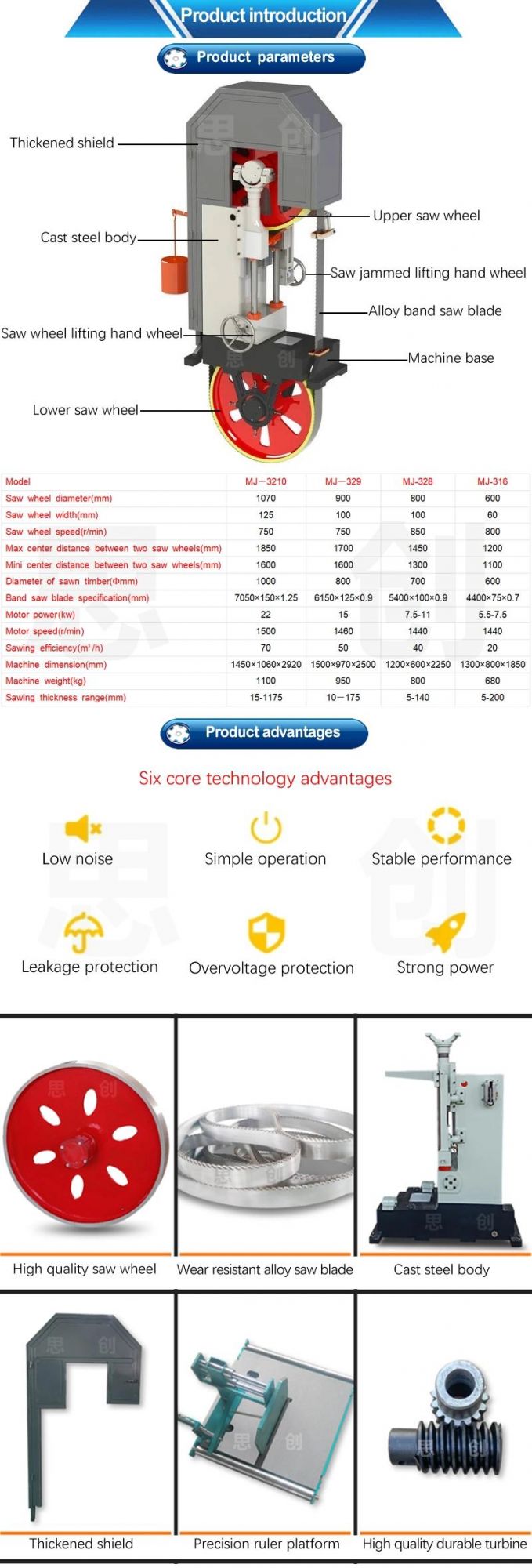

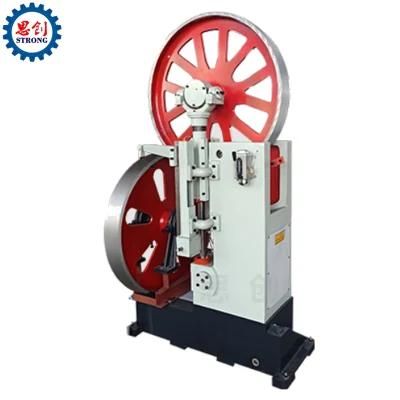

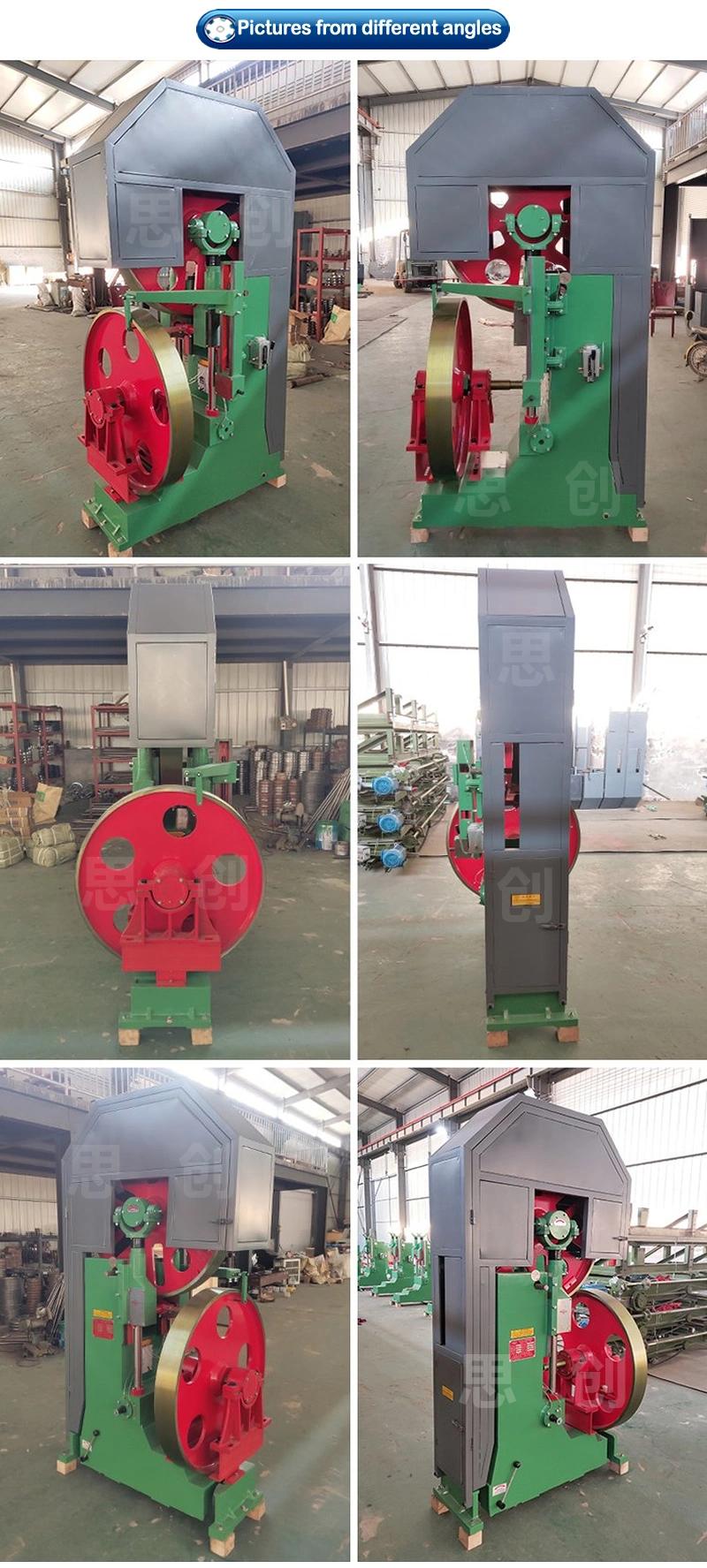

All transmission parts of the vertical woodworking band saw machine adopt sealing structure for easy operation. The base, upper and lower saw wheels and worktable are made of cast iron. Two saw wheels with the same diameter are installed above and below the machine body respectively, and the upper saw wheel can be adjusted up and down to facilitate loading and unloading the saw blade and adjust the tension of the saw blade. The lower saw wheel is a driving wheel, which is driven by a belt pulley. In order to reduce the wear and noise of saw blade and saw wheel, a layer of belt is wound around the wheel edge of saw wheel. The worktable is directly installed on the machine body, and there is a gap in the middle as the path of the saw blade. In order to prevent the saw blade from swinging left and right during sawing, a saw clip is installed under and above the worktable, the lower saw card is directly installed under the worktable, and the upper saw card is installed on the machine body and can move up and down. There is a pulley behind the upper saw card. When the saw blade runs backward, it plays a restrictive role and does not cause the saw blade to fall. The machine tool adopts the method of centralized discharge of saw dust to clean the working place.

Model	SC-3210	SC-329	SC-328	SC-316
Saw wheel diameter(mm)	1070	900	800	600
Saw wheel width(mm)	125	100	100	60
Saw wheel speed(r/min)	750	750	850	800
Max center distance between two saw wheels(mm)	1850	1700	1450	1200
Mini center distance between two saw wheels(mm)	1600	1600	1300	1100
Diameter of sawn timber(Φmm)	1000	800	700	600
Band saw blade specification(mm)	7050×150×1.25	6150×125×0.9	5400×100×0.9	4400×75×0.7
Motor power(kw)	22	15	7.5-11	5.5-7.5
Motor speed(r/min)	1500	1460	1440	1440
Sawing efficiency(m³/h)	70	50	40	20
Machine dimension(mm)	1450×1060×2920	1500×970×2500	1200×600×2250	1300×800×1850
Machine weight(kg)	1100	950	800	680
Sawing thickness range(mm)	15-1175	10-175	5-140	5-200

FAQ

1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.

2.Are you a trading company or a factory?
Xingtai Sichuang Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. we have specialized in we have specialized in crane&winch over 10 years, our high quality products were welcomed in many countries.

3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.

4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film

5. What's the delivery time?
Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity, it depends.

6. Questions before quotation?
Capacity? Lifting height? Voltage? Quantity? The more details the more accurate price quotation. Thank you.

7.what about our winches features?
1, Compact structure and reasonable design
2, Easy to install, operate and maintenance
3, Low noise and good working condition
4, Three-phase power supply, suitable for a wide range of applications
5, Simple structure, easy to identify the cause of the failure, easy to repair and maintain
