• Model NO.：M521A
• Motor Power：34.6 kw
• Cutter Shaft：8
• Spindle Speed：6800 r,min
• Process Type：Heavy Processing
• Certification：CE, ISO
• After-sales Service：Online Support

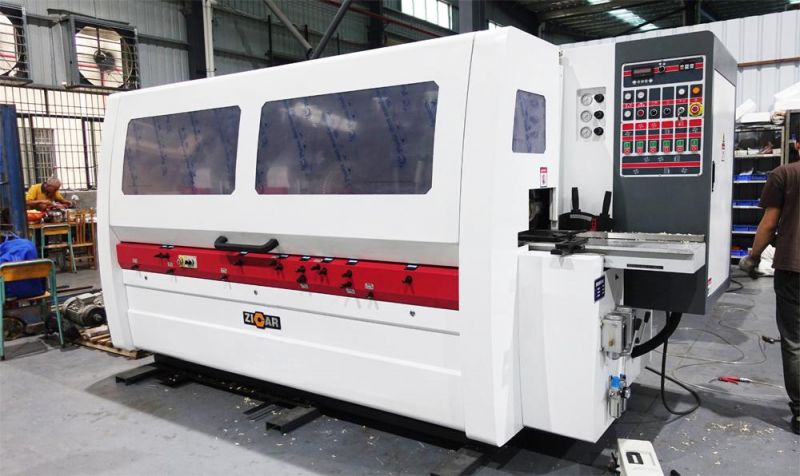

• Product：Four-side planer
• Model：M521A
• Max.working width：210mm
• Min. working width：25mm
• Max. working thickness：120 mm
• Min. working thickness：8mm
• Feeding speed：10-40m,min
• Main shaft diameter：1800mm
• Spindle diameter：40mm
• Pneumatic source pressure：0.6Mpa
• Feeding motor：4kw
• General motor：34.6kw
• Overall size：4100x1630x1750mm
• Weight：3200kg
• Transport Package：Stretch Film (Standard)
• Specification：3200kg
• Trademark：ZICAR
• Origin：China
• HS Code：465920000
• Production Capacity：500

Detailed Photos

Product Display

Product Parameters

Certifications

Company Profile

FAQ

 1.Our Payment Way?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.

4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
