• Model NO.：LSW1325ATC
• Controller：DSP A11
• Work Table：Vacuum Table with T Slot
• Transmit Way：Gear Wheel
• Feeding Height：200mm
• Spindle Speed：0.24000rpm
• Guide Rail：Linear Guide Rail
• Cooling Way：Water Cooling
• Command：G Code
• Cutter Diameter：2.175-12.7mm
• Max Speed：35mm,M
• Auto Tool Sensor：Yes
• Vacuum Pump：7.5kw
• Package：Plywood Box
• Transport Package：Plywood Box
• Specification：Work size 1300*2500mm
• Trademark：Lansen
• Origin：China
• HS Code：8465990000
• Production Capacity：800 Sets,Year

LANSEN CNC Woodworking CNC Router

Model

LSW325

Brand

LANSEN

X,Y Worksize

1300x2500mm (Can Be Customized According to YourRequirement)

Z-axis Worksize

200mm

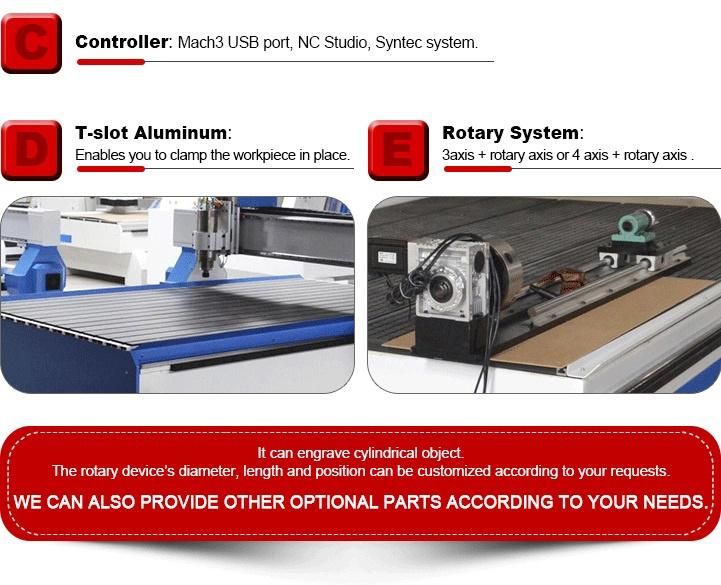

Control System

DSP (Mach3 USB, NC Studio, Syntec, etc Optional)

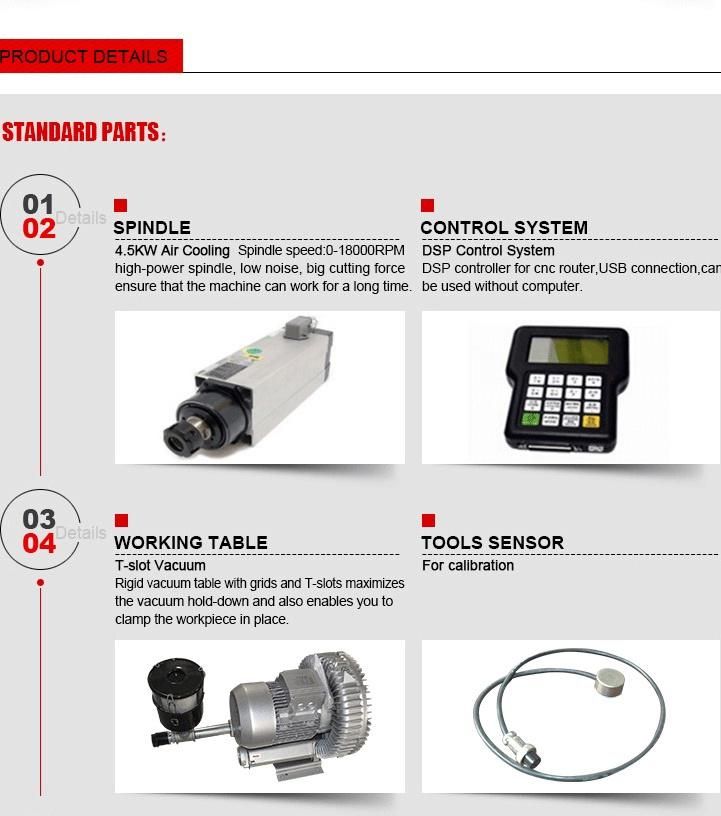

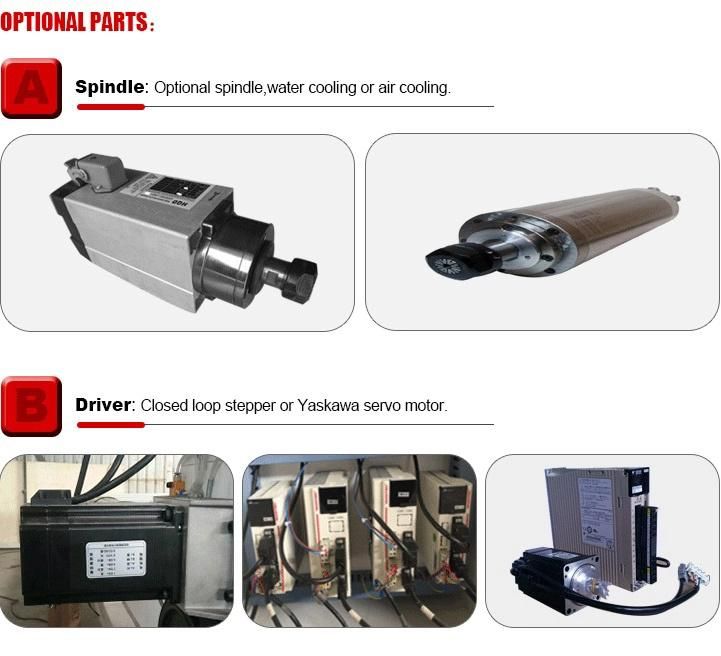

Spindle Power

4.5KW Air Cooling (0-18000rpm)  (Water Cooling and Higher Power Optional)

Table

T-slot aluminum / T-slot Vacuum (Optional)

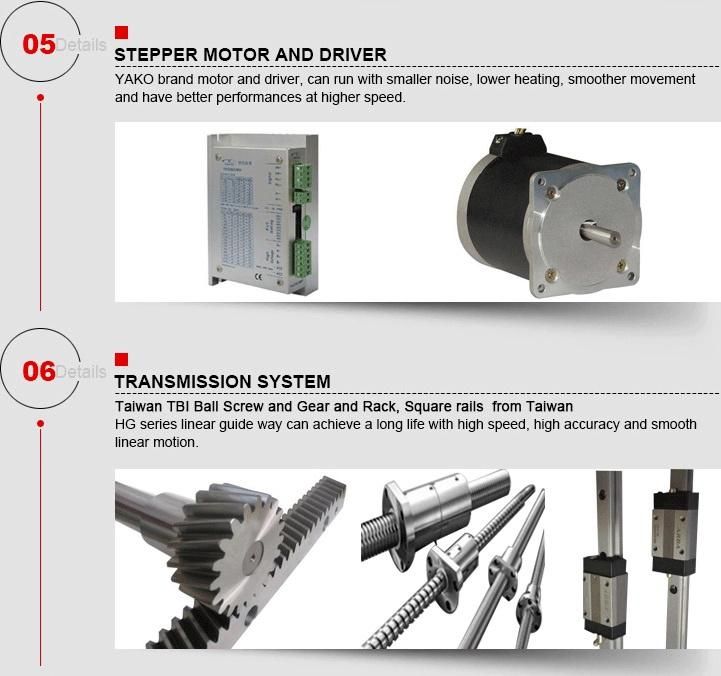

Drive Motor

Stepper (China Easy Servo and Yaskawa Servo Optional)

Rail Guide

Square rails  from Taiwan

Transmit

XY Gear Rack and  Z Ballscrew

Working Speed

0-15000mm/min

Command Code

HPGL, G code

Working Precision

0.05mm

Working Voltage

AC220V±10% / 50~60HZ, 380V/50-60HZ, 3 PHASE

Compatible Software

Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V10 etc

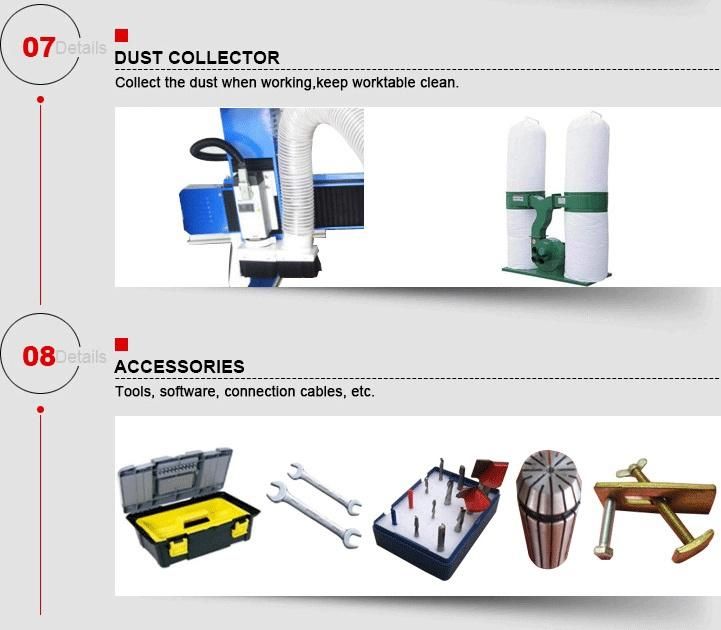

Dust Collector

With

Machine Size

348cm*210cm*162cm

Package Size

368cm*228cm*186cm

Net Weight

1380KGS

Gross Weight

1550KGS

Machine details:








FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo VideoMore information, welcome to refer to us
