High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery

Shandong Lintianzhiyuan CNC Equipment Co., Ltd.
  • After-sales Service：Available
  • Warranty：2 Years
  • Condition：New
  • Certification：ISO, CE
  • CNC or Not：CNC
  • Voltage：110V,220V

Base Info

  • Model NO.：4040 6060 6090 6012 9012 9015 1212 1218 1224 1325
  • Working Area：600X900mm
  • Max. Feeding Height of Z Axis：200mm
  • Table Type：Aluminum T-Slot Table with PVC
  • Guide Rail：Round Guide Rail
  • Transmission：X, Y, Z Axis by Tbi Ball Screw
  • Motor and Driver：Stepper
  • Spindle：1.5kw Water Cooling Spindle
  • Collet：Er16
  • Control System：Nc Studio,Mach3 with USB
  • Inverter：Fuling
  • Model：6090,6012,1212,1224
  • Transport Package：Plywood Case with Water-Proof Material
  • Specification：1600x1300x1730mm
  • Trademark：LINTCNC
  • Origin：China
  • HS Code：8465990000
  • Production Capacity：300 Pieces,Month

Description

Overview

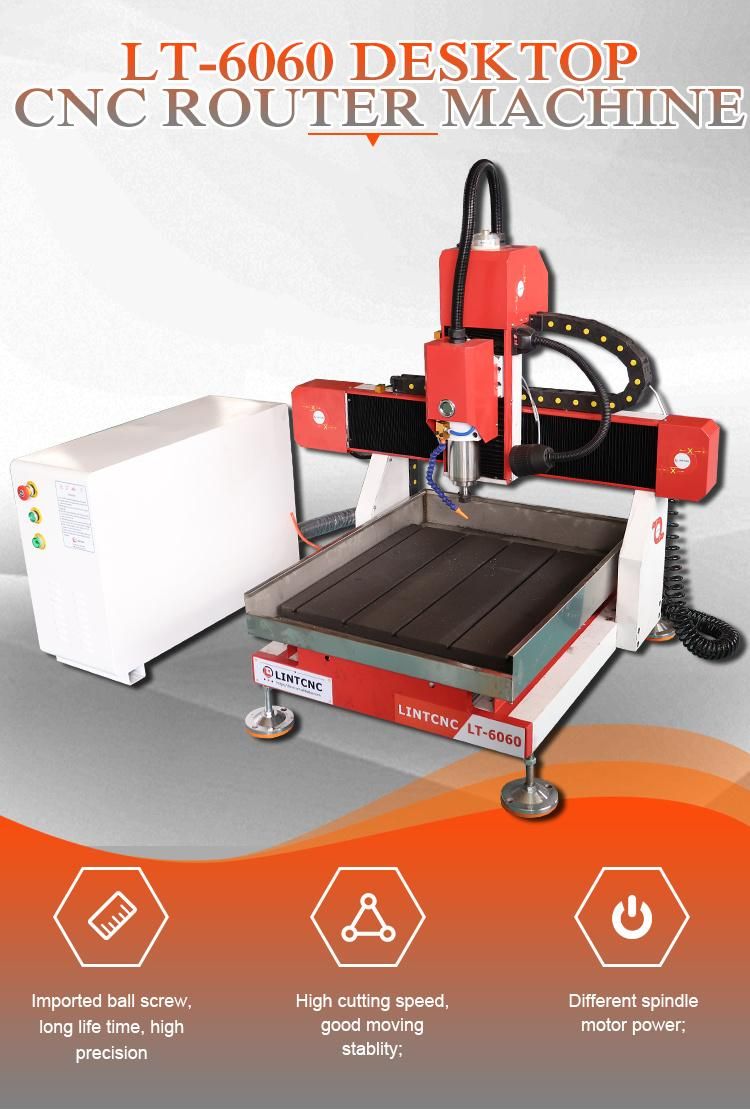

Product Description



High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machineryHigh Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery
High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery

1). Working area: 600*600*200mm Aluminum T-slot table with PVC;

2). Machine structure Cast-iron structure;

3). Guide rail: Round guide rail;

4). Driving method: Taiwan TBI Ball screw for X,Y,Z axis;

5). Spindle: 1.5KW water cooling spindle(ER16)

6). Motors and drivers: 86BYG-450B stepper motors and MA860H Leadshine Driver;

7). Control system: Mach 3 control system with USB

8). Software: Artcam;

9). Tool box;

10). Tool sensor;

Packing details: one plywood case with water-proof materials; 1600mm*1300mm*1730 mm; 400KGS ;

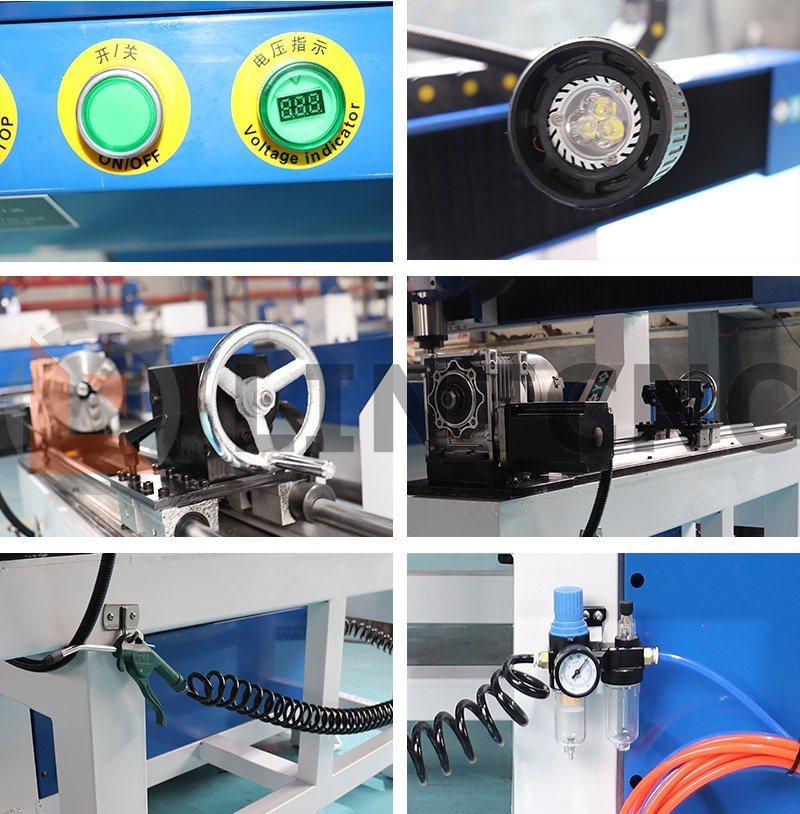

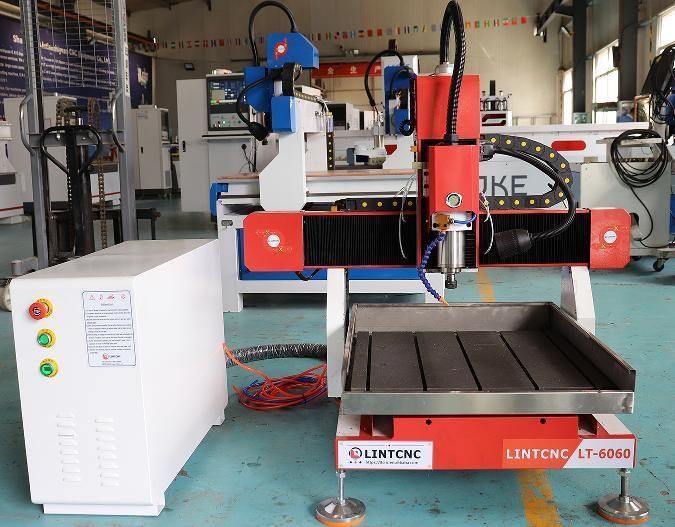

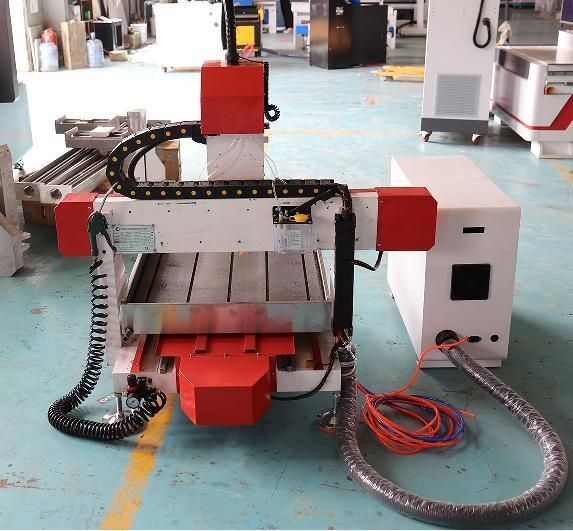

Detailed Photos

High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery

Packaging & Shipping

High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery

Feedback

High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery

Company Profile

High Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machineryHigh Precision All Cast Iron Metal Stone Jewelry Mould Machine CNC Router 4040 6040 6060 6090 machinery


FAQ

1) This is the first time I use this kind of machine, is it easy operate?


There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
