Complete Wood Pellet Production Line Agriculture Stalk Biomass Pellet Making

Jinan Shanghangda Machinery Co., Ltd.
  • Type：Flat Die Platen Wheel
  • Voltage：380V
  • Automatic Grade：Automatic
  • Controlling Mode：CNC
  • Energy Saving：Energy Saving
  • Certification：CE, ISO

Base Info

  • Model NO.：SHD560, SHD760, SHD850
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Multi Color
  • After-sales Service：Engineers Guide Installation and Commissioning on
  • Transport Package：40-Foot Hq
  • Specification：2.5M*2.5M*2.5M
  • Trademark：SHD
  • Origin：China
  • HS Code：8479300000
  • Production Capacity：1000set,Year

Description

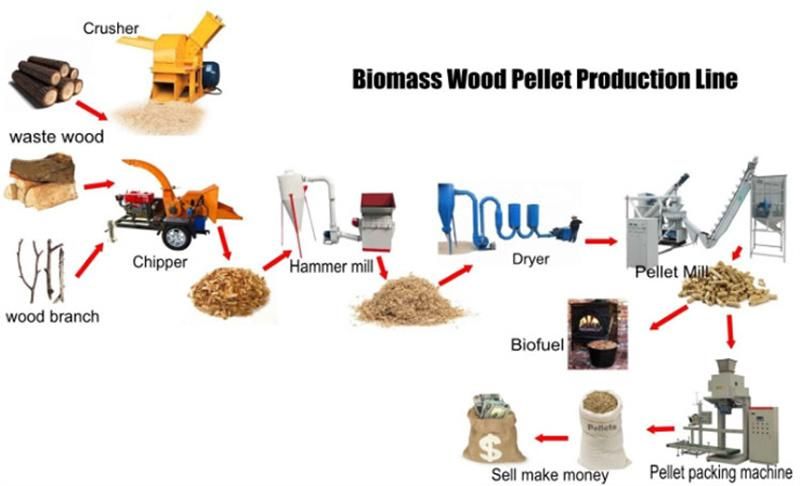

ModelCapacityPellet diameter(mm)power(kw)weight(t)size(mm)SHD5601-1.54-12mm90/1326.12600*1300*2300SHD7602-2.54-12mm1607.52900*1300*2400SHD8502.5-3.54-12mm20014.53300*1400*3100Complete Wood Pellet Production Line Agriculture Stalk Biomass Pellet MakingHow to make wood pellets by wood pellet mill:
1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller.
2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 12-15%, which is the best moisture content for pelletizing.
3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material.
4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler.
Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures, pellets can be packed with a pellet packing machine.

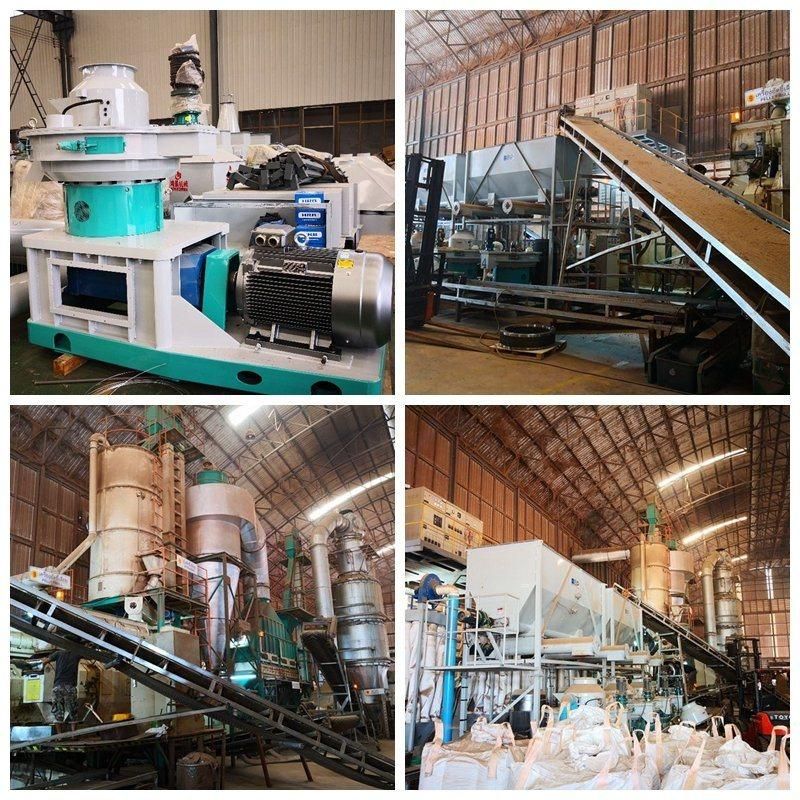

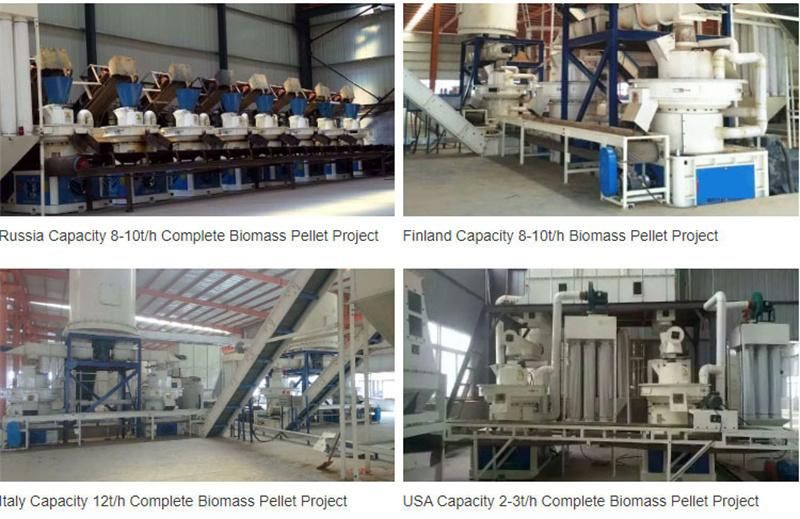

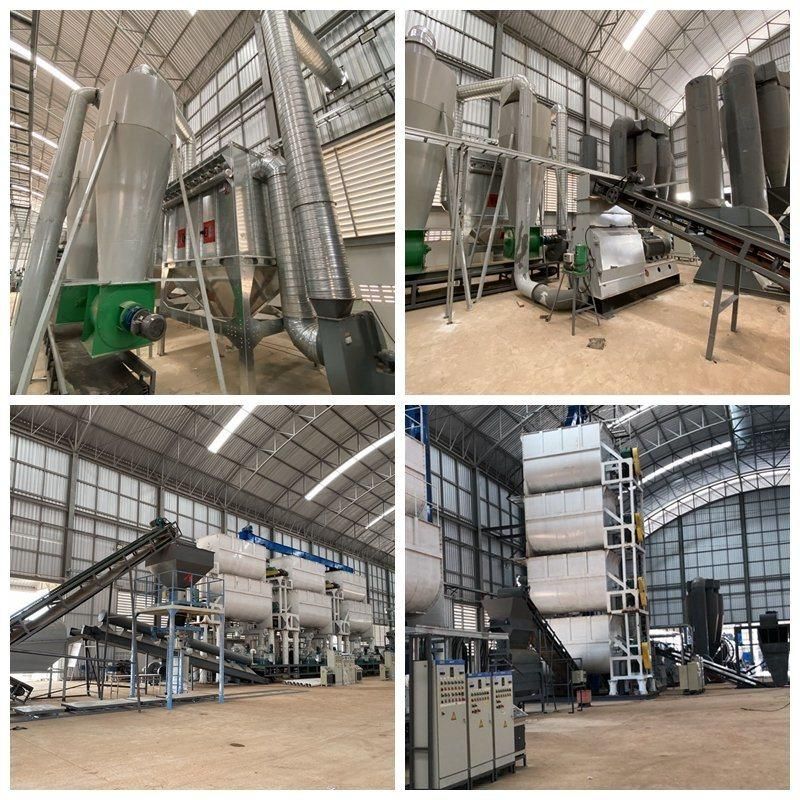

Complete Wood Pellet Production Line Agriculture Stalk Biomass Pellet MakingCustomer cases:
Complete Wood Pellet Production Line Agriculture Stalk Biomass Pellet MakingComplete Wood Pellet Production Line Agriculture Stalk Biomass Pellet MakingComplete Wood Pellet Production Line Agriculture Stalk Biomass Pellet MakingNotice:All models can be customized according to customer needs.
