Woodworking Machinery

automatic linear woodworking through feed multifunction 45 degree angle edge banding machine for wood

JAYA INTERNATIONAL CO., LTD.
  • Warranty:one year
  • Function:Pre Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Scraping, Buffing, Corner Trimming
  • Type:Straight Line
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:20m,min

Base Info

  • Model NO.:MF50F
  • Certification:CE, ISO
  • Panel Thinkness:10-60mm
  • Min.length panel:120mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • After-sales Service:Online support
  • Panel Width:≥80mm
  • Panel Thickness:10-60mm
  • Edge Thickness:0.4-3mm
  • Feeding Speed:12-20m,min
  • Working pressure:0.6MPa
  • Motor Power:16.5kw
  • Machine size:6600X1000X1600mm
  • Net weight:2450kg
  • Transport Package:Stretch Film
  • Specification:6600x1000x1600mm
  • Trademark:ZICAR
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:500

Description

Overview

Product Parameters



Features



Detailed Photos

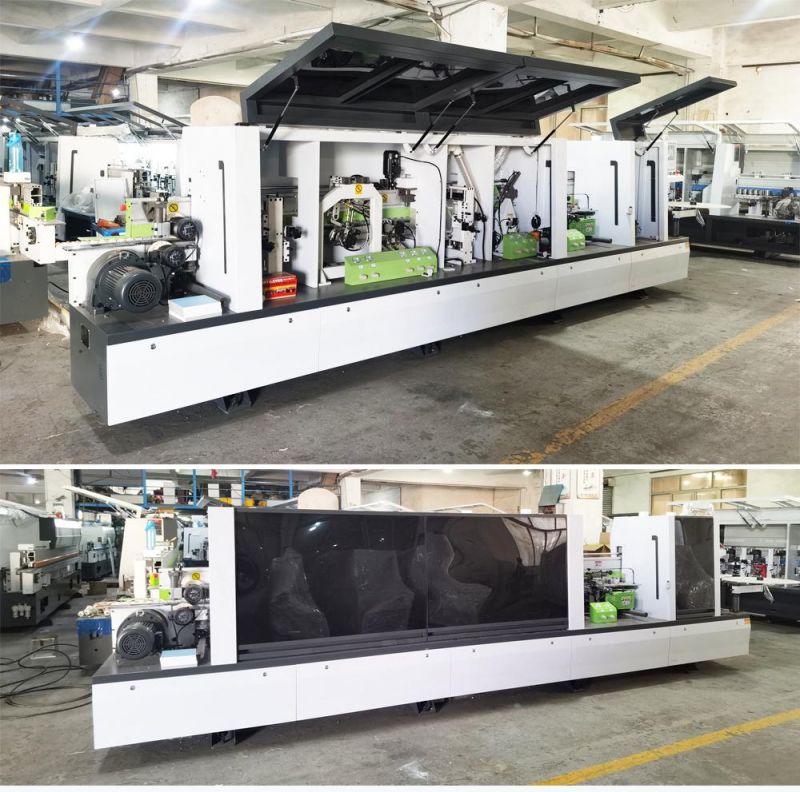

 Physical display



automatic linear woodworking through feed multifunction 45 degree angle edge banding machine for wood

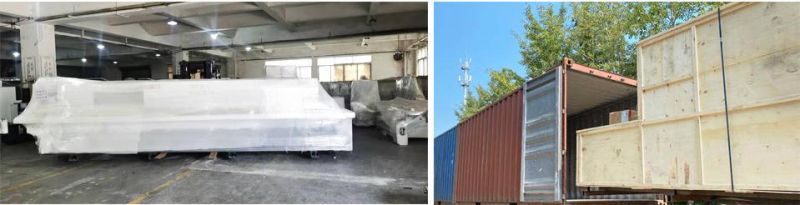

Packaging & Shipping

automatic linear woodworking through feed multifunction 45 degree angle edge banding machine for wood

Certifications

automatic linear woodworking through feed multifunction 45 degree angle edge banding machine for wood



Company Profile

automatic linear woodworking through feed multifunction 45 degree angle edge banding machine for wood

FAQ

1.Our Payment term?
L/C and T/T or other ways.

2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.

3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining

4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
