• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：24hours
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75,90
• Pellet Size(mm)：6-8
• Power of Screw Feeder(Kw)：3
• Power of Force Feeder(Kw)：1.5
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service 24hours Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

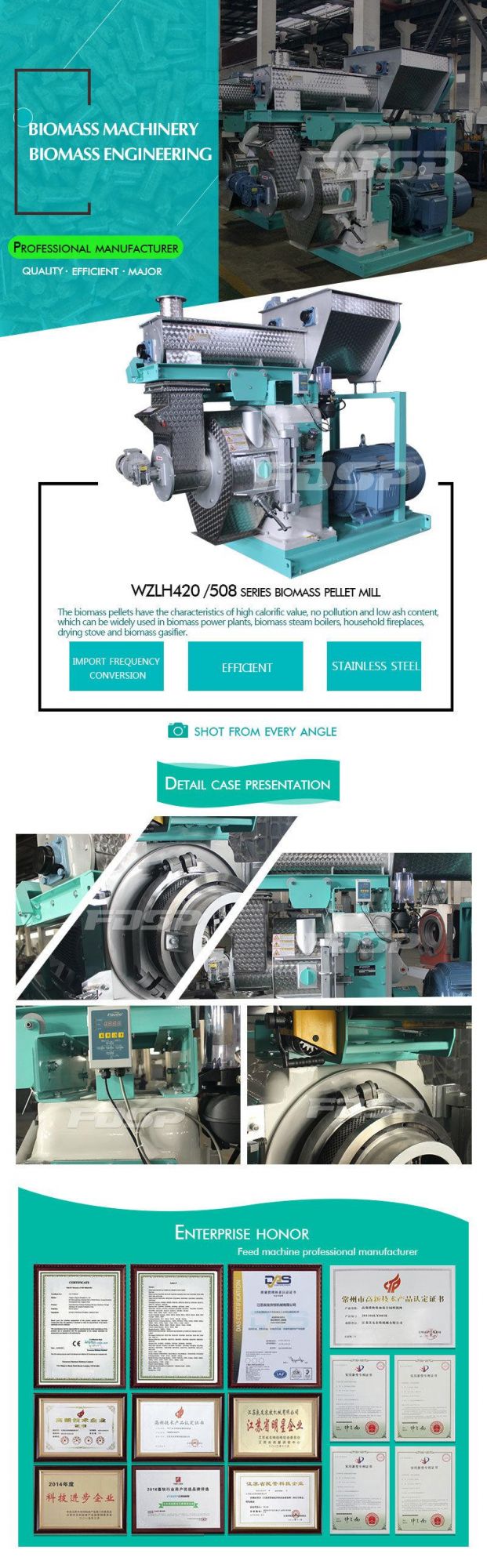

Biomass Burning Sawdust Pellet Machine Granulator for wood sawdust
1. It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;

2. The feeder's especial structure
Makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;

3. Feeder, conditioner and chute
Are made of stainless steel with long service life;

4. It is with magnet and over load protection system, which protects the machine during production;

5. Feeder
Has a variable speed controller to meet different outputs requirements;

6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;

7. The bearing and oil seal in the main drive
Are imported from Japan to ensure highly-efficient, stability and high quality;

8. The alloy steel die
Is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality.

9. The Lubrication System
Is made up of the tracing and inspecting system controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.

Performance Parameter

Model	WZLH420	WZLH508	WZLH680
Capacity(T/H)	0.8-1.2	1.5-1.8	2-2.5
Main motor power(kw)	75/90	110/132	160/185
Feeder power(kw)	2.2	3	4
Ring die dia(mm)	420	520	680
Pellets dia(mm)	6-8	6-8	6-8

Ring die wood pellet mill is the most important process in the wood pellet production line.
It is widely used in compacting of wood, straw, other biomass sources into pellet.
Capacity ranges from 1T to 10T per hour.
Our wood pellet mill adopt SKF bearings from Sweden, the main motor is from Siemens, high quality components make the pellet mill more efficient and durable.
