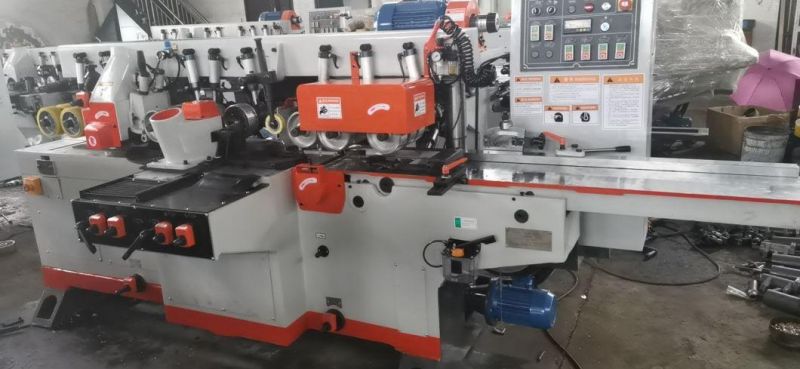

Woodworking High Heavy Planer Moulder Four Side Moulder for Wood Floor

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：2 Year
  • Type：Four-Side Planer
  • Working Depth：10-120mm
  • Working Width：10-125
  • Drivetrain：Worktable Elevating Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：MB4023DR
  • Motor Power：23.95kw
  • Cutter Shaft：4
  • Spindle Speed：6000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Model：MB4023dr
  • Total Power：23.95kw
  • Processing Width：20-230mm
  • Processing Thickness：10-125mm
  • Using：Woodworking
  • Product：Wood Floor, Door Frame
  • Voltage：380V Can Customer Made
  • Place of Origin：Qingdao, Shangdong Province
  • Transport Package：Strength Film Package
  • Specification：2700kg
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659200
  • Production Capacity：300sets,Month

Description

Basic Info.

Model NO. MB4023DR Motor Power 23.95kw Cutter Shaft 4 Spindle Speed 6000rpm Process Type Heavy Processing Certification CE, ISO Model MB4023dr Total Power 23.95kw Processing Width 20-230mm Processing Thickness 10-125mm Using Woodworking Product Wood Floor, Door Frame Voltage 380V Can Customer Made Place of Origin Qingdao, Shangdong Province Transport Package Strength Film Package Specification 2700kg Trademark SOSN Origin China HS Code 84659200 Production Capacity 300sets/Month

Product Description

woodworking high heavy planer moulder four side moulder for wood floor
Woodworking High Heavy Planer Moulder Four Side Moulder for Wood Floor
Woodworking High Heavy Planer Moulder Four Side Moulder for Wood Floor
Main technical parameter:
Technical parameterMB4023DR
Working width20-230mm
Working thickness10-125mm
Feeding speed 5-20m/min
Feeding power2.2 kw
Knife speed6000r/min
Lower horizontal shaft power4 kw
Upper horizontal shaft power7.5kw
Power of left and right vertical shafts5.5~4 kw
Cross beam lifting and lowering power0.75kw
Total power23.95kw
Max. Blade mounting dia.145mm
Pressure of air supply source0.3-0.4Mpa
Overall dimension 3000x1600x1600mm
Total weight 2700kg
Woodworking High Heavy Planer Moulder Four Side Moulder for Wood FloorWoodworking High Heavy Planer Moulder Four Side Moulder for Wood FloorWoodworking High Heavy Planer Moulder Four Side Moulder for Wood Floor
Feature:
1. Stable performance of 30 m / min speed from system, and can be 5-20 meter of stepless speed regulation, effectively improves the production efficiency.

2.Feeding wheel adopts a cylinder pressing type feeding, can be individually adjusted feed wheel pressure, feed more smoothly.

3.With bearing of high speed spindle, more effectively improve the cutting workpiece smooth.

4. Bench with actively feeding system, feeding smooth and powerful.

Woodworking High Heavy Planer Moulder Four Side Moulder for Wood Floor

Note1. This price is based on voltage 380v,50hz,3ph2.Warranty : 1YEARS.3.Payment terms: 30% deposit by TT , 70% before ship by TT.4.Package : strength film package 5.Delivery time: 20 work days after recive deposit.6.MOQ : 1 set.
Should you have any need of the machine ,please feel free to contact with me
