• Model NO.：HC204S-K
• Certification：CE, ISO
• Name：Double Side Planer
• Working Thickness：10-170mm
• Min. Working Length：310mm
• Feeding Speed：5.3-20m,Min
• Spindle Diameter：90mm
• Total Power：14.25kw
• Weight：2500kg
• Lifting Motor Power：0.75kw
• Voltage：380V 50Hz 3phase
• Cutter Type：Spiral Cutter
• Transport Package：Standard Packing or Packing According to Customer
• Specification：2520*920*1780mm
• Trademark：HICAS
• Origin：Qingdao

Basic Info.

Model NO. HC204S-K Certification CE, ISO Name Double Side Planer Working Thickness 10-170mm Min. Working Length 310mm Feeding Speed 5.3-20m/Min Spindle Diameter 90mm Total Power 14.25kw Weight 2500kg Lifting Motor Power 0.75kw Voltage 380V 50Hz 3phase Cutter Type Spiral Cutter Transport Package Standard Packing or Packing According to Customer Specification 2520*920*1780mm Trademark HICAS Origin Qingdao

Product Description

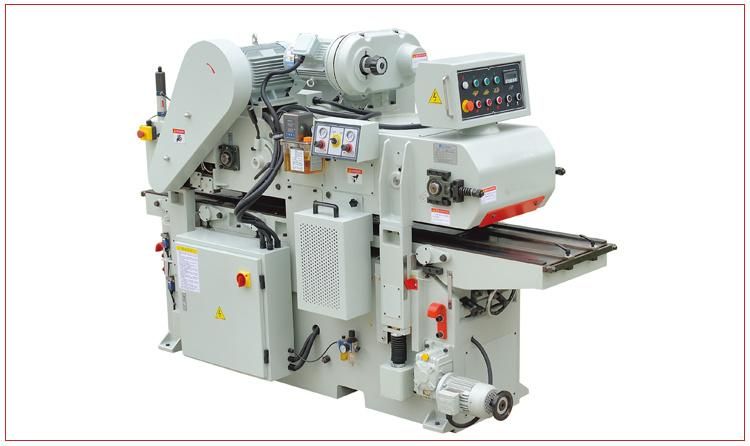

Furniture Machinery Wood Double Side Thickness Planer
Description:
204S design for short material, and with CNC auto thickness measure system.

Model	204S-K
Working width	40-405mm
Working thickness	10-170
Min. working length	100mm
Max. Planning off thickness (Upper cutter)	5mm
Max. Planning off thickness (Bottom cutter)	3
Cutter knife	3pcs
Spindle speed	5800rpm
Feeding speed	5.3-20m/min
Spindle diameter	90mm
Top spindle power	7.5
Bottom spindle power	4kw
Feeding motor power	2.2kw
Lifting motor power	0.75kw
Total power	14.25kw
Voltage	380v 50hz 3phase
Dust port diameter	2pc 150mm
Machine dimension	2520*920*1780mm
Machine weight	2500kg

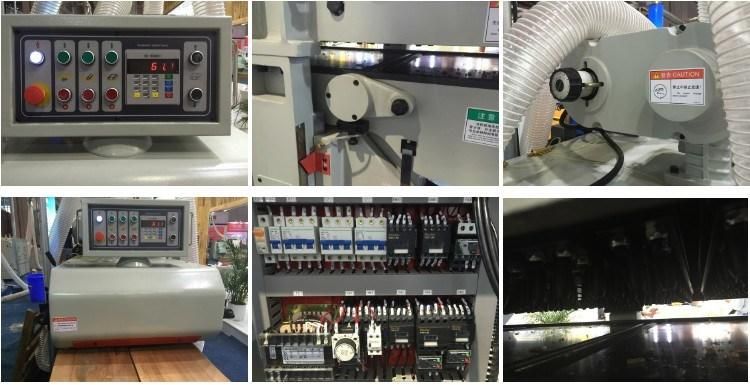

Details:

1. Machine frame made from high quality whole casting, machining with special treatment and precision machining, with stable performance, rigidness, good precision.
2. Working table use special high-quality wear-resistant materials, the special treatment, precision grinding and hard chrome-plated, the table is beautiful surface, smooth, good wear resistance.
3. Main spindle use high-strength special steel, with special heat treatment, precision machining and dynamic balancing treatment, with precise assemble and testing, its stable operation, stable performance, durability, good processing accuracy.
4. Main spindle use SKF high precision grade bearings, with precision assembly and high-speed running constant temperature testing, qualified to ensure the spindle performance stable operation, good accuracy.
5. For the feeding system structure, use flexible pressing claws can adjust pressing pressure, to ensure the workpiece surface is not crushed, and also can meet the strong feeding requirements, to achieve high-speed feeding and planning.
6. Feeding use stepless variable speed, ensure planning quality for different kinds of wood.
7. Upper planning system adapts up & bottom driven roll, ensure enough strength for feeding.
8. Lifting system with digital display, make operation easy and convenient.
9. The machine adopts centralized lubrication system, equipped with hand-held pump, lubricate for sliding guide rails, slide plates and other lubrication point, easy to operate, more hummization.
10. Main electrical components, transmission parts are imported components of international brands, performance is stable, good reliability.

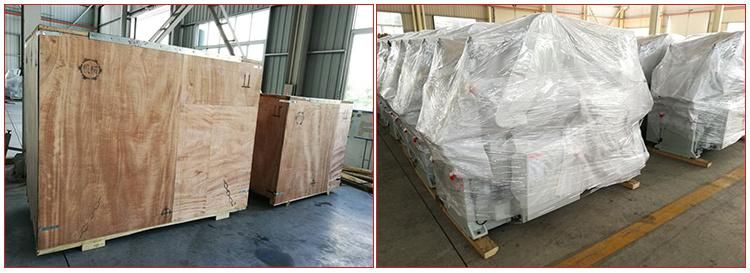

Package:

About Us:
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.

5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
   a. 12 months warranty for the whole machine
   b. Technical support by phone, email or WhatsApp/Skype around the clock.
   c. Friendly English version manual and operation video CD disk
   d. Engineer available to service machinery overseas.

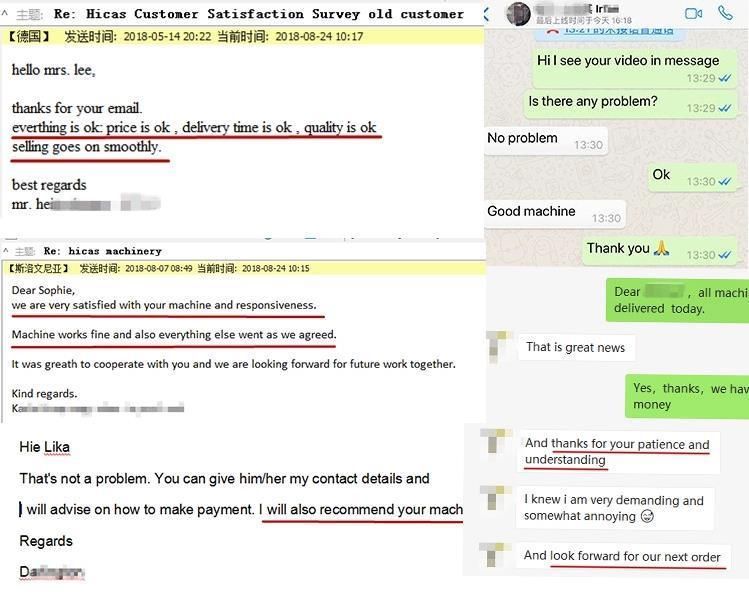

7. Customer feedbacks

8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
