• Model NO.：FM2030
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500*400mm
• Working Voltage：AC380V,50Hz AV220,50Hz
• Spindle Speed：0-24000rpm,Min
• Motor Type：Stepper,Servo
• Working Software：Windows98,2000,XP
• Motor：Stepper, Servo
• Guide：Taiwan Hiwin Linear Guide
• Transmission：Helical Rack and Pinion
• Control System：Mach3 , DSP Optional
• Inverter：Fuling Inverter
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM2030 Customized Customized Condition New Color Customized Working Area 1300*2500*400mm Working Voltage AC380V/50Hz AV220/50Hz Spindle Speed 0-24000rpm/Min Motor Type Stepper/Servo Working Software Windows98/2000/XP Motor Stepper/ Servo Guide Taiwan Hiwin Linear Guide Transmission Helical Rack and Pinion Control System Mach3 / DSP Optional Inverter Fuling Inverter Transport Package Standard Export Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

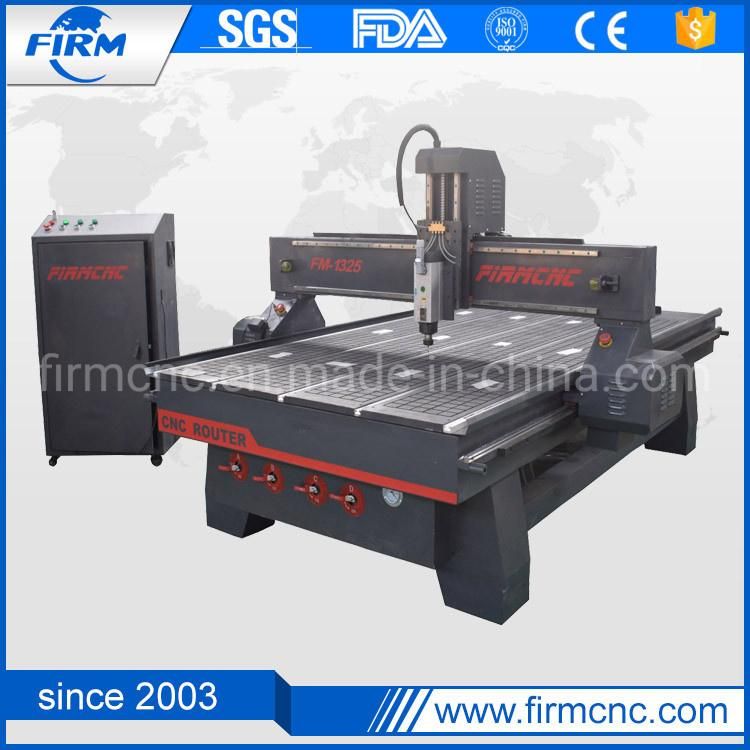

Good quality 3d cnc router 2030 wood carving cutting machine for door furniture

Main Feature
1.3.5KW air cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2.Thicken square pipe structure, well welded,no distortion for whole structure.
3.Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4.DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5.This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other
G-code format generated by CAD/CAM
6.Adopt high speed step motor Max speed is 20M/MIN.
7.Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

Technical Date

Brand	FIRMCNC
Model	FM1325
Engraving area	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.5kw air cooling spindle
Spindle Rotate (rpm)	18000rpm/min
Motor Driver	High speed step motor (optional servo motor )
Transmission System	Imported ball screw or high accuracy gear rack
Guide rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	10-20m/min
Contorl system	DSP CONTROL (optional Mach3 NCstudio contol)
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	380V/3P/50Hz
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1200Kg

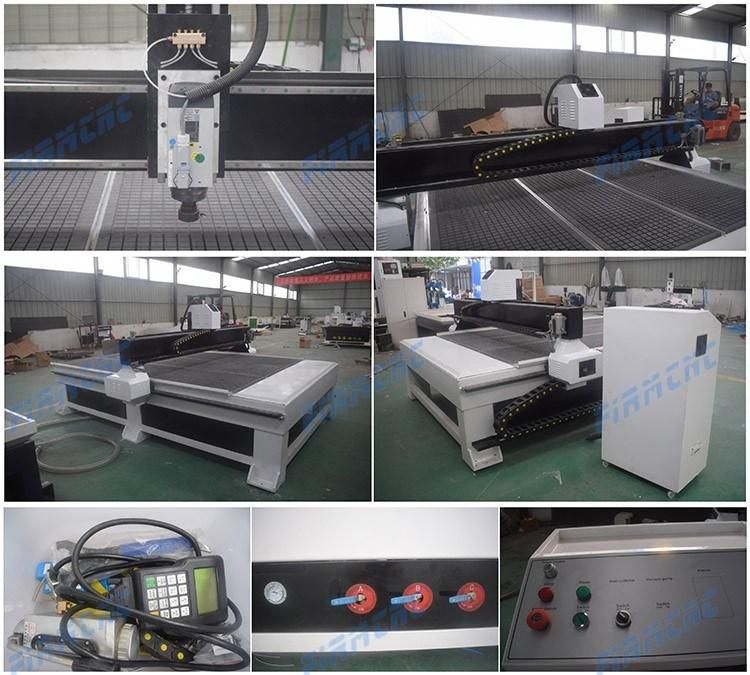

Main configuration

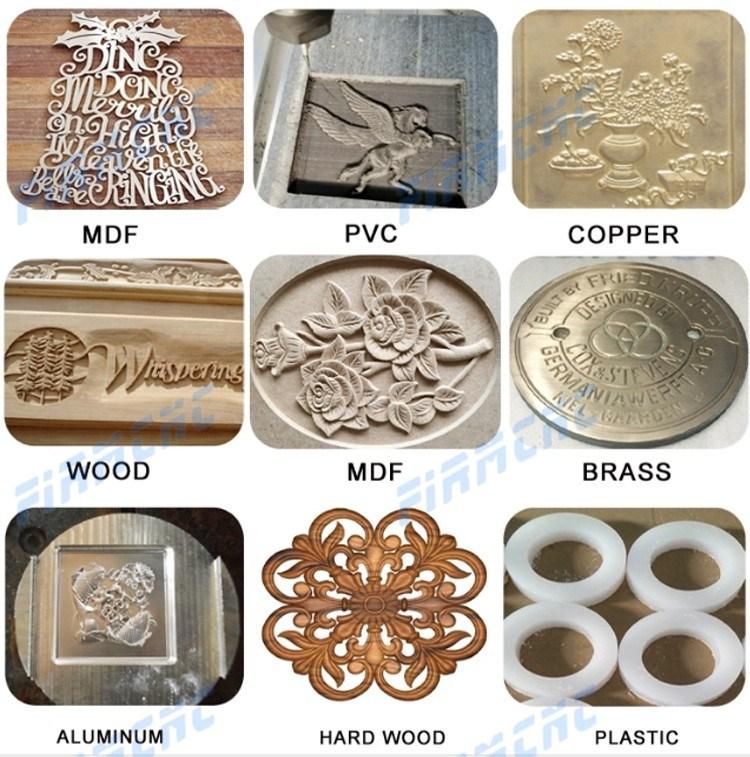

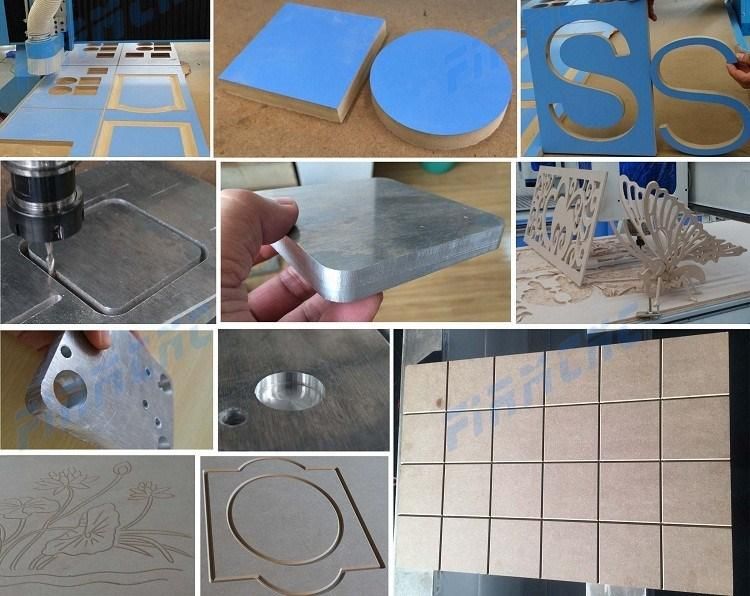

Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.



Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.


Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.



FAQ
Question 1:How long about the machine's guarantee ?
Answer :2 years
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
