• Model NO.：SK1300-P6
• Color：Customized
• Name：Brush Sanding Machine
• Max. Working Width：1300mm
• Min. Working Length：500mm
• Working Thickness：2-100mm
• Polishing Roller Speed：Frequency Control
• Disc Motor Power：1.5kw*1
• Worktable Lifting Motor Power：0.55kw
• Feeding Motor Power：2.2kw
• Swing Motor Power：0.37kw*2
• Cross Motor：1.5kw*2
• Transport Package：Strong Stretch Film
• Specification：3650*2150*2100 mm
• Trademark：SOSN
• Origin：China
• Production Capacity：200 Sets ,Month

Basic Info.

Model NO. SK1300-P6 Color Customized Name Brush Sanding Machine Max. Working Width 1300mm Min. Working Length 500mm Working Thickness 2-100mm Polishing Roller Speed Frequency Control Disc Motor Power 1.5kw*1 Worktable Lifting Motor Power 0.55kw Feeding Motor Power 2.2kw Swing Motor Power 0.37kw*2 Cross Motor 1.5kw*2 Transport Package Strong Stretch Film Specification 3650*2150*2100 mm Trademark SOSN Origin China Production Capacity 200 Sets /Month

Product Description

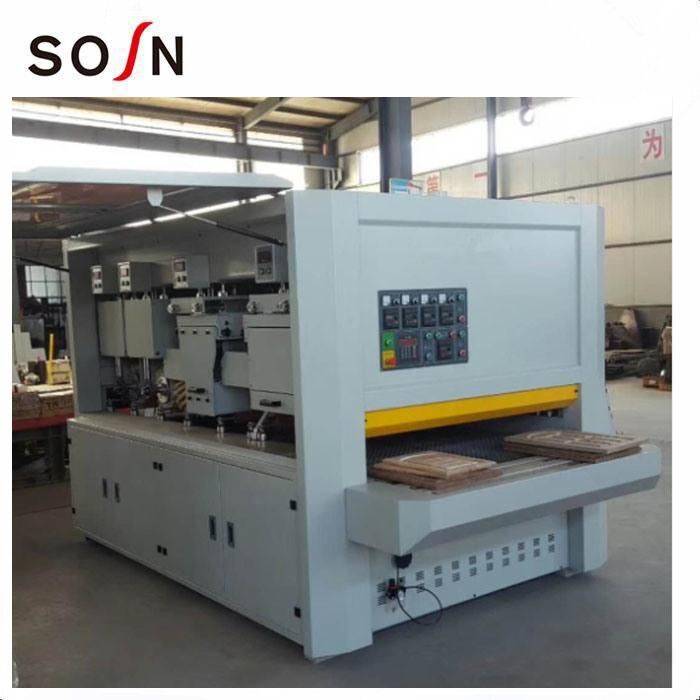

Woodworking horizontal & vertical polish sanding machine  SK 1300-P6




Function and Characteristics:
1). The machine suits  for sanding of kitchen Cabinet, Window, Door, Furniture…etc.
2).The modular structure can be combined optional to satisfy clients' demands.
3). Frequency conversion speed control is used in each group
4).The height of the worktable can be adjusted.
5).Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.

Technical specification:

Working  width	1300mm
Min.Working  length	500mm
Working  thickness	2-100mm
Polishing roller speed	frequency control
Feeding  speed	2.5-12.5m/min
Total  motor  power	15.47kw
Overall dimensions	3600*2100*2100mm
Net weight	4600kg
Disc motor	1.5KW*1
Cross motor	1.5KW*2
Screw roller motor	3KW *2
Up and down motor	0.37KW*4
Table up and down motor	0.55KW
Feeding motor	2.2KW
Swing motor	0.37KW *2

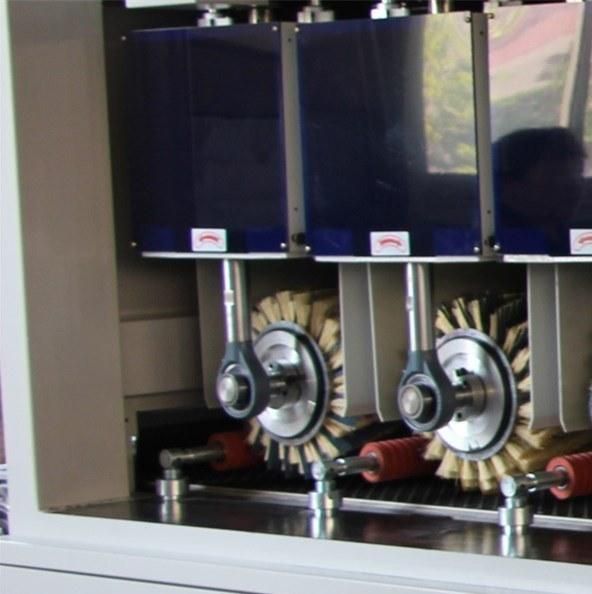

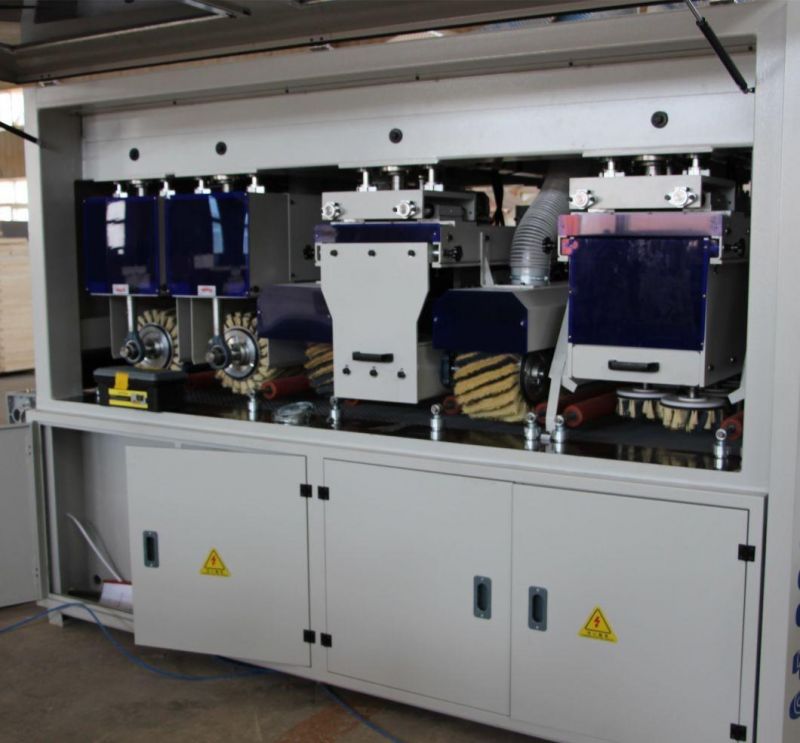

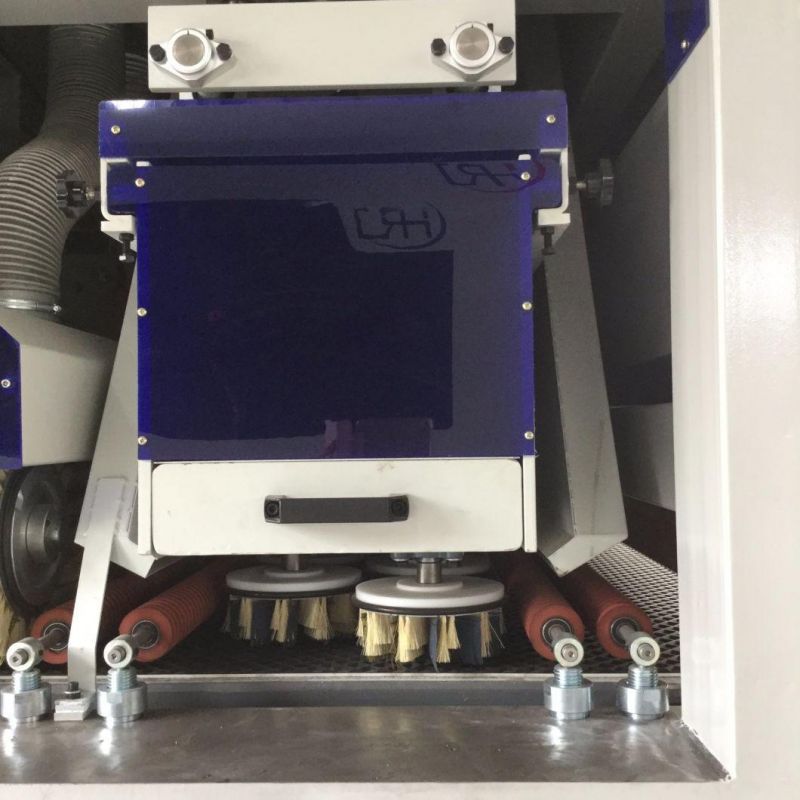

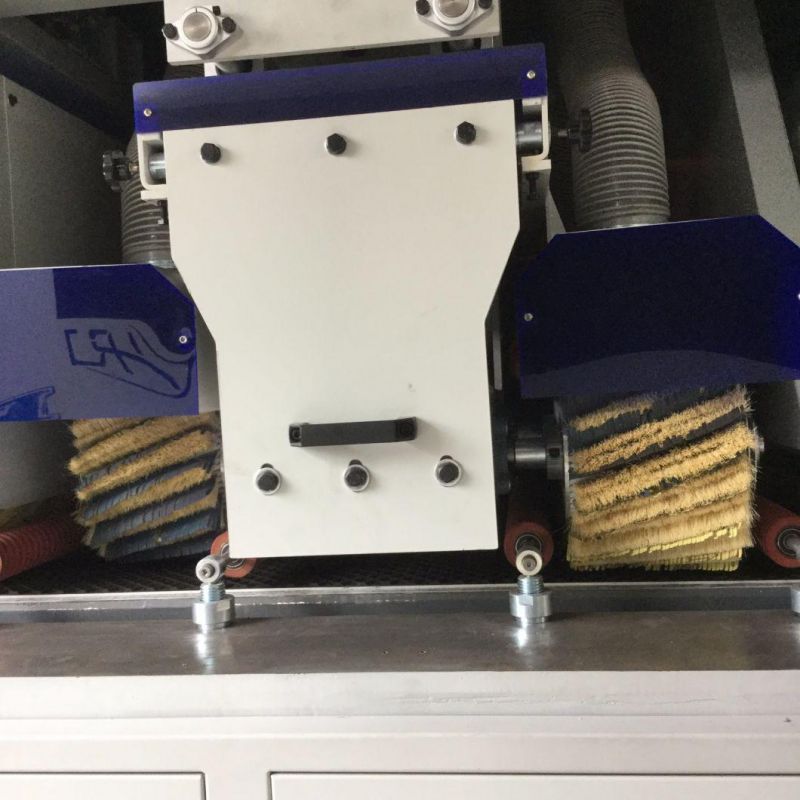

Inner structure of brush polishing sanding machine Sk1300-P6:





If you have any interest of this machine, please let me know.
