• Model NO.：QMJ154D,D-T
• Precision：High Precision
• Certification：CE, ISO
• Customized：Non-Customized
• Condition：New
• Color：Blue and Grey
• After-sales Service：3 years
• Weight：1150KG
• spindle：top spindle
• multi or single blade：single blade
• usage：wood cutting
• automatic or manual：automatic
• name：woodworking machinery
• Transport Package：Plywood Carton
• Specification：1960X1180X1600
• Trademark：QingCheng
• Origin：China
• HS Code：84659200
• Production Capacity：10000,Y

Basic Info.

Model NO. QMJ154D/D-T Precision High Precision Certification CE, ISO Customized Non-Customized Condition New Color Blue and Grey After-sales Service 3 years Weight 1150KG spindle top spindle multi or single blade single blade usage wood cutting automatic or manual automatic name woodworking machinery Transport Package Plywood Carton Specification 1960X1180X1600 Trademark QingCheng Origin China HS Code 84659200 Production Capacity 10000/Y

Product Description

QC Wookworking Machinery Automatic Single-ship/Single-blade Rip Saw Machine Table saw Machine

Specifications	Unit	QMJ154D/D-T
Max. sawing thickness	mm	125
Min.sawing length	mm	300
Deep throat	mm	510
Saw shaft dia	mm	Φ30
Saw shaft speed	r/min	3450
Saw blade dia	mm	Φ300~Φ400
Feeding speed	m/min	8/13.6/19.1/24
Total motor power	kW/HP	12.5/17
Main motor	kW/HP	11/15
Feeding motor	kW/HP	1.5/2
lifting motor	kW/HP	0.37/0.5
Vacuum port diameter	mm	2x Φ100
Overall dimensions	mm	1960X1180X1600
Weight	kg	1150

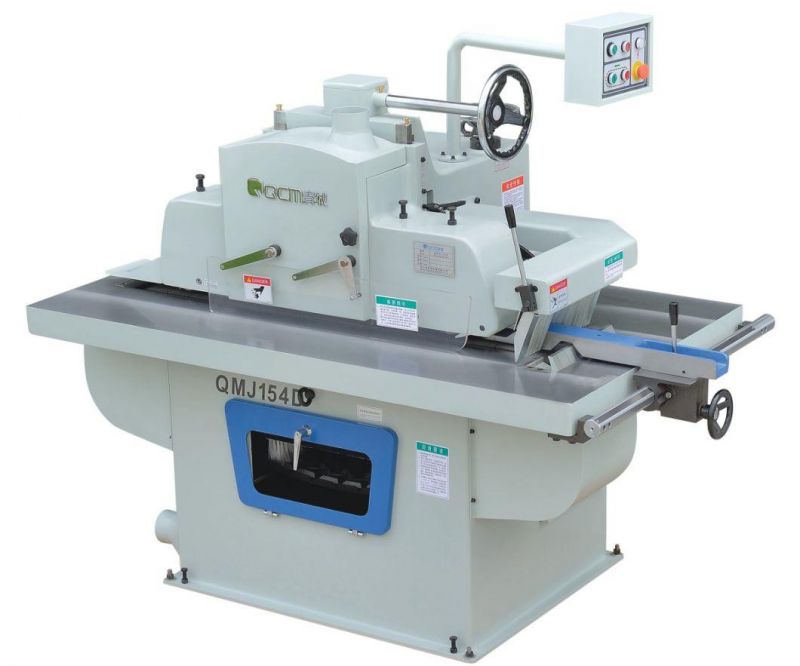

QMJ154D table saw is newly-developed upper spindle type. This machine is equipped with casting chain plates and guide trak with special material and precision processing. And it is equipped with anti-rebound safety devices, tt has the advantage of safer operation.

The maximum thickness of 125mm is mainly used for the longitudinal cutting and trimming of wood products, which is the best choice for the solid wood furniture factory, wood products factory, wood products factory, wood products factory and wood products factory. Ideal equipment for safe and efficient finger board plant.

Main features.
1,The body is made of high quality steel plate with special welding process, special treatment and precision processing, with stable performance and precision.

2,Chain plates and guide rails are made of special materials and processed with high surface hardness, high precision and good abrasion resistance after special treatment.

3,The spindle adopts special material, which is processed and balanced dynamically with precision, assembled and tested with precision, and runs smoothly and with high precision.

4,The pressure roller box is equipped with 6 pressure rollers in total, 3 in front and 3 in back, with stable feeding and good precision.

5,It is equipped with large volume imported microcomputer automatic oiling pump for regular, fixed-point, quantitative lubrication, with oil shortage shutdown protection, to ensure that the machine tool can be used at the right time. Normal use and life expectancy.

6,The dust-removing brushes made of special materials are matched with the quantitative oil-filling device to clean and lubricate the chain plate in real time.

7,Special design of bilateral leaning, convenient for users to exchange the use of left and right, to prevent the chain plate, guide rail long-term unilateral use and damage to the accuracy of the machine tool.

8,Main electrical components and transmission parts are all good brands and components, stable performance.
9,It is equipped with material blocking plate on the outside of feeding to ensure the safety of processing short and long materials.

10,The guide plate is equipped under the guide rail, which can effectively prevent the chain plate from running to catch the material and lift up to damage the chain plate and saw blade, making it safer to use.

11,The front and left side of the machine are equipped with observation door and dust-absorbing cover, which are convenient for users to observe and inspect, improve the dust-absorbing effect and avoid oil pollution.


FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.

2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, Warranty of your products?
Its warranty is 12 months.

5, What's your leading time?
Within 10 days for regular stocked machine. 2 months for OEM machines.

7, What's your delivery term?
---FOB shanghai/Ningbo
