• Model NO.：1325ATC_L
• Customized：Customized
• Condition：New
• Color：Customized
• Movement：Gantry
• Control System：Taiwan Syntec Control System
• Optional：Siemens Control System
• Adsorption Function：Vacuum Adsorption
• Inverter：Taiwan Delta
• Drive Mode：Servo, Yaskawa
• Spindel：9kw, Hsd
• Tools：Disc-Type 8-12 Tools
• Transport Package：Plywood Case
• Specification：GJH1325S-ATC
• Trademark：GJH
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 1325ATC_L Customized Customized Condition New Color Customized Movement Gantry Control System Taiwan Syntec Control System Optional Siemens Control System Adsorption Function Vacuum Adsorption Inverter Taiwan Delta Drive Mode Servo, Yaskawa Spindel 9kw, Hsd Tools Disc-Type 8-12 Tools Transport Package Plywood Case Specification GJH1325S-ATC Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

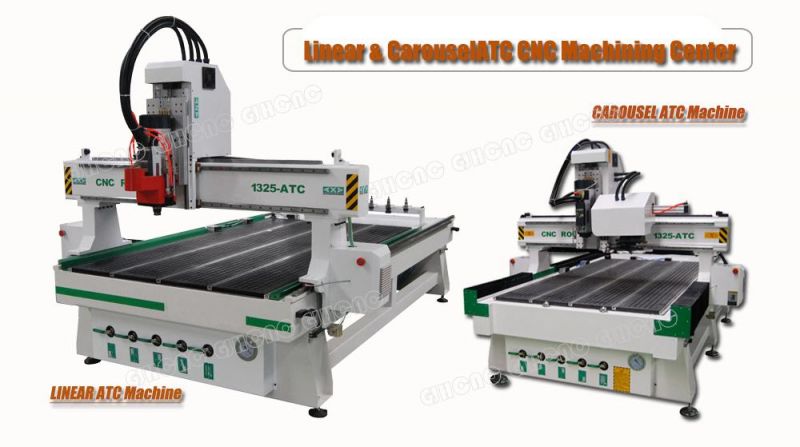

Hsd spindle,  Syntec system, 4'x8',Linear tool magazine,
1325 ATC woodworking/ Furniture cnc router
from
Professional manufacturer



1.The machine adopts syntec or siemens control system and italian hsd spindle.
2.Carousel tool magazine, saving more processing time than traditional ones.
3.Intelligent processing cross-border protection function can prevent the exessive processing caoused by mechanical collision.

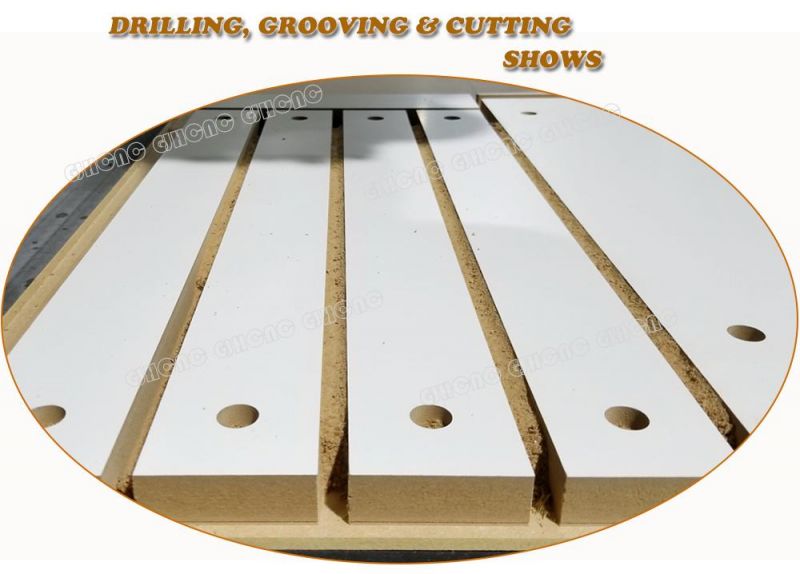

4.Furniture:Doors, cabinets, tables and chairs.
5.Considering to the customers' different requirements about the sizes, we can provide:1530-atc, 2030-atc, 2040-atc, 2550-atc etc.



Heavy duty structure ensures the Machine's Stability and Processing Accuracy.

No.	Index	Parameter
1	Working area:Xyzb	1300x2500x250mm
2	Table size	1300x2500mm
3	Accuracy	-0.03
4	Reposition accuracy	-0.03
5	Table	Vacuum and t-slot combined
6	Frame	Big steel tube structure
7	Transmission mode	X/y:Helical rack;Z:Screw;
8		Xyz:Hiwin square rail linear
9	Dust proof	Y axis
10	Power relating	4kw (not including spindle)
11	Max rapid speed	40000mm/min
12	Max working speed	20000mm/min
13	Spindle power	Hsd 9kw
14	Spindle speed	0-24000rmp
15	Drive motor	850w yaskawa motors
16	Working voltage	Ac380v/50/60hz, 3ph
17	Command language	G code
18	Operating system	Syntec control system
19	Collet	Er32
20	Software	Ug
21	Standard cabinet	Independent
22	Iso 30 tool handle with drill chuck	2
23	Atc magazine also 8 tools	Yes
24	Mist cooling	Yes
25	N.W.	1800 kgs
26	G.W.	2000 kgs
27	Packing size	3840x2210x2200mm

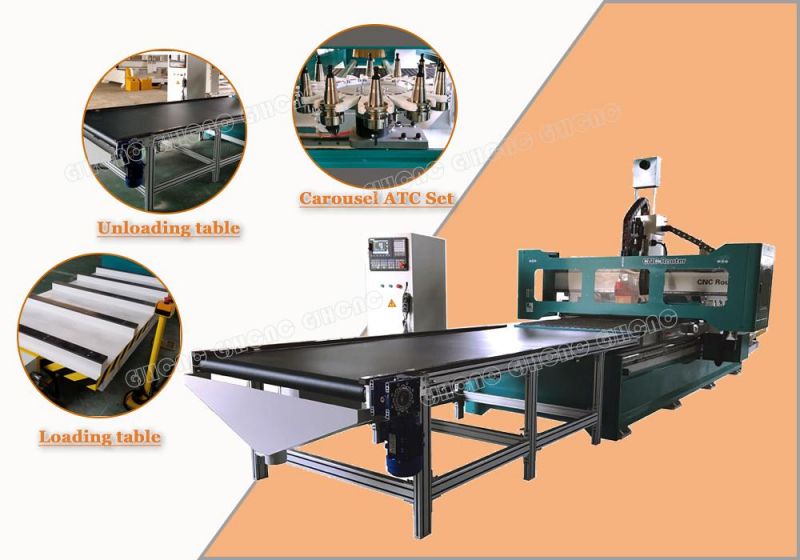

Our High grade machine, Carousel ATC CNC Router machine with Loading & Unloading set. All the processing material will be taken on or down automatically. That will bring us high efficient production.



If  you have specific requirement  for atc cnc rounter engraving machine, customized is available.




Guarantee & After-sale service
1.One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3.Free training to make sure you master the operation of the cnc router.

OEM Service Available
1.Usually, we will manufacturer the machine as our regular design.
2.X Y Z Working Area could be custmer-oriented designing.
3.Special configuration could be customer-oriented designing.
