• Model NO.：WZLH420
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Green
• After-sales Service：Provided
• Capacity(T/H)：0.8-1.2
• Main Power(Kw)：75,90
• Pellet Size(mm)：6-8
• Brand of Motor：Siemens
• Power of Feeder(Kw)：2.2
• Transport Package：Iron Pallet and Soft Guard
• Specification：2000 KG
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：84793000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Green After-sales Service Provided Capacity(T/H) 0.8-1.2 Main Power(Kw) 75/90 Pellet Size(mm) 6-8 Brand of Motor Siemens Power of Feeder(Kw) 2.2 Transport Package Iron Pallet and Soft Guard Specification 2000 KG Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 84793000 Production Capacity 5 Sets/Month

Product Description

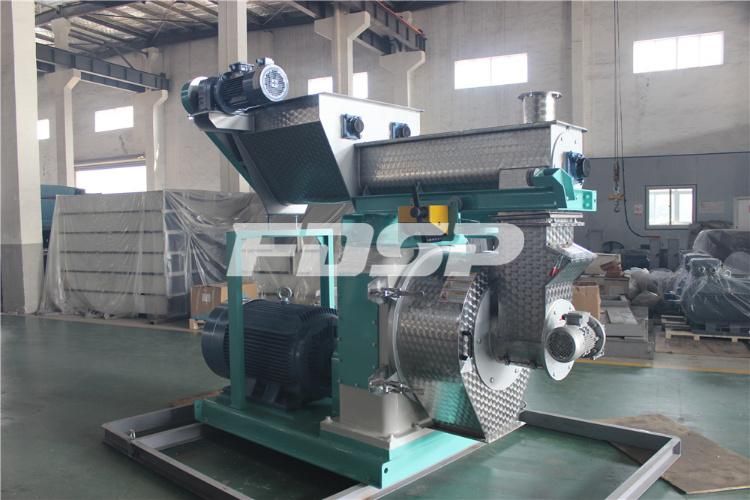

2022 New Designed Wood Pellet Making Machine
Features
1. It is widely used for pelletizing of light substances, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;

2. The feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of  light substances with the density of 0.15-0.65g/cm3;

3. Feeder,conditioner and chute are made of stainless steel with long service life;

4. It is with magnet and over load protection system which can protect machine well during production;

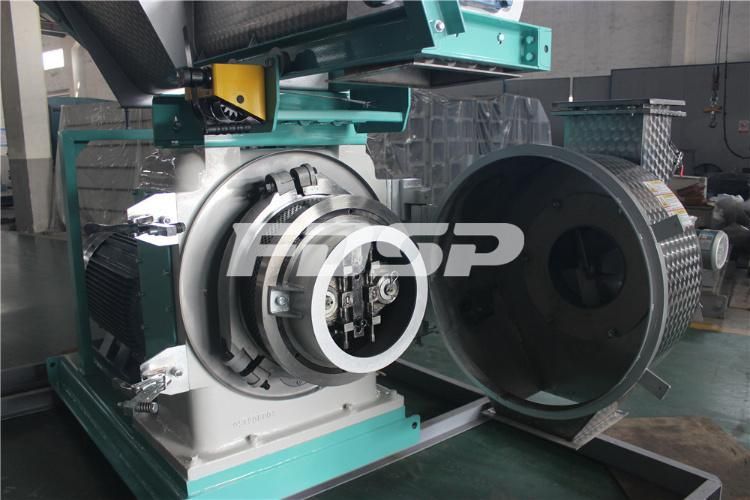

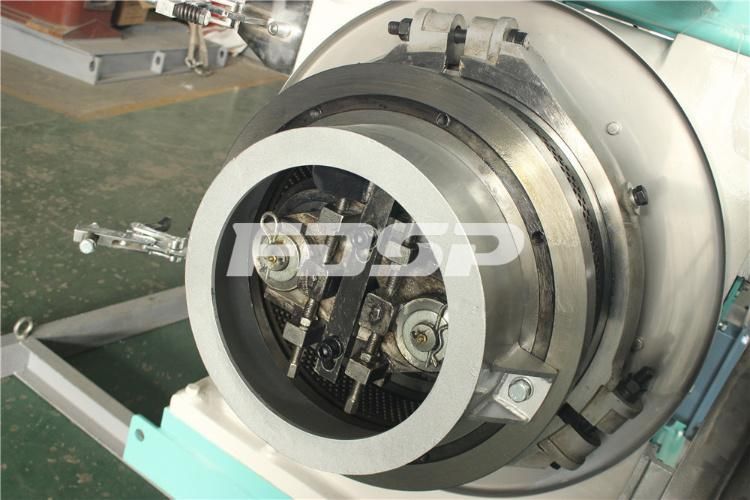

5. It makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;

6. The bearings and oil seals in the main drivers are imported from Japan to ensure highly-efficient,stability and credibility.


Main technical parameters as below:

Model	WZLH420	WZLH508	WZLH680
Ring die inner diameter (mm)	420	500	688
Ring die working width(mm)	90	100	110
Ring die linear speed (m/s)	3.16	3.78	3.54
Number of clamp	3 pcs	3 pcs	8 pcs
Number of roller	2 pcs	2 pcs	2 pcs
Number of cutter	1 pcs	1 pcs	1 pcs
Motor power	90+2.2+0.75	90+2.2+1.5	185+3.0+1.5
Motor rotation speed	750	750	595
Ring die hole   diameter(mm)	6/8/10	6/8/10	6/8/10

Product




WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.we have a professional technical team,with two departments for developing single machine and customized complete pellet line solution.Most of our engineers are with over 20 year's experience in this field and also have a lot of experience in oversea projects.
Our goods exported to many countries and won the good reputation by the high quality and superior service.
