• Model NO.：QMJ143E
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：online or video support
• Weight：1750kg
• max working width：300mm
• working thickness：10-120
• min. working length：600mm (single),300mm(continuous)
• saw spindle speed：4000 r,min
• feeding speed：4-30 m,min
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2250*1060*1460 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. QMJ143E Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service online or video support Weight 1750kg max working width 300mm working thickness 10-120 min. working length 600mm (single)/300mm(continuous) saw spindle speed 4000 r/min feeding speed 4-30 m/min Transport Package Plywood Carton or Bulk Packing Specification 2250*1060*1460 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

QMJ143E Woodworking Machinery Automatic multi-blade rip saw
1. Technical parameters : QMJ143E Multi-blades Rip Saw






Max.working width	300	mm
Working thickness	10-120	mm
Min. working length		mm
Min. working length (single / continuous)	600300	mm
Saw spindle Dia.	Φ55	mm
Reducing sleeve Dia.	Φ70	mm
Saw spindle speed	4000	r/min
Blad dia.	Φ205-Φ380	mm
Feeding speed	4-30	mmin
Total power	39.5752.7	kWHP
Feeding motor	2.23	kWHP
Spindle motor	37/50	kWHP
Lifting motor	0.370.5	kWHP
Beem lifting motor		kWHP
Saw spindle lifting motor		kWHP
Air supply pressure		MPa
Suction hood dia.	2*Φ150	mm
Overall dimension	2200*1500*1580	mm
Weight	2300	KG

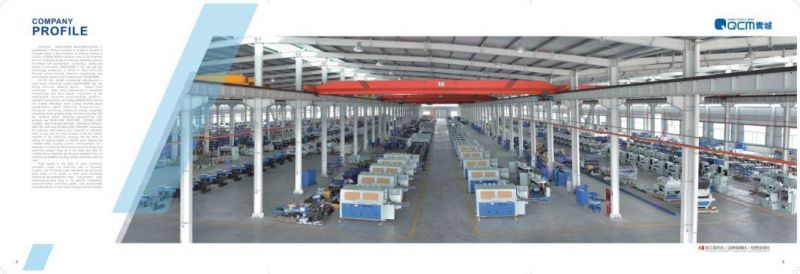

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

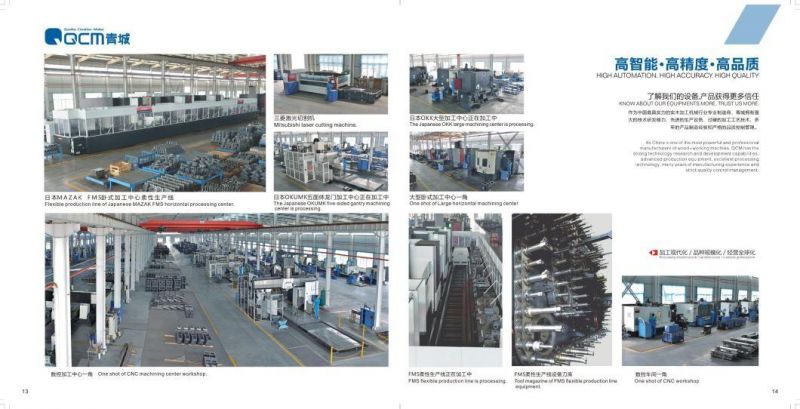

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.










3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Combination Machine




E:Double-end Tenoining Machine




F: Sanding Machine
