• Model NO.：SKW-2131DC
• Table Surface：T-Slot, Vacuum Table Optional
• Spindle：Hqd Aircooling ,Watercooling Optional
• Rails：Taiwan Hiwin
• X,Y Movement：Rack and Pinion
• Operating System：DSP11, Nc Studio
• Software：Artcam(Type 3, Jd Paint Optional)
• Motor：Stepper Motors (Servo Optional)
• Inverter：Fuling Inverter
• Z Axis：Ballscrew
• Transport Package：Wooden Case
• Specification：2100*3100mm
• Trademark：SENKE
• Origin：China
• HS Code：8465990000
• Production Capacity：200set,Month

Basic Info.

Model NO. SKW-2131DC Table Surface T-Slot/ Vacuum Table Optional Spindle Hqd Aircooling /Watercooling Optional Rails Taiwan Hiwin X,Y Movement Rack and Pinion Operating System DSP11/ Nc Studio Software Artcam(Type 3/ Jd Paint Optional) Motor Stepper Motors (Servo Optional) Inverter Fuling Inverter Z Axis Ballscrew Transport Package Wooden Case Specification 2100*3100mm Trademark SENKE Origin China HS Code 8465990000 Production Capacity 200set/Month

Product Description

Product Description

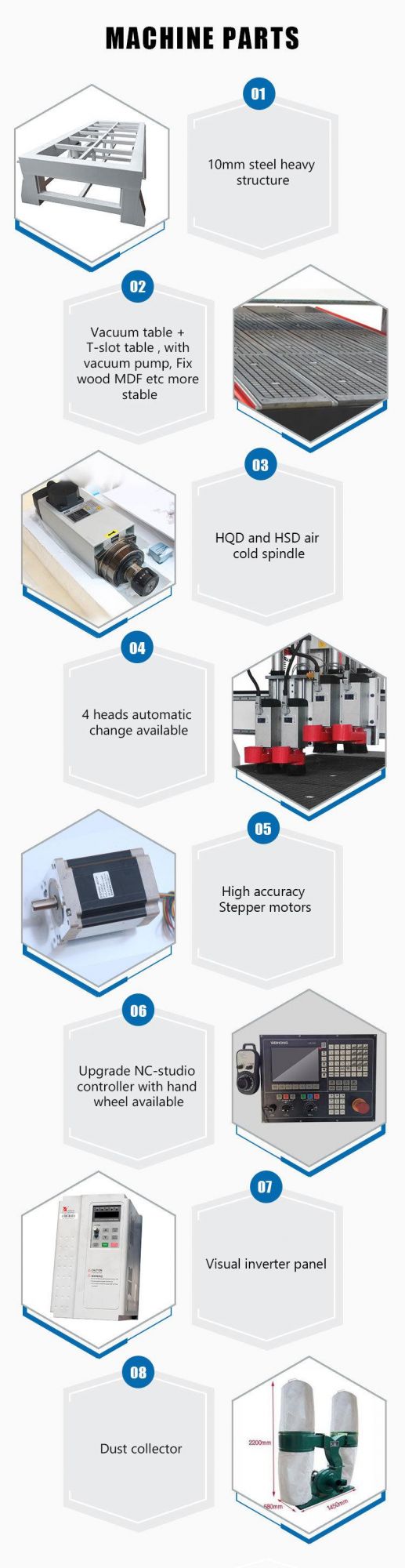

1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. Use high speed drive motor,also servo motors for optional
3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
4. With better compatibility, can match with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM.
    It achieves 2D and 3D works easily.
5. Dust protector and waterproof design ensure stable transmission.

Specification

SKW-1325DC	SKW-1530DC	SKW-2131DC
1300*2500*200mm	1500*3000*200mm	2100*3100*200mm
T-slot	T-slot	T-slot
Rack and pinion	Rack and pinion	Rack and pinion
Ballscrew	Ballscrew	Ballscrew
43000mm/min	43000mm/min	43000mm/min
25000mm/min	25000mm/min	25000mm/min
(3kw 4.5kw 6kw )	(3kw 4.5kw 6kw )	(3kw 4.5kw 6kw )
HQD aircooling spindle(watercooling optional)	HQD aircooling spindle(watercooling optional)	HQD aircooling spindle(watercooling optional)
Original nc-studio/dsp optional	Original nc-studio/dsp optional	Original nc-studio/dsp optional
Stepper motors   (Servo optional)	Stepper motors   (Servo optional)	Stepper motors   (Servo optional)
220v/380v 50HZ/60HZ	220v/380v 50HZ/60HZ	220v/380v 50HZ/60HZ

FAQ
 1. Q: Including the machine i see, what other machines you have?    A: As manufacturer we have the below machines supplied
        ---CNC router machine
        ---Plasma cutting machine
        ---Fiber laser cutting machine
        ---Laser marking machine
        ---Glass cutting and grinding machine
    2. Q: What certification you supplied?     A: We have CE, FORM A, FORM E,etc.
 3. Q: How long you need to make the machine?     A:The machine is made according to their sequence, normally takes about 13-15 working days.
 4. Q: This is the first time I use this kind of machine, is it easy operate?    A: Come with the machine, the teaching manual and video can be supplied, at
         the same time, the online face to face guide also available.
 5. Q: Can you ship the machine to my country/address?     A: Yes, FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF etc all are OK, just tell your nearest sea port /final address.
 6. Q: Which payment method you can accept?
    A: Accepted payment Currency: USD,EUR,AUD,HKD,GBP,CNY          Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow  etc or as talking.
