Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty：12months
  • Function：Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type：Straight Line
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：15~23m,Min

Base Info

  • Model NO.：FZ-360D
  • Certification：CE
  • Panel Thinkness：0.4~3mm
  • Min.length panel：120mm
  • Min.width panel：60mm
  • Manufacturing Principles：Glue Tank Underneath
  • Customized：Customized
  • After-sales Service：24 Hours on The Line
  • Working Air Pressure：0.8MPa
  • Weight：2000kgs
  • Total Power：16kw
  • Feed Speed：15-20m,Min
  • Panel Thickness：10-60mm
  • Edge Banding Tape Thickness：0.4-3mm
  • Transport Package：Wooden Case
  • Specification：4500x1000x1600mm
  • Trademark：SOSN
  • Origin：China
  • HS Code：84659900
  • Production Capacity：200,Momth

Description

Basic Info.

Model NO. FZ-360D Certification CE Panel Thinkness 0.4~3mm Min.length panel 120mm Min.width panel 60mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service 24 Hours on The Line Working Air Pressure 0.8MPa Weight 2000kgs Total Power 16kw Feed Speed 15-20m/Min Panel Thickness 10-60mm Edge Banding Tape Thickness 0.4-3mm Transport Package Wooden Case Specification 4500x1000x1600mm Trademark SOSN Origin China HS Code 84659900 Production Capacity 200/Momth

Product Description

Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine
Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine
Adopt to the linear sealing of PVC, wood plank and veneer etc.  1.using imported quality engines and electric components  2.Serialized products, a wide range of selection by customers
  3.High precision and efficiencyHeavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine
Main function:
Premilling---Gluing---End trimming---rough trimming---fine trimming---scrapping---Buffing---cleaning
Feature
  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Pre-heating before gluing warms the work piece edge, the glue could well melt during gluing, especially suitable for wet or cold zones.
  • Corner trimming unit is designed to trim 4 corners to achieve R circular arc radius.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand.
Main technical parameter:
Total Power15KW
Overall size 6502x1100x1705mm
Feed speed15-20m/min
Panel thickness10-60mm
Edge banding tape thickness0.4-3mm
Panel width ≥ 60mm
Working air pressure 0.8Mpa
Weight 2800kg

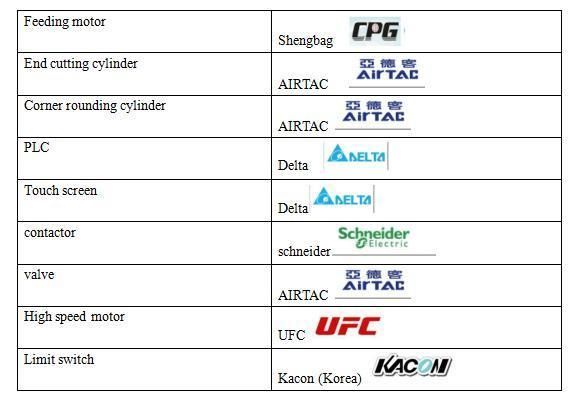

Following is components of  full automatic Edge banding machine:

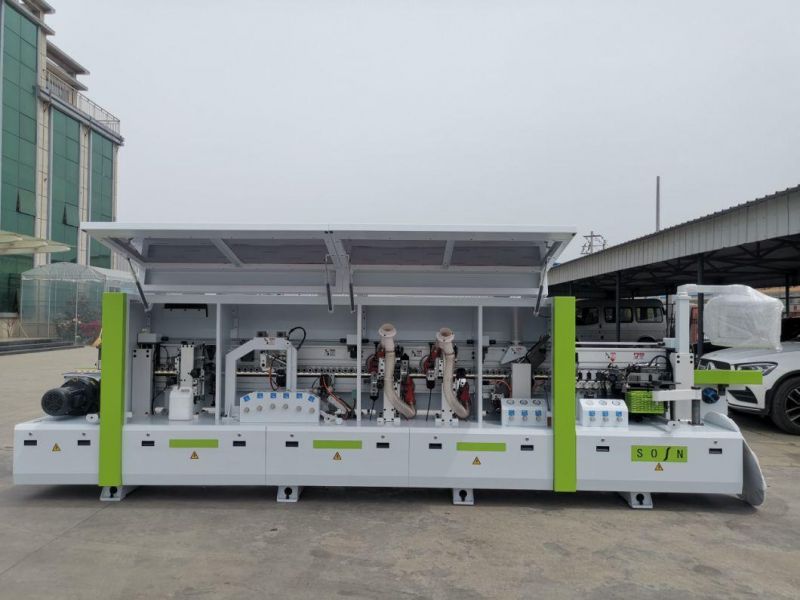

Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineMachine details :
Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine

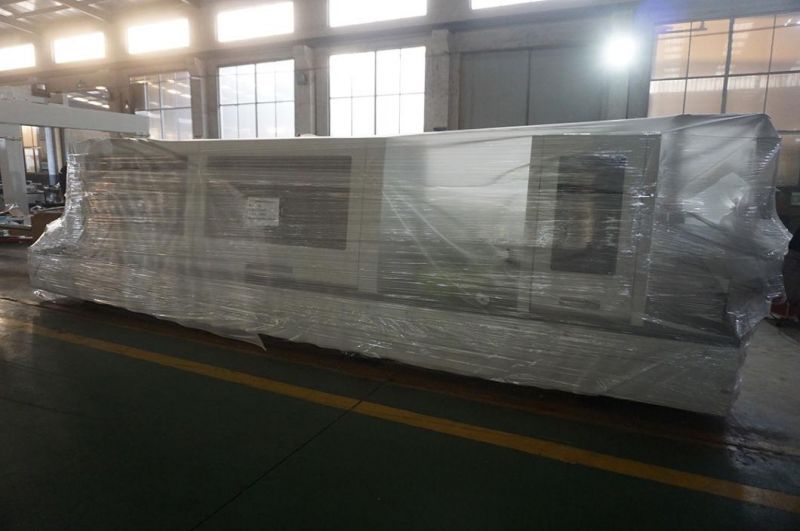

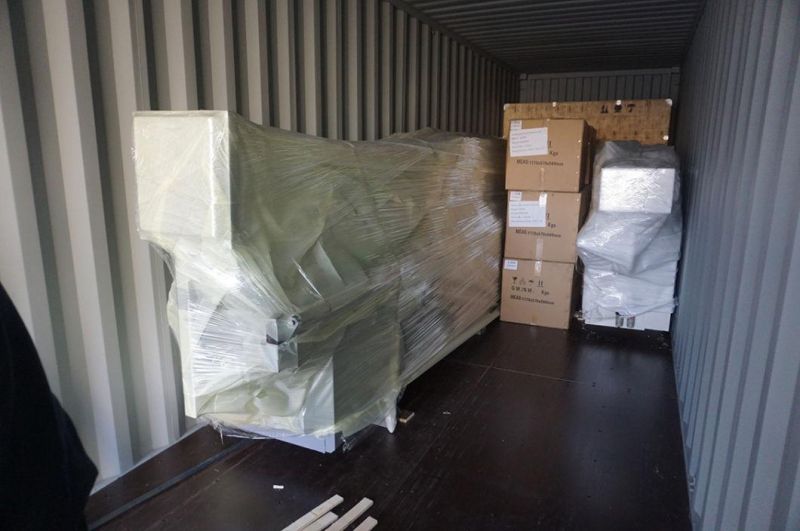

Delivery and Package
Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineHeavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding Machine

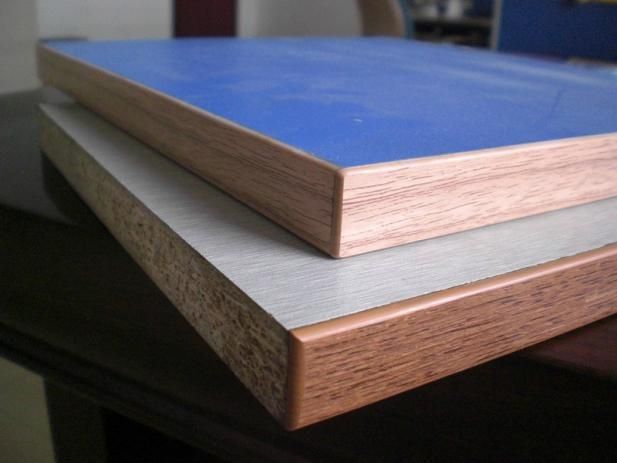

Application
Heavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineHeavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineHeavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineHeavy Duty Corner Trimming Funriture Edge Bander Woodworking Edge Banding MachineContact us today and you'll find we set a new benchmark in woodworking machine affordability, supply levels and customer satisfaction.
That's how SOSN gives you the cutting edge!
