China Manufacturer of Wood Crusher Wood Shredder Tree Chipping Machine
Zhengzhou AG Machinery & Equipment Co., Ltd.- Type：Vertical Uniaxial Wood Router
- Spindle Layout：Vertical
- Spindle Number：Single-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE
Base Info

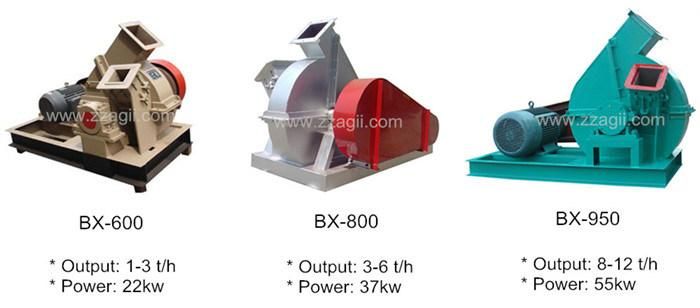

- Model NO.：BX-800
- Customized：Customized
- Condition：New
- Color：Customized
- Chipper Type：Disc Type
- Quantity of Knife：4-6 PCS
- Input Diameter：130mm-350mm
- Wood Chips Size：20mm-45mm
- Output：1-40 Tons Per Hour
- Remark：Inclined Input
- Keyword 1：Wood Chipper Machine
- Keyword 2：Wood Chipping Machine
- Keyword 4：Wood Chips Making Machine
- Keyword 3：Wood Chipper Shredder
- Transport Package：Wood Carton
- Specification：CE, SGS
- Trademark：AGII
- Origin：China
- HS Code：8474209000
- Production Capacity：300 Sets Per Month
Description
(pcs)
(mm)
(mm)
(kw)
(t/h)
Working principle of wood chipping machine
It is mainly made up of the base, feed port, cutter head, casing, blade and electronic control box. This machine can adjust cutting blade as needed, produce different specifications and thickness of the Wood chip.
The wood material is fed into machine chipping part through feed port, when it touches to cut blade, Along with the cutting knife plate ofHigh-speed rotation to peel and cut, at last, these wood pieces are Sent out through high speed steam-flow produced by fan blade in the knife plate.
Suitable raw material for wood chipper machine
Saw dust • Wood Chips • Wood logs • Tree branch • Wheat Straw • Peanut-shell • Rice husk •
Sugar Cane Bagasse • Coffee Husk • Paddy Straw • Sunflower Seed Husk • Sunflower Stalk • Reeds •
Cotton plant Stem • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Palm husk • Soybeans husk and many other agro and forest wastes, which size is about 30mm.
Application of wood chipper for sale:
Wood chipper machine can cut wood, branches, bamboo into small pieces, which is extensively applied in the material-preparing of pulp paper-making, OSB and MDF production and also in the individual wood chips production, different capacity we can supply, please contact for more news.
Packing Condition:
1. Wooden or metal case according to specific size of each equipment, twined thick plastic;
2. Tight the equipment in the truck without space to ensure no rubbing during the transportation.
