Automatic Hydraulic Cold Press Machine for for Making Wood Door

Linyi Gaotong Import & Export Co., Ltd.
  • Processing Technics：Cold Press
  • Structure：Frame Type

Base Info

  • Model NO.：GTM1220
  • Pressing Shape：Flat Press
  • Platen Surface Pressure：High Pressure
  • Pressing Layer：Multi Layer
  • Work Mode：Continuous
  • Controlling Mode：CNC
  • Automatic Grade：Automatic
  • Certification：CE, ISO, FDA
  • Board Feeding Direction：Transverse
  • Layers：1
  • Layer Spacing：1800mm
  • Work Plate Size：2700*1450mm
  • Cylinde：320mm*2PCS
  • Stroke：1000mm
  • Power：11kw
  • Total Pressure：400160
  • Overall Dimension：3550mm*1450mm*4200mm
  • Working Methods：Full Automatic
  • Transport Package：by Stretch Film with Wooden Case
  • Specification：3500kg
  • Trademark：GTCO
  • Origin：Shandong, China
  • Production Capacity：5000set,Year

Description

Basic Info.

Model NO. GTM1220 Pressing Shape Flat Press Platen Surface Pressure High Pressure Pressing Layer Multi Layer Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO, FDA Board Feeding Direction Transverse Layers 1 Layer Spacing 1800mm Work Plate Size 2700*1450mm Cylinde 320mm*2PCS Stroke 1000mm Power 11kw Total Pressure 400160 Overall Dimension 3550mm*1450mm*4200mm Working Methods Full Automatic Transport Package by Stretch Film with Wooden Case Specification 3500kg Trademark GTCO Origin Shandong, China Production Capacity 5000set/Year

Product Description

Total pressure500 T
Board feeding directionTransverse
Layers1
Layer spacing1800mm
work plate size2700*1370mm
Stroke800mm
Cylinderø360mm*2pcs
Power15KW
Overall dimension3550mm*1370mm*4200mm
Weight10Tons
Stand plate width370MM*4
Composite frameDetachable
Upper and bottom beam800mm
Thickness of the frame35mm Q235

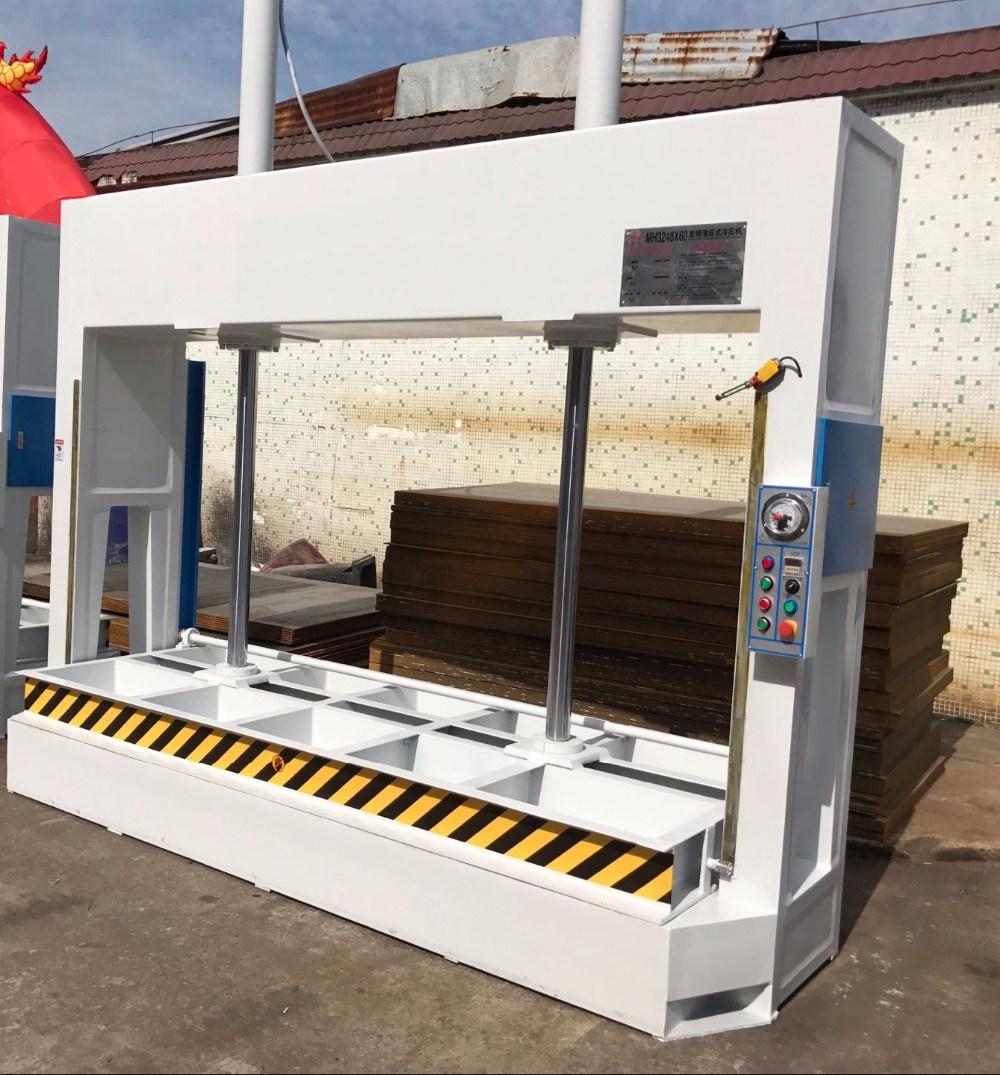

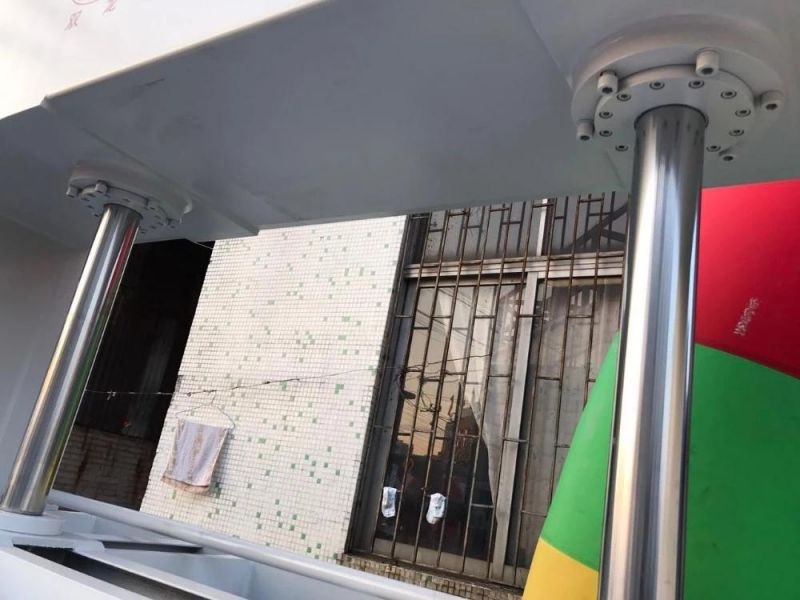

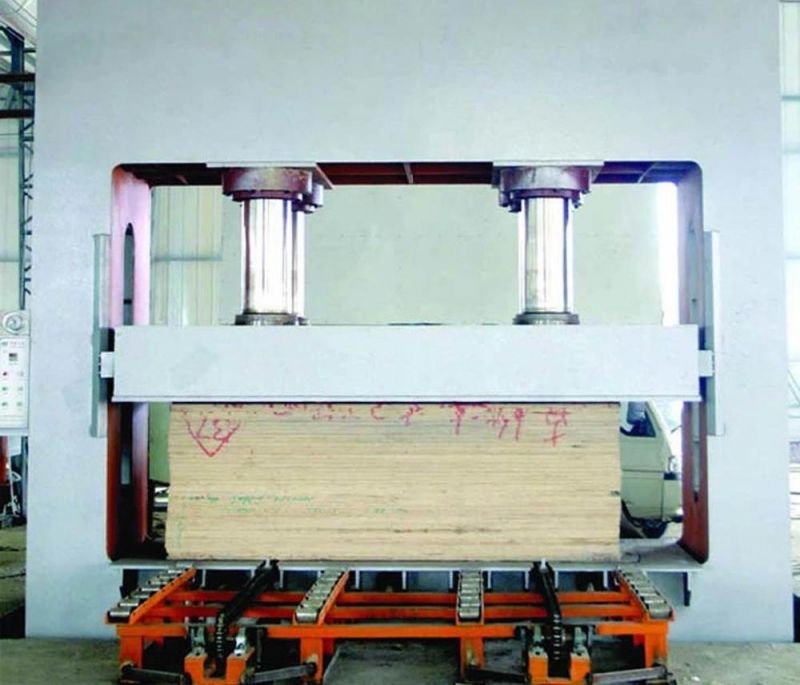

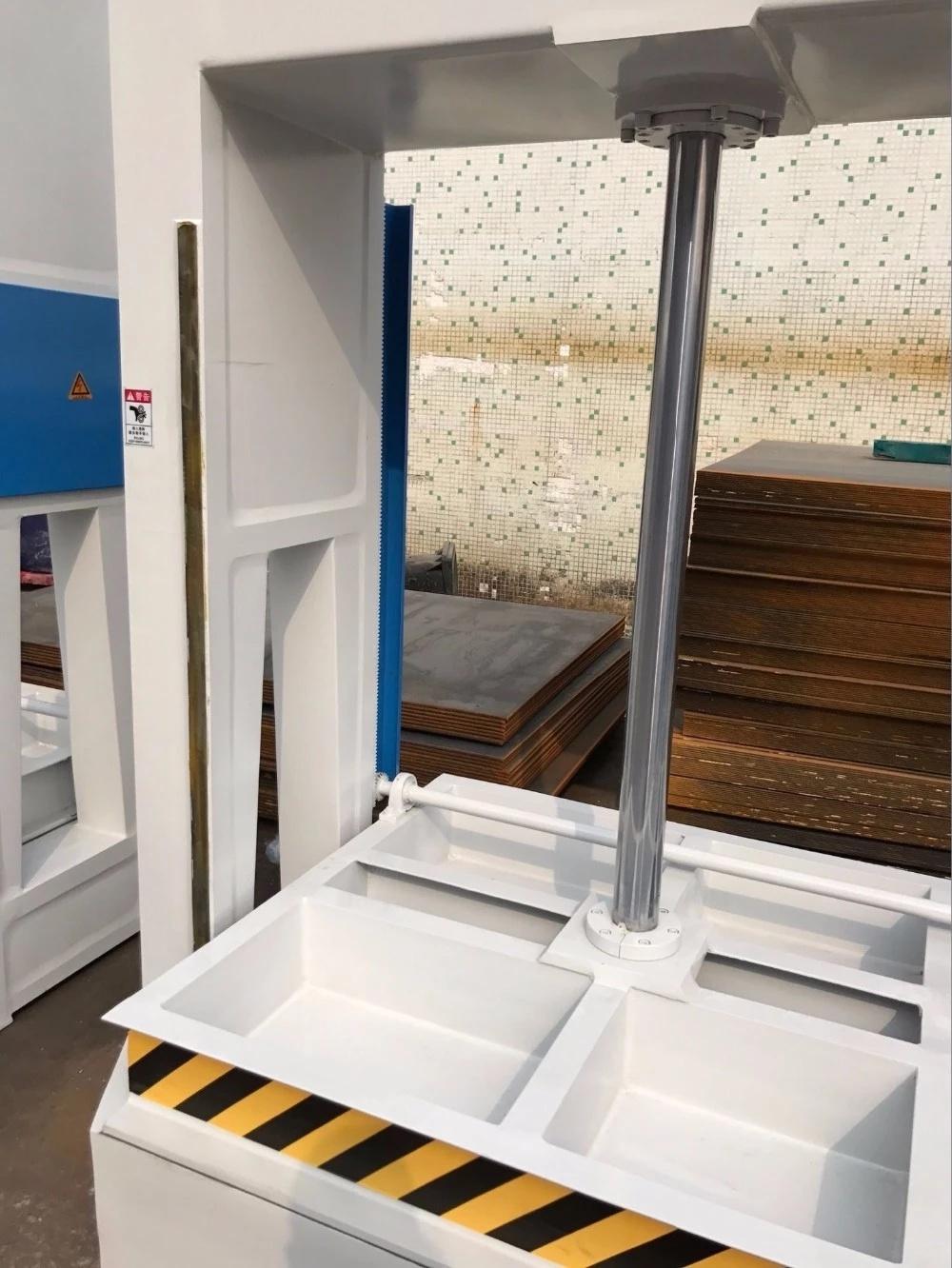

Product show
Automatic Hydraulic Cold Press Machine for for Making Wood Door
Automatic Hydraulic Cold Press Machine for for Making Wood DoorAutomatic Hydraulic Cold Press Machine for for Making Wood DoorAutomatic Hydraulic Cold Press Machine for for Making Wood DoorAutomatic Hydraulic Cold Press Machine for for Making Wood Door

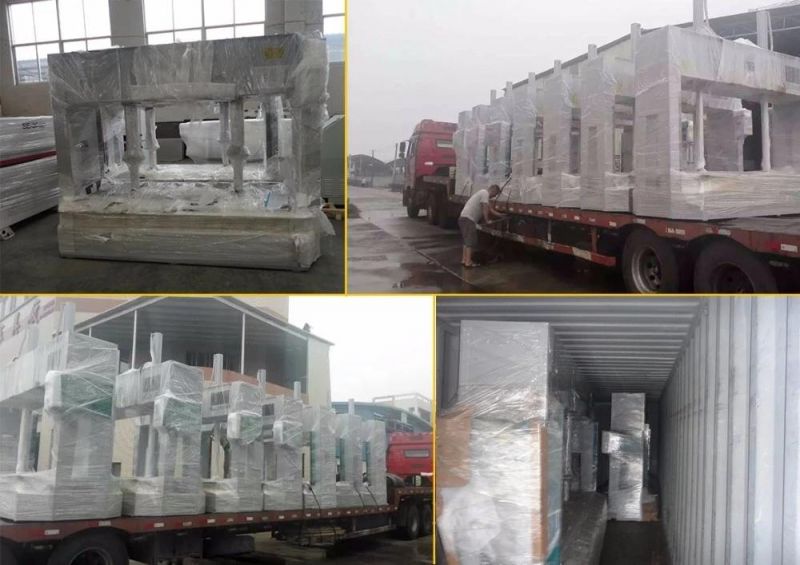

Packing and Shipping

Packaging Details
stretch film or as your request
Delivery Time
Shipped in 15 days after payment

Our Serive

1. more than 20 years production experience

2. Certifcate notaried

3. 24 hours service


FOQ

What's your company property ?

We have own factory and trading company . Welcome to visit .



Will you charge samples ?

Samples are free. As for the cost of courier , we will give back to you in the payment of the trial order .



What's your delivery time ?

The goods will be deliveried wthin 15 days after recepit of the deposit .



What's your main market ?

We specialized in exporting field for mroe than 8 years , with customers all over the world .Such as the USA ,Mexico , Chile, Venezuela , Italy ,France ,Russia ,Estonia ,

India , South Africa ,Croatia ,etc
