• Model NO.：UG-1325-2
• Certification：ISO, CE
• CNC or Not：CNC
• Voltage：220V
• Each Head Working Area：1300*(X)mm*2500(Y)mm*200(Z)mm
• Working Table：Aluminum Alloy T Slot Working Table
• Spindle Power：3.5kw, Air Cooling, Er25
• Guide Rail：Linear Square Guide Rail, Hiwin, Taiwan
• Transmission：Helical Rack and Pinion Transmission
• Control System：DSP A11e Offline Controller, Richauto
• Driving：Hybrid Servo Motor Driver H2-2206
• Z Axis：Dual, Independent
• Lubrication：Semi-Auto
• Tools Calibration：Auto
• Transport Package：Plywood Case
• Specification：3350*2250*2000mm
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month
• Package size per unit product：330.00cm * 228.00cm * 225.00cm
• Gross weight per unit product：1400.000kg

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

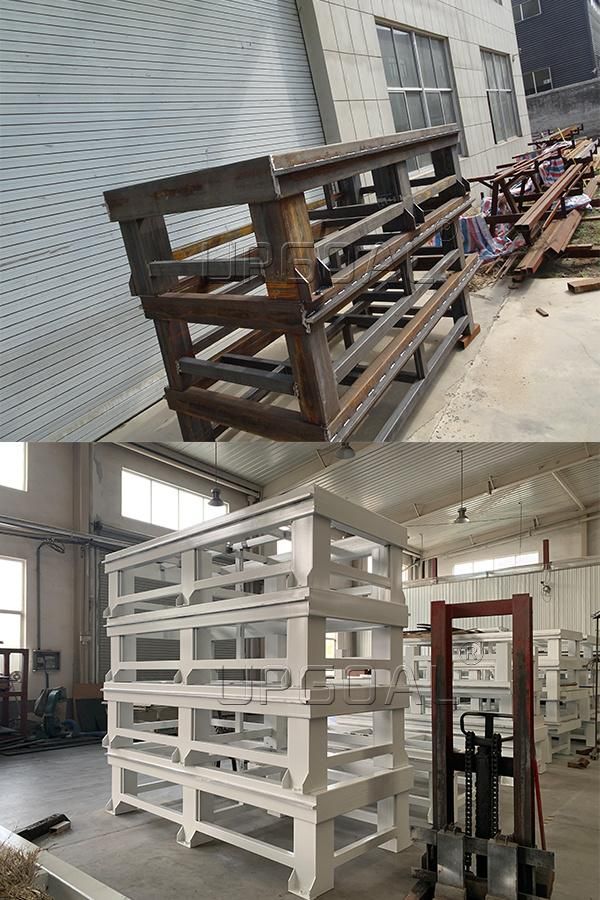

1.Strong welded square steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

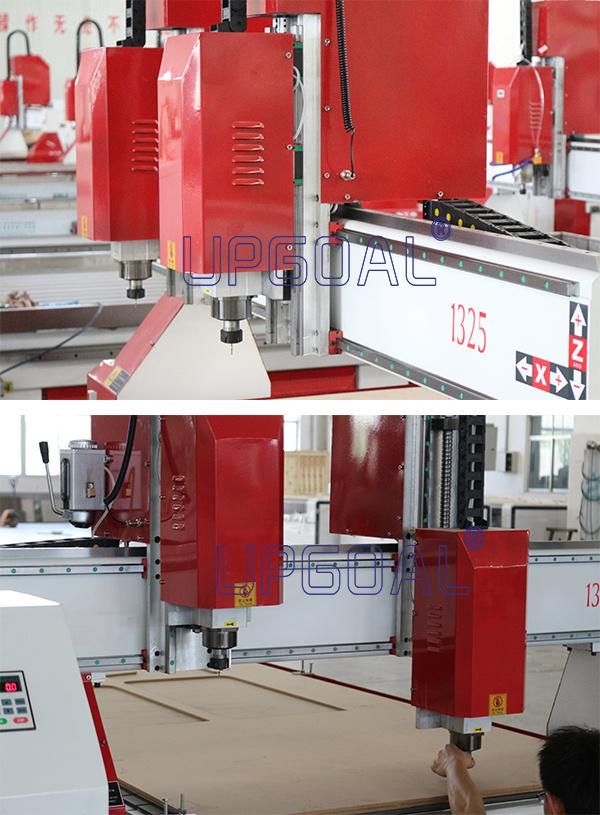

2. Independent double Z-axis, each head can do same work or just one head working, much improving efficiency.Also can do mirror movement/working at the horizontal direction.Each spindle is powerful China HQD 3.5KW air cooling spindle, which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.

3. Thick aluminum T slot working table.

4. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

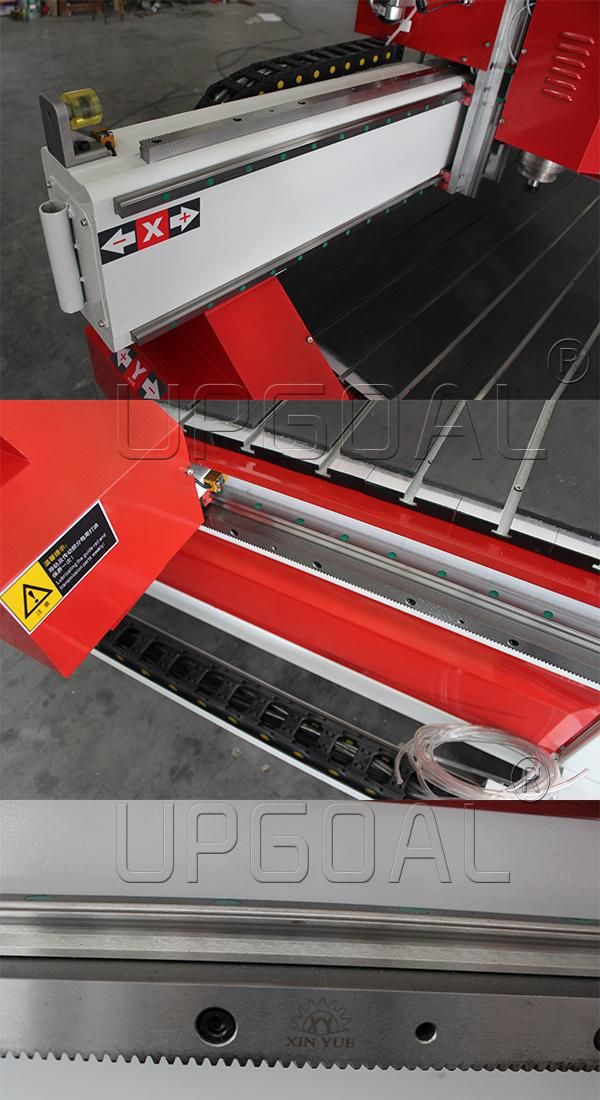

5. Famous XINYUE brand Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision lead ball screw, high precision and more durable.

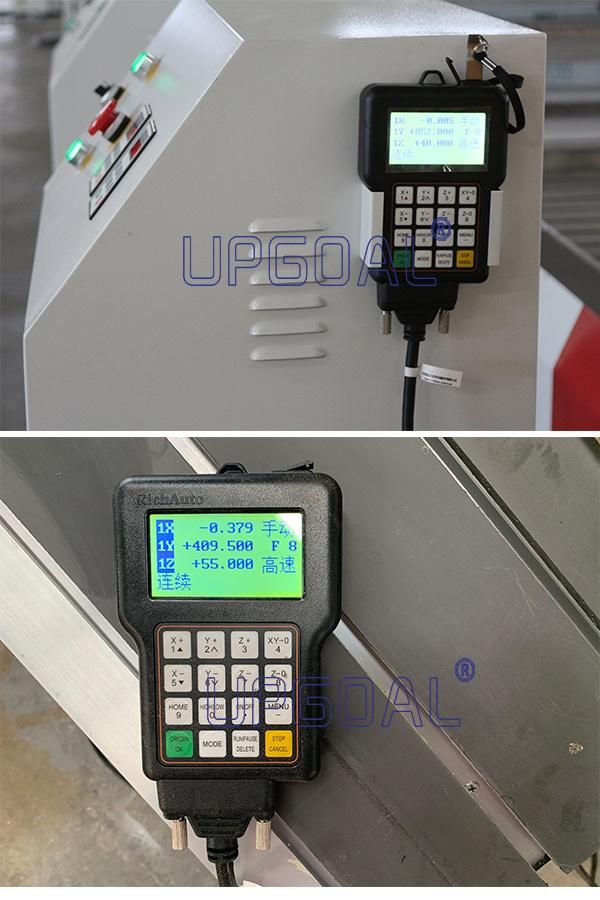

6. DSP( RichAuto, A11E) offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

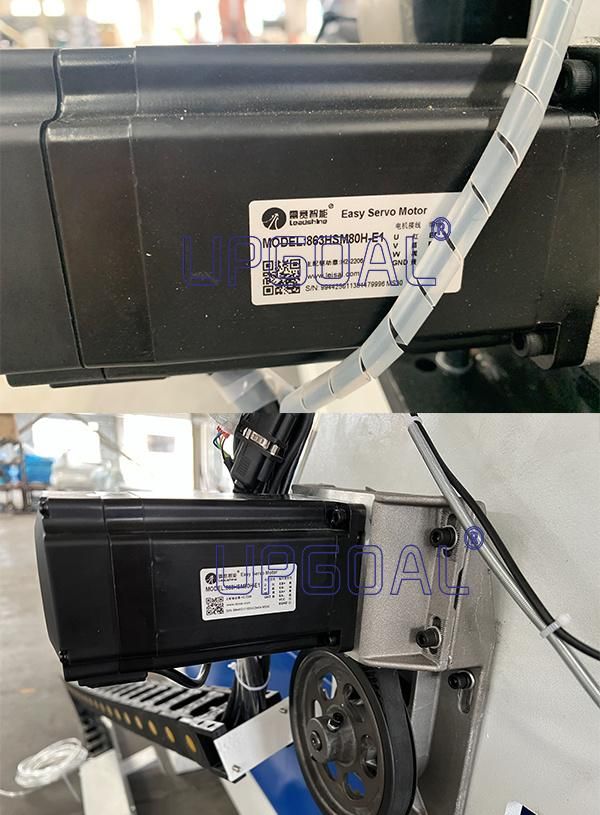

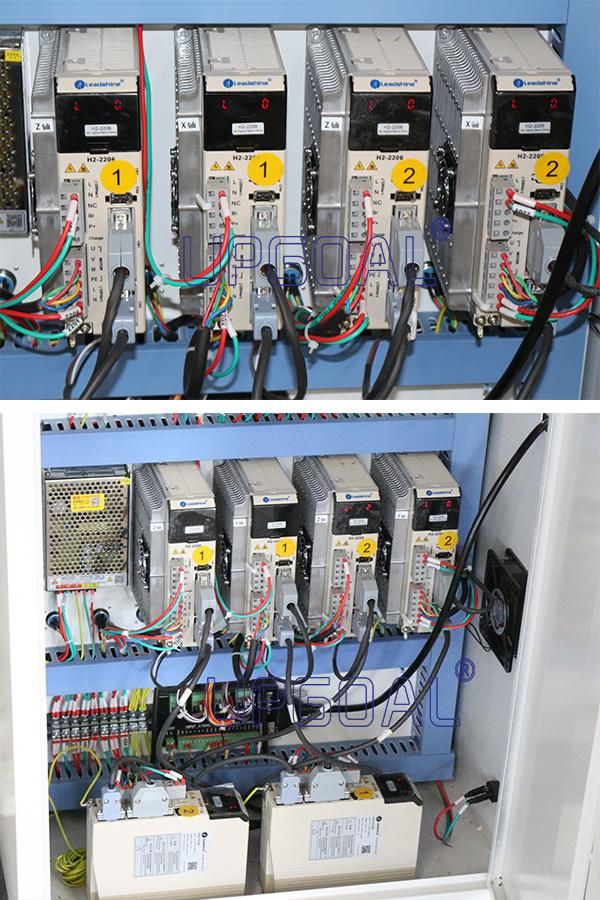

7. China Leadshine hybrid servo motor and hybrid servo driver H2-2206 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working.

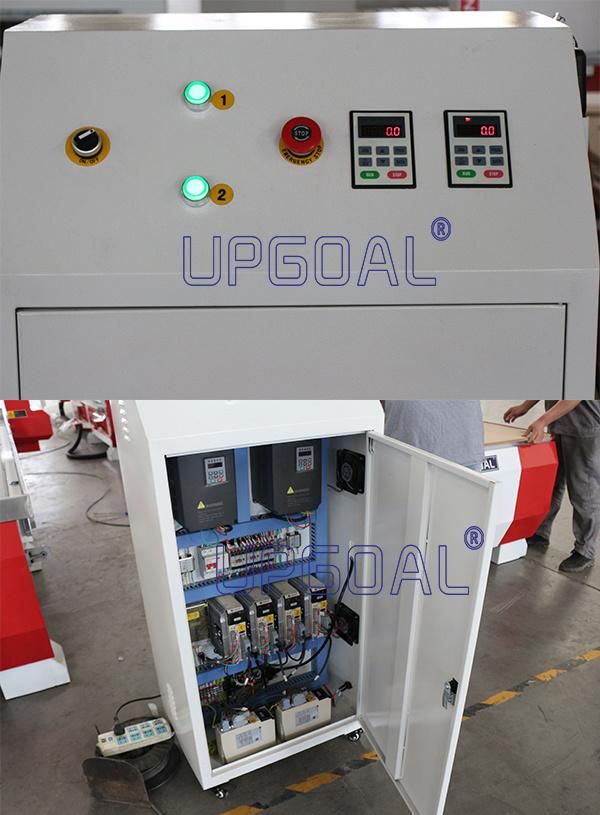

8. Independent control cabinet with external inverter adjusting panel, convenient for operaton.

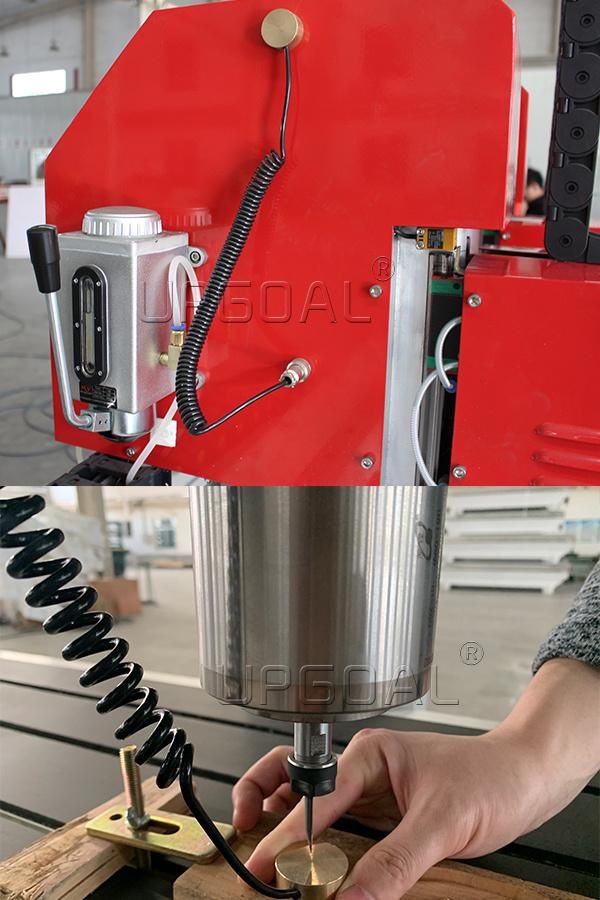

9.Semi-auto lubrication system more convenient for maintenance.
10. Auto tools calibration, precision for Z-axis 0 point setting.

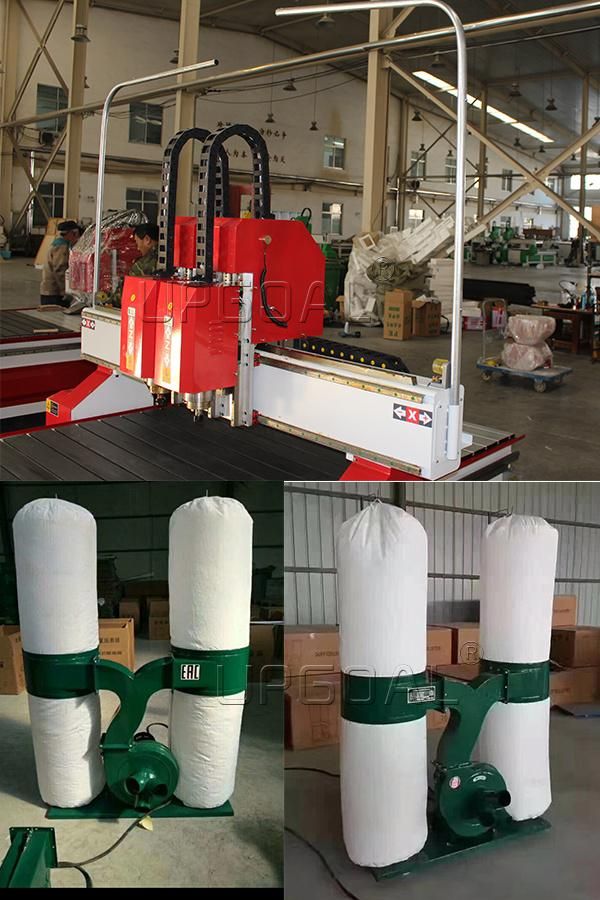

11. Dust collector 3.0kw double heads, help to suck dust, milling dust, keeps machine cleaning.

12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

13. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.

Technical Parameters

Reference Sample Photos

Reference Working Videos


https://youtu.be/viqjiJh7W2M



 For more information, just feel free to contact us!

     Jinan Upgoal Mechanical Equipment Co.,Ltd

upgoalcnc.en.made-in-china.com

     CNC Router/Laser Engraving Cutting Marking Welding Machine/Plasma Cutting Machine
