• Model NO.：1530B
• Customized：Customized
• Condition：New
• Color：Customized
• X,Y,Z Traveling Area：1500mm*3000mm*200mm
• Table Size：1500*3000mm
• Table Structure：Vacuumtable
• Guider：Taiwan Hiwin Square Rail
• X,Y,Z Guide Rail：X, Y Rack, Z Ball Screw
• Spindel Power：3.0kw Water Cooling Spindle
• Control System：Nc-Studio Control System(DSP)
• Working Voltage：AC380V, 50Hz
• Max Spindle Speed：24000rpm
• Warranty：24 Months with 24 Hours on-Line Technical Support
• Transport Package：Wooden Packing
• Specification：3KW water cooled spindle
• Trademark：Dragondiamond
• Origin：China
• Production Capacity：50 Set,Sets Per Month

Basic Info.

Model NO. 1530B Customized Customized Condition New Color Customized X,Y,Z Traveling Area 1500mm*3000mm*200mm Table Size 1500*3000mm Table Structure Vacuumtable Guider Taiwan Hiwin Square Rail X,Y,Z Guide Rail X, Y Rack, Z Ball Screw Spindel Power 3.0kw Water Cooling Spindle Control System Nc-Studio Control System(DSP) Working Voltage AC380V, 50Hz Max Spindle Speed 24000rpm Warranty 24 Months with 24 Hours on-Line Technical Support Transport Package Wooden Packing Specification 3KW water cooled spindle Trademark Dragondiamond Origin China Production Capacity 50 Set/Sets Per Month

Product Description

Factory Price Multi Head Cnc Router Engraving Machine 1530 For Wood Aluminum Copper Product Features
 Product SampleApplicable industries: The woodworking industry, the advertising industry, sheet metal products  industries batch processing.
Applicable material: organic glass board, PVC,KY board, wood, stone plate,sheet metal, artificial  synthetic board,acrylic etc plate type material processing.


Product parameter

NO.	Model	LZ-1530
1	Working area	1500x3000x200mm
2	Table size	1500x3000mm
3	Working table	Vacuum with PVC
4	spindle	2 pcs 3KW water cooled spindle
5	Cooling system	Water cooling
6	Control system	NC Studio
7	inverter	Fuling
8	transmission	X,Y Rack,Z-ball screw
9	Guide rail	Taiwan Square rail
10	Ball screw	TBI ball screw from Taiwan
11	Drive system	Leadshine driving system and stepper motor
12	Body	Welded steel T type structure as a whole
13	Spindle speed	24000r/min
14	Control software	Artcam/Type3,other CAD/CAM
15	Traveling speed	10m/min
16	Working speed	8m/min
17	Reposition accuracy	0.03mm
18	Command code	G Code*.u00*.mmg*.plt
19	voltage	AC220V/50HZ

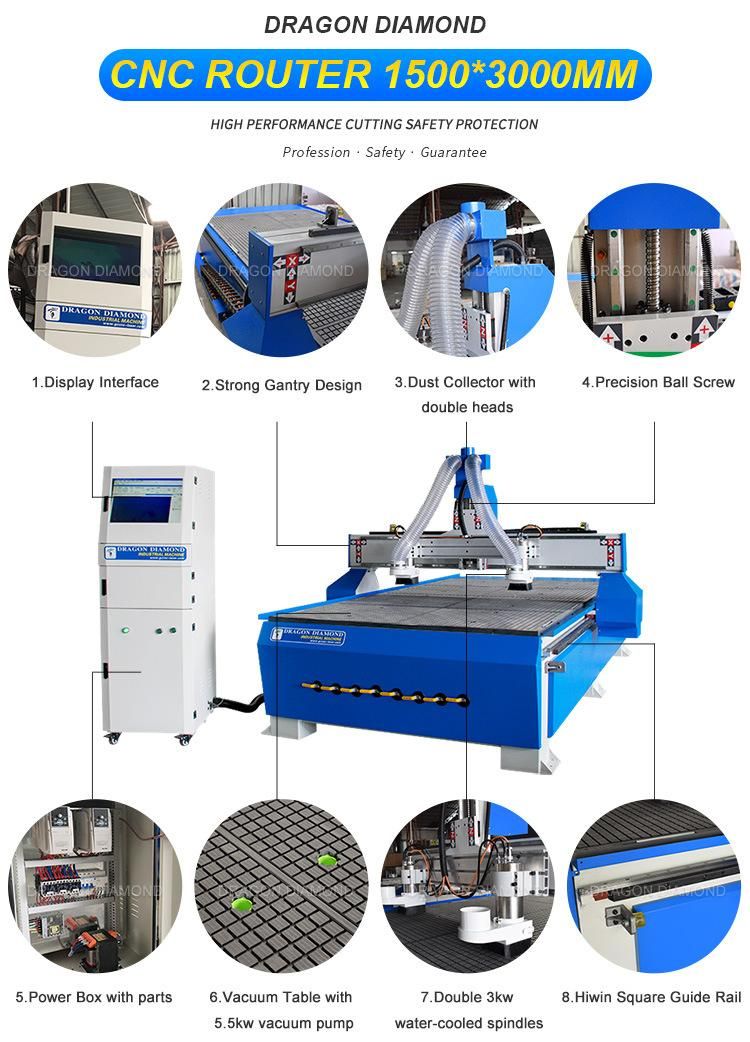

Key parts features of 1530 CNC Router
 Product showcase
Option parts





Please feel free to contact us for more information!
