• Model NO.：600
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Weight：800kg
• Power(W)：7.5kw
• Transport Package：Wooden Case
• Specification：1250*670*1300mm
• Trademark：Effort
• Origin：Henan, China (Mainland)
• Production Capacity：50 Set,Sets Per Month as Per Order Quantity

Basic Info.

Model NO. 600 Warranty 1 Year Customized Customized Condition New Color Multi Color Weight 800kg Power(W) 7.5kw Transport Package Wooden Case Specification 1250*670*1300mm Trademark Effort Origin Henan, China (Mainland) Production Capacity 50 Set/Sets Per Month as Per Order Quantity

Product Description

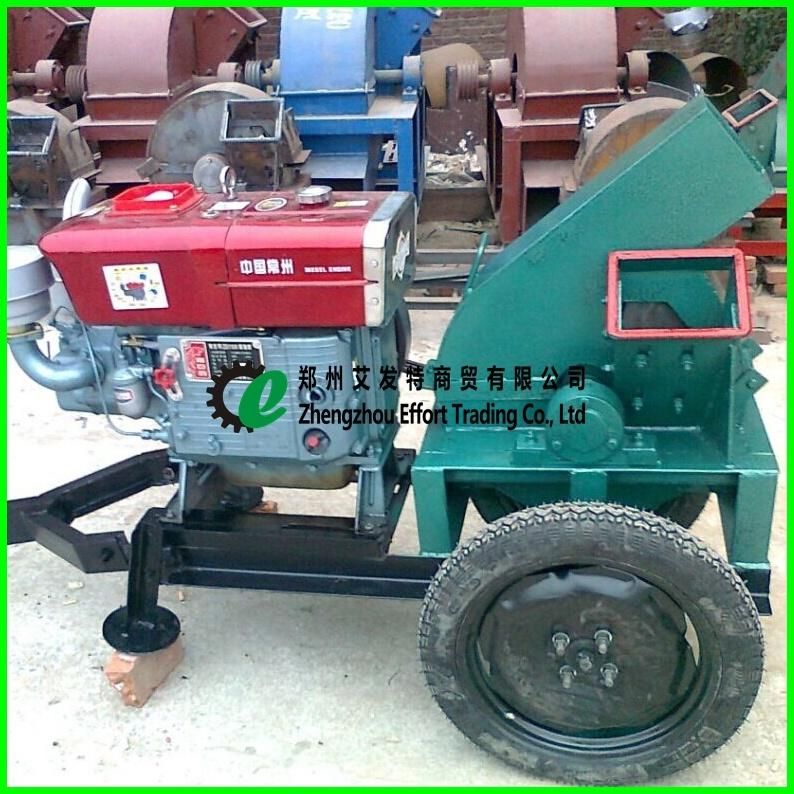

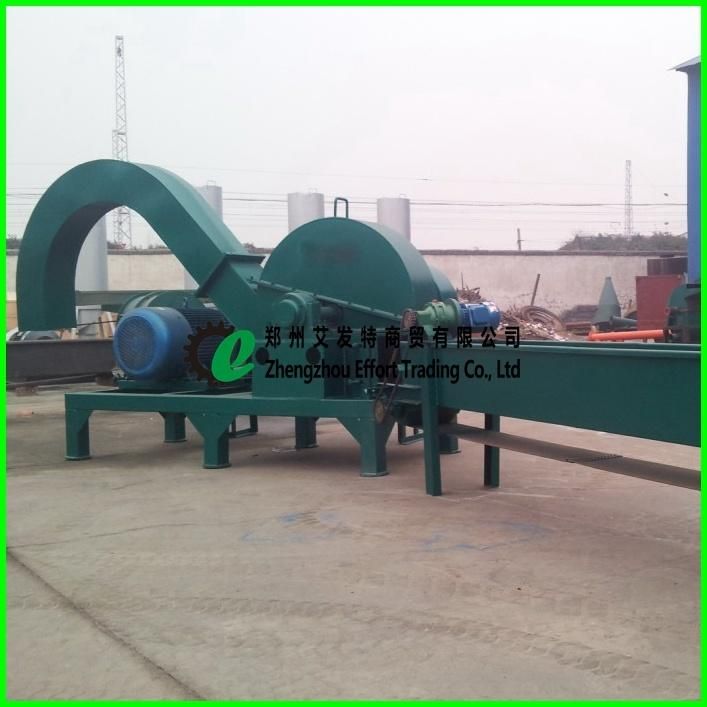

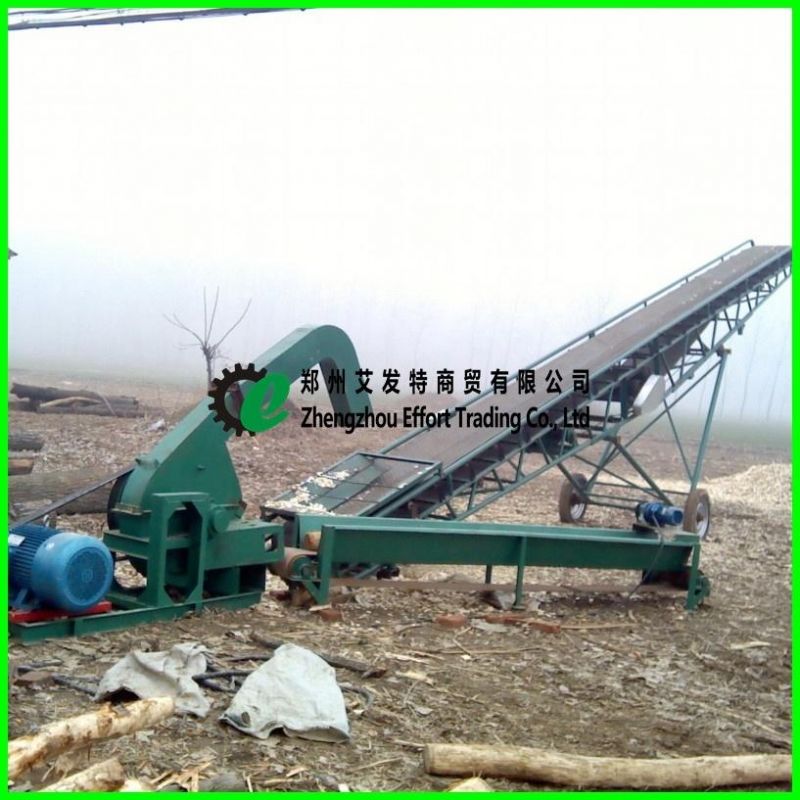

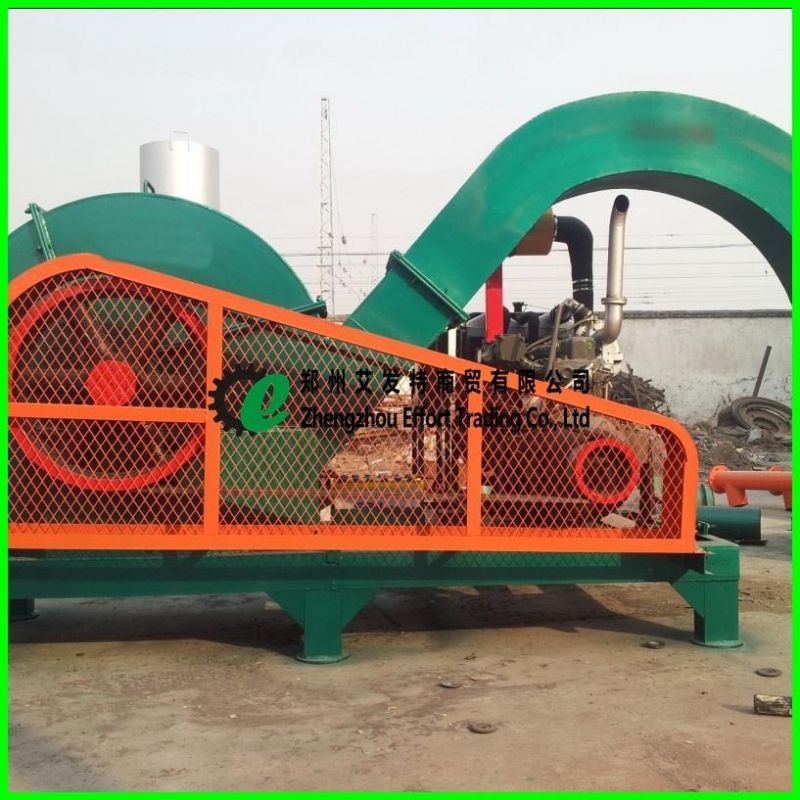

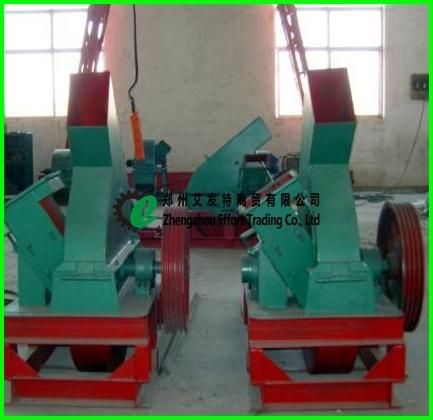

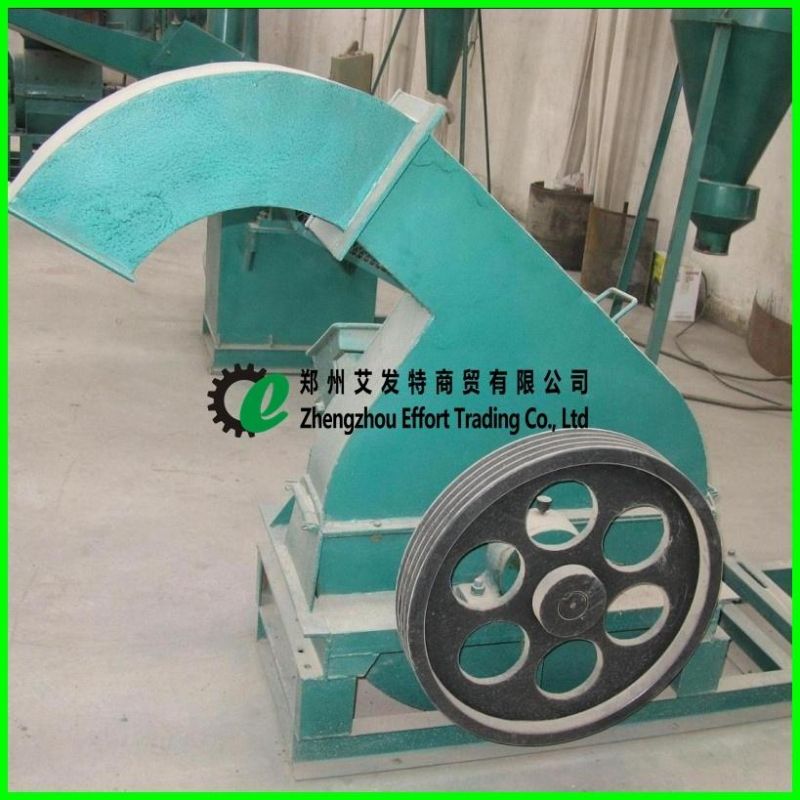

China supplier Wood Chipper Shredder Wood Chipper Machine
Introduction of Disk Timber Chipping Machine:
Disk timber chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.

Model	EFT500	EFT740	EFT800	EFT950
Quantity(sheet) of fly cutter	4	4	4	4
Power of diesel engine (HP)	12	30	40	47
Rotary speed of cutter head(r/min)	960	450	960	960
Diameter of cutter head(mm)	500	740	800	950
Maximum diameter of cutting wood(mm)	110	180	200	250
Length of final wood chips, thickness(mm)	15-35 2-3	15-35 2-3	15-35 2-3	15-35 2-3
Mode of feeding	Declination	Declination	Declination	Declination
Mode of discharging	Up	Up	Up	Up
Capacity (ton/hour)	1	2-3	3-5	4-6
Weight (kg)	600	800	950	1100
