• Model NO.：ZS2720
• Transport Package：Plywood Case Package
• Specification：2000kgs
• Trademark：Mars
• Origin：China
• HS Code：8458110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. ZS2720 Transport Package Plywood Case Package Specification 2000kgs Trademark Mars Origin China HS Code 8458110090 Production Capacity 300sets/Month

Product Description

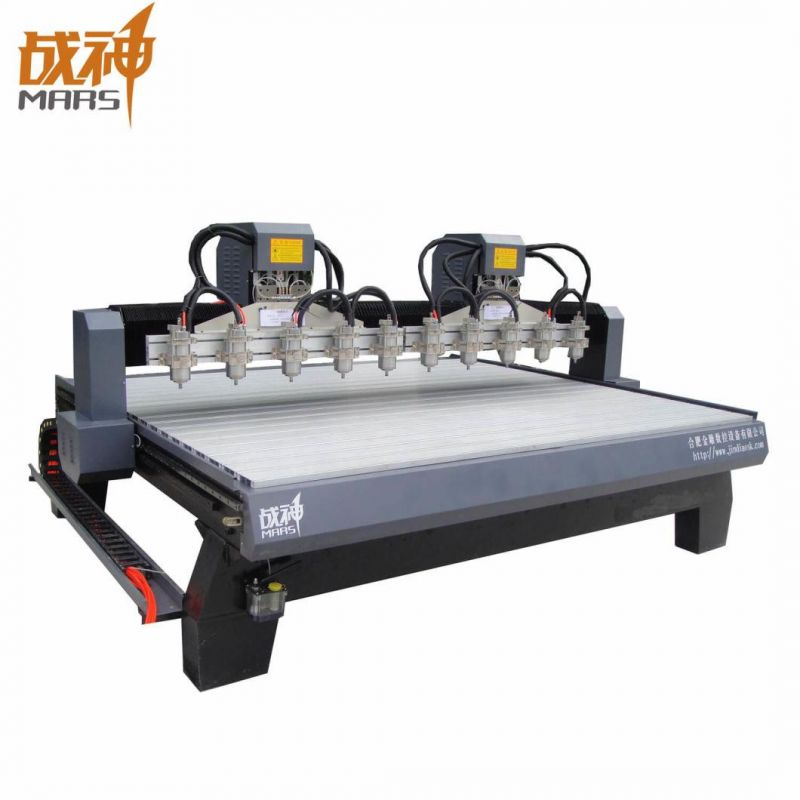

Furniture CNC Carving Machine/CNC Router Engraving Machine

Keywords: 15 years experience of production
                  ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                  Three Brands: Mars, Golden Eagle, Boiro
                  Technicist who go abroad to offer after-sale service




Technical Parameters:


Model	ZS-2720(Can be customized as your needs)
Working Stoke	2700mm*2000*160mm
Feeding Height	160mm-250mm
Table Structure	T-slot aluminum
Body Structure	Thick steel tube welded, w/ tempering
Spindle Power	800W~ 3.7KW frequency water-cooling spindle (Air-cooling motor, or Italy imported HSD motor is optional)
Spindle Speed	0 ~ 24000 rpm/min
Engraving Tool	¢3.175/4/6/12.7mm
Control System	NC Studio/ DSP
Drive System	Leadshine servo motor
Lubrication System	Automatic
Transmission	XY axis rack and pinion, Z axis ball screw
Guide Rail	Taiwan Hiwin rectangular linear rail
Transformer	630VA
Max Travelling Speed	20m/min
Max Processing Speed	15m/min
Dictate Format	G code/ HPGL
Working Accuracy	±0.02mm
Re-positioning Accuracy	±0.05mm
Working Environment	Temperature 0ºC ~ 90ºC, Humidity 30% ~ 75%
Working Voltage	AC380/ 3PH/ 50HZ
Net Weight	1500KG (Grey)
Machine Size	3400*2600*1700mm (Grey)

Performance Feature:

1. Standard imported linear guide rail, strong loading capacity, smooth operation, high accuracy.
2. Z-axis ball screw drive, high-precision, high wear resistance.
3. Equipped with automatic lubrication system, centralized lubrication. Reduce customer maintenance workload, greatly extend the rail life.
4. Adopt famous brand frequency water-cooling spindle, great performance, big torque, high efficiency.
5. Adopt brand motor and driver, Y-axis double-motor drive, with faster speed and better stability.
6. Compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JDPaint/ Wentai, etc..


Application:

Classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals.
