• Model NO.：MJ1440E
• Precision：Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Iron Grey
• After-sales Service：3 years
• Weight：2300kg
• Transport Package：Plywood Carton or Bulk Packing
• Specification：2800*1200*1600 (MM)
• Trademark：Qingcheng
• Origin：China
• HS Code：8465910000
• Production Capacity：20000,Sets

Basic Info.

Model NO. MJ1440E Precision Precision Certification CE, ISO Customized Customized Condition New Color Iron Grey After-sales Service 3 years Weight 2300kg Transport Package Plywood Carton or Bulk Packing Specification 2800*1200*1600 (MM) Trademark Qingcheng Origin China HS Code 8465910000 Production Capacity 20000/Sets

Product Description

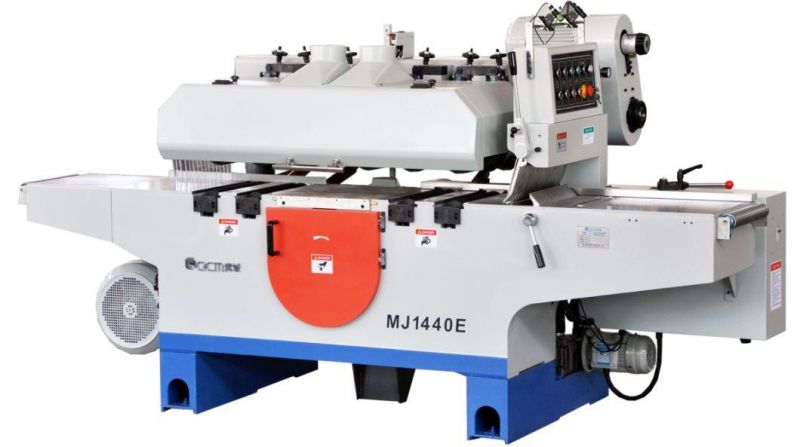

MJ1440E Woodworking Machinery Automatic Multi-Blades Rip Saw for Wet Wood

Application:
Our company has developed this bottom spindle multi-blade saw for wet material processing based on the needs of the round wood and lumber processing industry.

This machine has a maximum sawing width of 300mm and a maximum sawing thickness of 115mm, which is especially suitable for multi-blade sawing of wet materials, with a brighter and more efficient surface than the ordinary band saw, which is the ideal equipment for upgrading and replacing. It can insure high efficiency and energy saving in round wood processing industry.

Outstanding features:
1) The machine body and workbench are made of high-quality castings, which are specially cast and precision-machined, with stable performance and good precision.

2) The spindle adopts special material, φ50mm diameter and long wheelbase design, and is precision processed, dynamically balanced and precision assembled, which is stable, durable and accurate.

3) The worktable adopts 450mm wide worktable, which is convenient for the user to process the rough board and large board.

4) The feeding system is equipped with 6 sets of upper feeding rollers and 4 sets of lower flat tooth active feeding rollers to ensure smooth and powerful feeding.

5) Electric lifting mechanism is used to lift the saw shaft parts, which is convenient and quick to operate.

6) Feeding adopts the belt infinitely variable transmission and universal coupling drive, easy to adjust, stable feeding.

7) The front of the machine feed is equipped with a triple backstop and rebound safety device to ensure safer operation.

8) Configure the air and water spraying mechanism under the base to cool the saw blade to improve the service life and durability of the saw blade.

9) Configure two laser marking machines above the feed, so as to facilitate the user to set up the feeding and processing of the round wood slats.

10) the use of centralized manual lubrication pump, the sliding and to the parts of the centralized oil lubrication, to ensure that the sliding position does not rust, sliding, flexible rotation.

11) Optional configuration: -T type adopts frequency converter to adjust the feeding system, which is convenient and quick to operate.


1. Technical parameters : MJ1440E Automatic Multi-blades Rip Saw




Max.working width	300	mm
Working thickness	10-115	mm
Min. working length	450	mm
Min. working length (single / continuous)		mm
Saw spindle Dia.	Φ50	mm
Reducing sleeve Dia.	Φ70	mm
Saw spindle speed	3800	r/min
Blad dia.	Φ255-Φ405	mm
Feeding speed	8-33	mmin
Total power	42.557	kWHP
Feeding motor	45.5	kWHP
Spindle motor	3750	kWHP
Lifting motor	0.751	kWHP
Beem lifting motor		kWHP
Saw spindle lifting motor	0.550.75	kWHP
Air supply pressure	0.3-0.6	MPa
Suction hood dia.	4*Φ140	mm
Overall dimension	3050*1350*1650	mm
Weight	2350	KG

2. About Qingcheng Woodworking Machinery:

Qingcheng Woodwokring Machinery Co., Ltd is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to the top and most powerful manufacturer of woodworking machinery in China.

We mainly engaged in six series of woodworking machinery:
Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoner , and Sanding Machine

To make machinery with high precision and stability, we have introduced the world's advanced modern processing and testing equipment, including OKUMA five-surface gantry machining-center, FMS flexible machining production line, MAKINO horizontal machining center, MORI SEIKI(nine-axis linkage) lathe-mill cutting center, LGMazak vertical machining center, Mitsubishi laser cutting machine, OKK large machining center, Okamoto CNC grinding center, and Mitutoyo three coordinate measuring machine.













3. Our Products:

A: Four Side Moulder



B: Double Side Planer



C: Rip Saw



D: Planing and Sawing Machine




E:Double-end Tenoining Machine




F: Sanding Machine
