• Model NO.：LGN-HP400T15D
• Transport Package：Null
• Specification：steel
• Trademark：LGN
• Origin：China

Basic Info.

Model NO. LGN-HP400T15D Transport Package Null Specification steel Trademark LGN Origin China

Product Description

Advantages of Hot Press Machine:

-High Production Capacity;
-High Efficiency & Easy to Operate;
-High Quality & Simple Double-frame Structure;
-Combined Frame Structure, Easy for Installation.

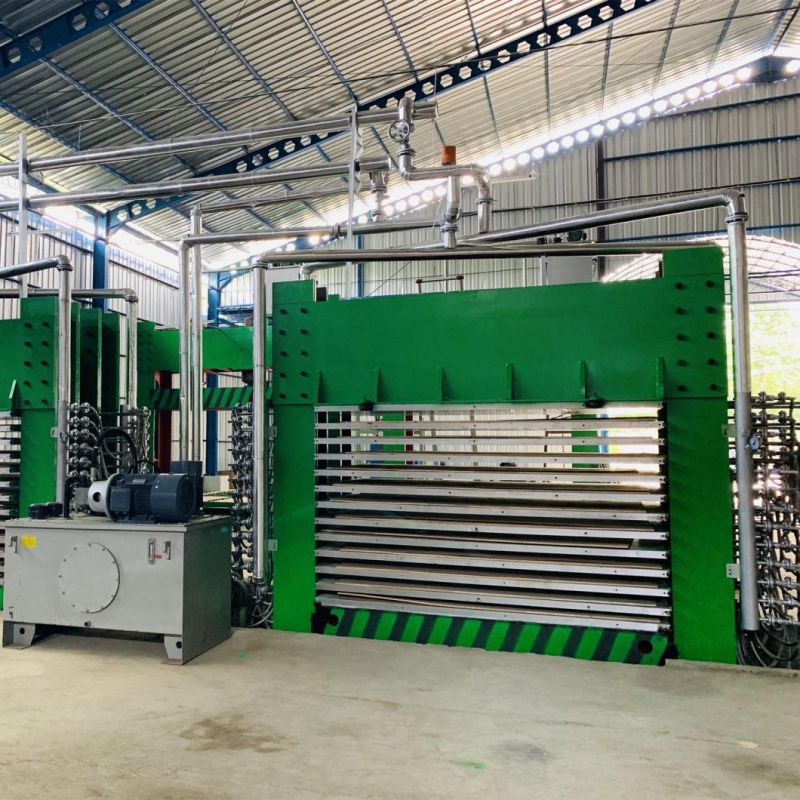

500T Hydraulic Plywood Hot Press Machine/ Melamine Lamination Machine/
Plywood Press Machine /Woodworking Machine



1	Total pressure	5000 KN
2	Board size	2440 *1220 mm
3	Up heating platen size	1370*2700*52mm
4	Heating Way	double inlet & outlet
5	Daylight opening	70 mm
6	Hot press layers	10
7	Hot press platen quantity	11
8	Total Installed Capacity	11KW-4
9	Closing time with loading	15 s
10	Thickness of frame steel platen	40 mm (Q235 STEEL)
11	Structure	Combined frame structure
12	Weight of Machine	Approx. 34 tons
13	Dimension	1370*3550*4600mm
14	Device Framework	Top Rail: 900mm  Bottom End Rail: 900mm  Middle Crossbeam: 400mm
15	Hydraulic System	Standard hydraulic station

Lamination Section

      1.Main Cylinder (2 sets)
Model Number: 360*1400mm
Oil Cylinder Origin: Wuxi
Rated Working Pressure: 26Mpa

      2.Hydraulic System
High Pressure Pump: 10MCY
Fast Low Pressure Pump: 2 sets

      3.Electric Machine
Quick Pump Model: 11kw-4
Quantity of Oil Pump Motor: 2 sets
High Pressure Pump Motor Model: 7.5kw-4
Quantity of Pump Motor: 1 set
Origin of Motors: Shanghai

      4.Control System
Control Mode:PLC Automatic Computer Program Control
Display and PLC: Ucontrol
Other Original Electrical Components:  Delixi
6 times holding pressure and timing

      5.Hot Press Plate Technical Data
Hot Platen Size:2700*1370*52mm
Hot Platen Oil Road: double inlet & outlet
