Electric Motor Biomass Pellet Press Machine Wood Pellet Mill Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Pellet Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:Artificial
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:WZLH420
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Multi Color
  • After-sales Service:Engineer Available
  • Capacity(T/H):0.8-1.2
  • Main Power(Kw):90
  • Pellet Size(mm):6-8
  • Power of Screw Feeder(Kw):3
  • Power of Force Feeder(Kw):1.5
  • Transport Package:Iron Pallet and Soft Guard
  • Specification:CE, ISO9001, SGS
  • Trademark:FDSP
  • Origin:Jiangsu, China (Mainland)
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. WZLH420 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity(T/H) 0.8-1.2 Main Power(Kw) 90 Pellet Size(mm) 6-8 Power of Screw Feeder(Kw) 3 Power of Force Feeder(Kw) 1.5 Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

Electric Motor Biomass Pellet Press Machine Wood Pellet Mill Machine
Application
1. It is widely used to make pellets from light substance, such as wood chips,
sawdust, straw, pasture, Chrysanthemum, palm leaf and so on;
2. The feeder's especial structure
Makes materials conveyed evenly, it is specially designed for pellet of light substancewith the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute
Are made of stainless steel with long service life;
4. It is with magnet and over load protection system, which protects the machine
during production;
5. Feeder
Has a variable speed controller to meet different outputs requirements;
6. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared
to a machine with a belt conveyer;
7. The bearing and oil seal in the main drive
Are imported from Japan to ensure highly-efficient, stability and high quality;
8. The alloy steel die
Is with international advanced equipment and techniques, and has long service life,
and can make slippery pellets of the highest quality.
9. The Lubrication System
Is made up of the tracing and inspecting system controlled by the microcomputer,
auto-lubricating system on time and compelled lubricating system by hand.


Ring die wood pellet mill is the most important process in the wood pellet productionline.It is widely used in compacting of wood, straw, other biomass sources into pellet.
Capacity ranges from 1T to 10T per hour.
Our wood pellet mill adopt Imported bearings from Sweden, the main motor is from Siemens, high quality components make the pellet mill more efficient and
durable.

Electric Motor Biomass Pellet Press Machine Wood Pellet Mill Machine

Main Technical Parameter
ModelWZLH420WZLH520WZLH680WZLH780
Capacity(T/H)0.8-1.21.5-1.82-2.52.5-3.5
Main motor power(kw)75/90110/132160/185200/220
Feeder power(kw)2.2344
Ring die dia(mm)420520680780
Pellets dia(mm)6-86-86-86-8

Usage of Wood Pellet
Fuel for Burning(85-90%)
Hole 6/8/10mm: Household stoves
Hole 8/10mm: Industrial

Heating value: 17.5-19.5MJ/kg.
Density: 1.1-1.5kg/cm3
Moisture: ≤ 8%.
Ash content: <1.5%.

About Us

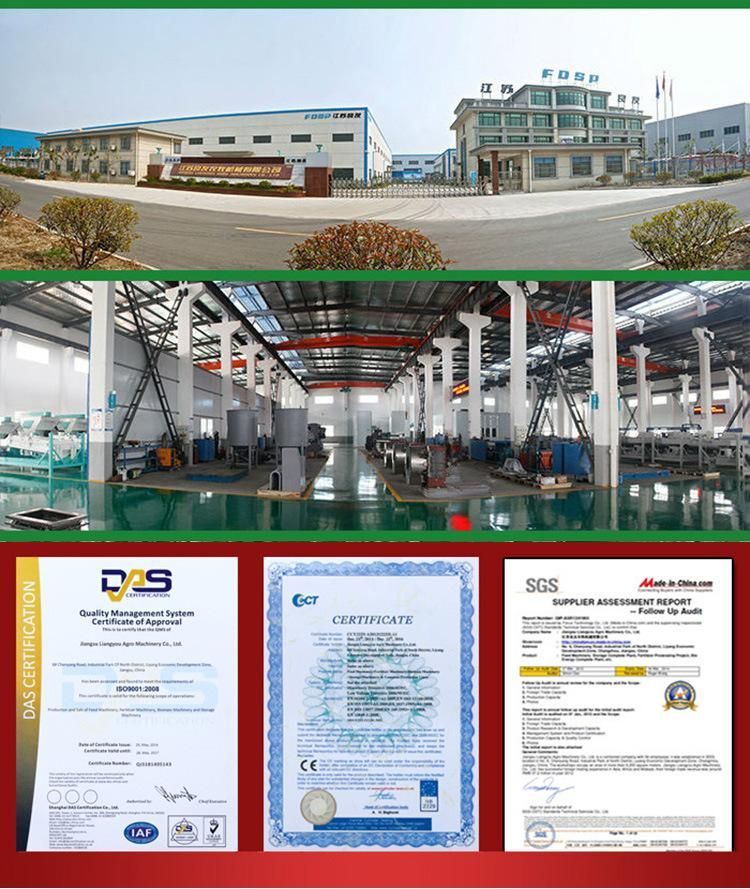

Jiangsu Liangyou Zhengda Co., Ltd is affiliated to Jiangsu Liangyou Agro Machinery Co., Ltd which has about 20 years of experience in the comprehensive development and utilization in agriculture field. It covers an area of 15000 square meters, locating in the zhongguancun science &technology industrial park in Liyang City, JiangSu Province, PRC.
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.

Electric Motor Biomass Pellet Press Machine Wood Pellet Mill Machine

Customers From All Over The World
We insist on "Faith & Federation , Develop & Creativity, Service & sincerity , Pluck & Prestige " ,also we own outstanding R&D team with the sense of innovation and cooperation.
Electric Motor Biomass Pellet Press Machine Wood Pellet Mill Machine

Our Service
Warranty:1 year
Our professional service includes: Free training, Guidance Installation and Debugging.
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.


Certifications
FDSP has obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification.

FAQ
1.Q:Are you a factory or trading company?
A:We are a factory .
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai.You can fly to Shanghaiairport directly.All our clients, from home or abroad, are warmly welcome to visit us!
