Expert Supplier Heavy Duty Thicknesser Planer

Shijiazhuang Chancsmac Machine Technology Co., Ltd.
  • Warranty：Free Service on Internet
  • Type：Double-sided Pressure Planer
  • Working Depth：8mm
  • Working Width：630mm
  • Drivetrain：Feed Drivetrain
  • Enter Method：Mechanical

Base Info

  • Model NO.：CH106C
  • Motor Power：11kw
  • Cutter Shaft：2
  • Spindle Speed：＜5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Feeding Speed：3-18m,Min
  • Max Planning Width：630mm
  • Max Planning Depth：8mm
  • Mini Planning Length：220mm
  • Working Thickness：5-255mm
  • Weight：1000kg
  • Transport Package：PE Film
  • Specification：1600*1380*1430mm
  • Trademark：CHANCSMAC
  • Origin：China
  • HS Code：8465920000
  • Production Capacity：20 Sets,Month

Description

Basic Info.

Model NO. CH106C Motor Power 11kw Cutter Shaft 2 Spindle Speed ＜5000rpm Process Type Heavy Processing Certification CE, ISO Feeding Speed 3-18m/Min Max Planning Width 630mm Max Planning Depth 8mm Mini Planning Length 220mm Working Thickness 5-255mm Weight 1000kg Transport Package PE Film Specification 1600*1380*1430mm Trademark CHANCSMAC Origin China HS Code 8465920000 Production Capacity 20 Sets/Month

Product Description

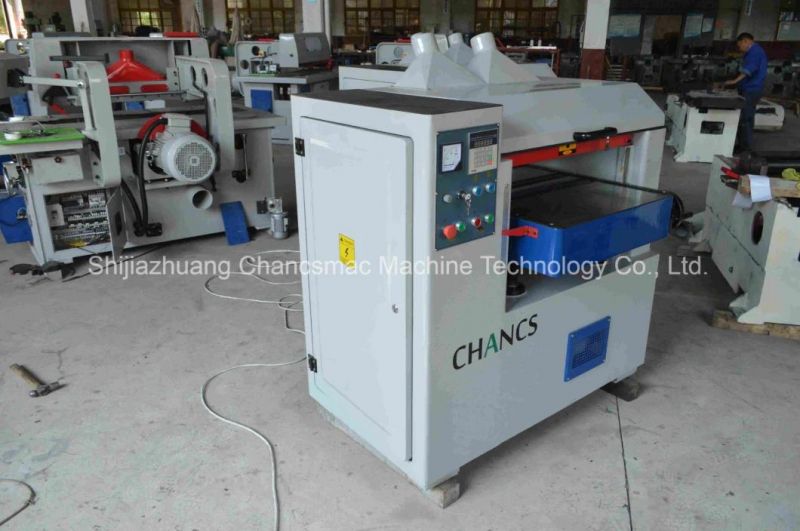

Expert Supplier Heavy Duty Thicknesser Planer

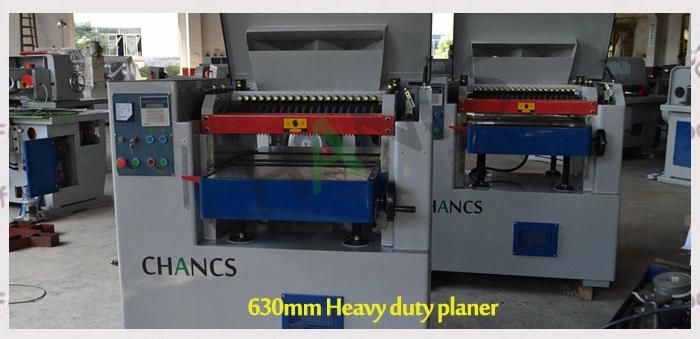

630mm Wide Thicknesser Planer1.Feature:
1. Heavy duty design, stable and more durable
2. Digital display and keyboard design for thickness setting, high precision

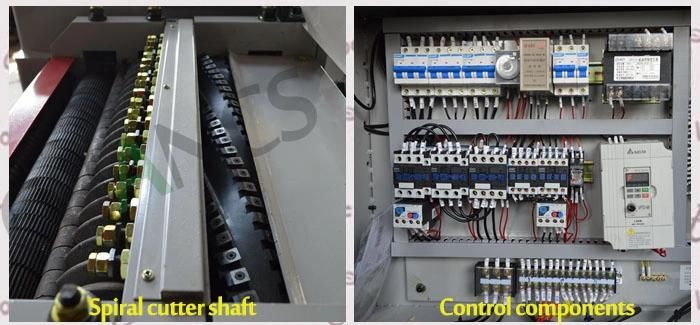

3. Spiral cutter shaft with 6 grooves blades can make sure low noise, smooth planning and high efficiency running
4. Machine is equipped inverter, the feeding speed can be adjusted accordingly and conveniently
5. Planer working table is supported by 4 pieces pillars, lifting stable and precision.
Expert Supplier Heavy Duty Thicknesser Planer

2.Parameter:
ModelCH106C
Spindle speed5000r/min
Feeding speed3-18m/min
Max planning width630mm
Max planning depth8mm
Mini planning length220mm
Working thickness5-255mm
Motor power11KW
Lift motorYes Auto lifting. With digital display and precision thickness setting
Weight1000kg
 Stepless speed

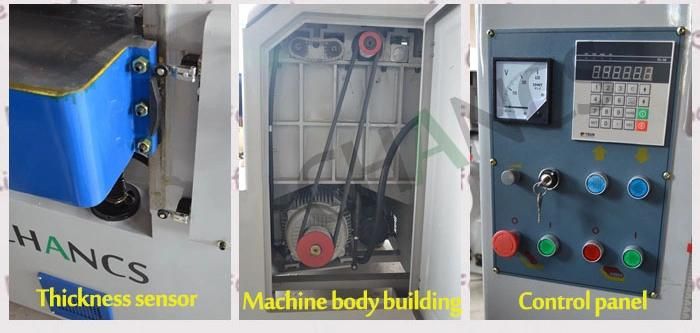

3.Detailed Images:
Expert Supplier Heavy Duty Thicknesser PlanerExpert Supplier Heavy Duty Thicknesser PlanerExpert Supplier Heavy Duty Thicknesser Planer

4. After-sale service:
1. Engineers available to serve and train customers overseas.
2. Machine guarantee is one year.
3. English manual and PPT installation and operation file with pictures step by step.
4. Whole life technical support for CHANCSMAC machinery.

5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1.  Q: What's the MOQ?
      R:  One set will be ok.
2.  Q: Provide customized machine Yes or NO?
     R: Yes. We have professional designers and engineers to supply customized machines.
3.  Q: What is payment terms?
     R: 30%T/T in advance, the balance paid before shipment after inspection.
4.  Q: What is the warranty time?
     R: One year.
5.  Q: Do you have the machine running video?
     R: https://youtu.be/6ohnaurv5aI
