• Model NO.：UG-1516WL
• Controlling Mode：CNC
• Power Source：Pneumatic
• Processing Accessory：Chuck CNC Lathe
• Certification：CE, ISO
• Maximum Processing Length：1500mm(or 2000mm,2500mm,3000mm or Customzied)
• Maximum Turning Diameter：300mm( Not for Processing Diameter, That Depends O
• Air Pressure：0.6-0.8MPa
• Maximum Processing Speed：2000mm,Min
• Minimum Processing Unit：0.001mm
• Transmission：X, Z-Axis : Lead Ball Screw, Y-Axis: Rack and Pini
• Spindle Power：3.5kw Air Cooling
• Control System：DSP Offline
• DSP Offline：Stepper Driver, Yako
• Drawing Software：Autocad
• Transport Package：Plywood Case
• Specification：3100*1200*1700mm, 1600kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：8465100000
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. UG-1516WL Controlling Mode CNC Power Source Pneumatic Processing Accessory Chuck CNC Lathe Certification CE, ISO Maximum Processing Length 1500mm(or 2000mm/2500mm/3000mm or Customzied) Maximum Turning Diameter 300mm( Not for Processing Diameter, That Depends O Air Pressure 0.6-0.8MPa Maximum Processing Speed 2000mm/Min Minimum Processing Unit 0.001mm Transmission X, Z-Axis : Lead Ball Screw, Y-Axis: Rack and Pini Spindle Power 3.5kw Air Cooling Control System DSP Offline DSP Offline Stepper Driver, Yako Drawing Software Autocad Transport Package Plywood Case Specification 3100*1200*1700mm, 1600kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 8465100000 Production Capacity 150 Sets/Month

Product Description

Turning Broaching Engraving Wood Lathe Machine with Double Axis Double Blade

Applications

Suitable for handrail, vase,table leg, European style furniture, Roman pillar, wooden clothes hanger & washbasin, kingpost, aisle column, waist drum, solid wood furniture, solid wood stairs, home decoration,wooden decoration, wooden artware,columniform conical, arc-shaped, sphere,ect all kinds of solid of revolution wooden product or semi-finished wooden products.

Materials can be processed: all kinds of wooden materials, such as beech, oak, ailanthus birch,teak, sapele, fraxinus mandshurica, merbau, sandalwood,bubinga, ect.

Features

High efficiency,high surface finish,big diameter turning broaching engraving wood lathe machine

Double workpiece, double blades, can turning two pieces at same time, the efficiency is two times of single axis wood lathe machine.

Matched specialized guide bracket, reduce the radial run-out during processing, high surface finish.

Can adjust each blades turning proportion at random according to processed materials, reducing the workpiece bounce and vibration, increasing the turning wood finish.




Numerical control frequency conversion, energy-saving power, adjusting speed timely, multistage safe protection

Adopting high performance inverter, frequency conversion, step-less speed change, adjusting turning speed timely according to workpiece's diameter, saving power.

Multistage safe protection, protect motor and machine effectively, ensuring machine working under the normal loading.

USB connection, easily to change the pattern, no need programming at site, system can upgrade

Easy drawing,just draw the easy pattern, then can process, no need complicated programming.

System can upgrade with USB disk file, realizing remote redact and local operation.

Supporting single blade, double blades one time process, no need complicated program to finish multiple different turning, meets with different workpiece requirement, easy and fast.

Pause and memory function, more convenient for inspect workpiece processed quality( precision and finish), timely adjusting.

Specialized CNC control high precision control system, easy to operate, short leaning, no need specialized knowledge, fast processing speed and good uniformity of finished products.

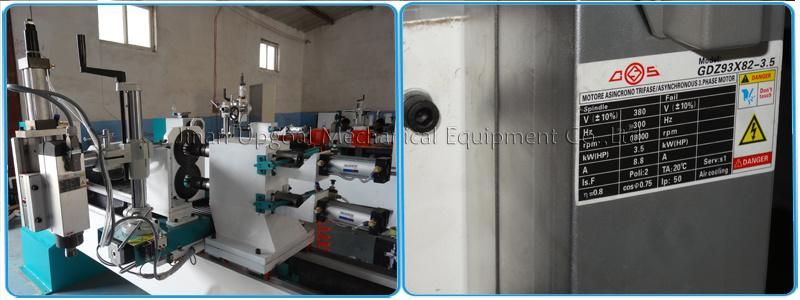

Cast iron machine bed, less deformation and stable transmission

Machine bed's design & processing is standard according to processing machine norm, adopting one time casting, aging treatment, less deformation, increasing machine using stability.

High performance belt transmission, ensuring workpiece quality and machine life time.

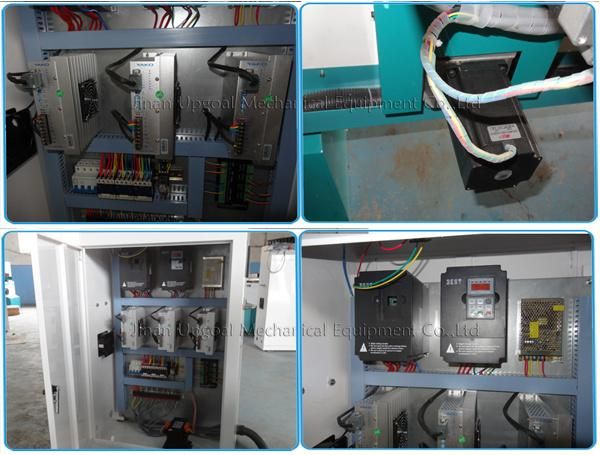

Air cooled electronic control cabinet, lowering the temperature of control cabinet effectively, long time all electronic component life time.


Technical Parameters

Maximum processing length	1500mm(or 2000mm/2500mm/3000mm or customized)
Maximum turning diameter	160mm( not for processing diameter, that depends on material, finished product shape and others)
Air pressure	0.6-0.8Mpa
Maximum processing speed	2000mm/min
Minimum processing unit	0.001mm
Transmission	X, Z-axis : lead ball screw, Y-axis: rack and pinion

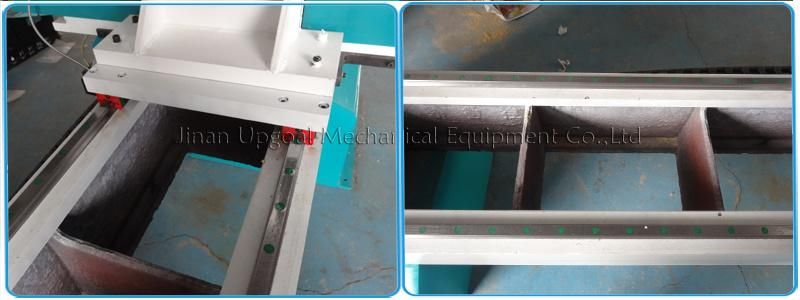

Guide rail	Hiwin, Taiwan
Spindle turning speed	0-3000rpm
Motor power	4kw
Blades material	Superhard alloy
Control system	DSP offline
Motor	Stepper motor
Driver	Stepper driver, Yako
Inverter	Best, China
Drawing Software	AutoCAD

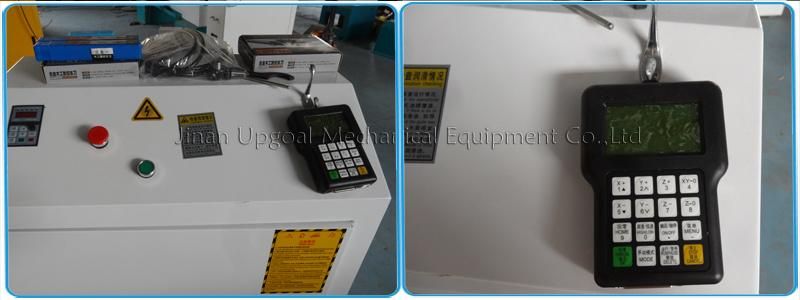

Hand controller recognize file	*.dxf
Voltage	AC 380V, +10%, 50/60Hz, three phases or AC 220V, +10%, 50/60Hz, single phase
Machine size	3000*1000*1400mm
Packing size	3100*1200*1600mm
N.W	1500kg
G.W	1600kg
Certificate	CE

Reference Samples



Reference working videos


https://youtu.be/dWx0sUDnVRE

https://youtu.be/rtoTMy73s2k

For more information, just feel free to contact us!
