Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:2year
  • Type:Brush Sanding Machine
  • Automatic Grade:Automatic
  • Variable Speed:Variable Speed
  • Certification:CE, ISO
  • Customized:Customized

Base Info

  • Model NO.:SK1000-P6
  • Condition:New
  • Color:Customized
  • After-sales Service:24hours Online
  • Name:Heavy Duty Brush Sanding Machine
  • Max. Working Width:1000 mm
  • Min. Working Length:500 mm
  • Working Thickness:2-150 mm
  • Belt Size:1330*2200 mm
  • Total Power:13.87kw
  • Products:Door, Carbinet, Photo Frame .Drawer Frame
  • Transport Package:Stretch Film
  • Specification:3650*1850*2100mm
  • Trademark:SOSN
  • Origin:China
  • HS Code:84659300
  • Production Capacity:200 Sets,Month

Description

Basic Info.

Model NO. SK1000-P6 Condition New Color Customized After-sales Service 24hours Online Name Heavy Duty Brush Sanding Machine Max. Working Width 1000 mm Min. Working Length 500 mm Working Thickness 2-150 mm Belt Size 1330*2200 mm Total Power 13.87kw Products Door, Carbinet, Photo Frame .Drawer Frame Transport Package Stretch Film Specification 3650*1850*2100mm Trademark SOSN Origin China HS Code 84659300 Production Capacity 200 Sets/Month

Product Description

Woodworking Automatic Brush Sanding Machine for Wood Door Floor
Wood Sanding Machine Cabinet Door Brush Polish Sanding Machine
---Ideal polish machine for white wood, sealer, primer, MDF, and composite sanding applications for both flat and irregular surfaces.

Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor
1.different voltage is available
2.have button control and touch screen control optional ,different language support
(the touch screen model have momery function ,can save 30 groups size which no need adjust the size each time )
3.the work width have 1000mm and 1300mm optional
4.can add dust brush device
5.vacuum table optional for small panel which less than 30cm (please confirm with us about it )
6.consume goods sugguest to buy with machine together


feature :

1 . Vertical and horizontal combination of special-shaped sander can effectively solve the carved furniture parts, and the cabinet door vertical sand marks problem.
 2 This model uses foreign modular design concept, touch screen + PLC control, each group of sanding units are used frequency control to meet the requirements of different parts processing technology, so that sanding effect is more perfect.
3. Each group of sanding unit is designed to be out of the sand frame, you can more easy to  change the  sandpaper or sanding parts, easy maintenance operations.
4. . There are two sets of lifting devices in this model. The first set of devices can make the overall table up and down to achieve the overall adjustment of the height of the sand frame, the second set of devices can make each group of sanding unit alone lift, in order to meet the requirements of different workpiece sanding process, sanding effect more perfect.

Main parameters :

Working  width

1000mm

Min.Working  length

500mm

Working  thickness

2-150mm

Polishing roller speed

Frequency

Feeding  speed

3-12.5m/min

Total  motor  power

13.87kw

Overall dimensions

3650*1850*2100mm



Net weight

4200kg

Disc motor

 1.5KW*1

Cross motor

 1.5KW*2

Screw roller motor

 2.2KW *2

Up and down motor

 0.37KW*4

Table up and down motor

 0.55KW

Feeding motor

2.2KW

Swing motor

 0.37KW *2

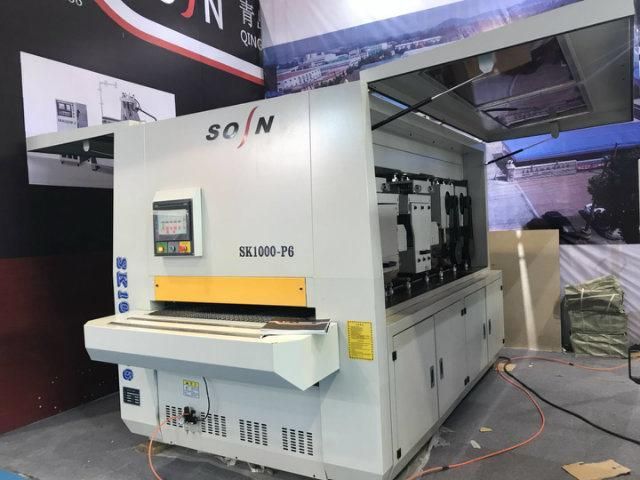

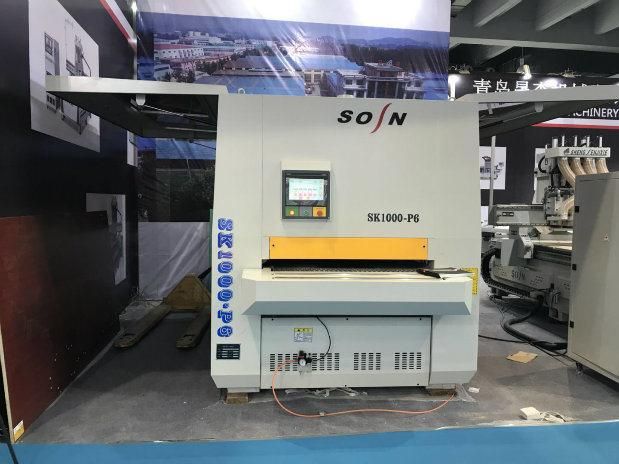

machine in germany exhibition:

Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor

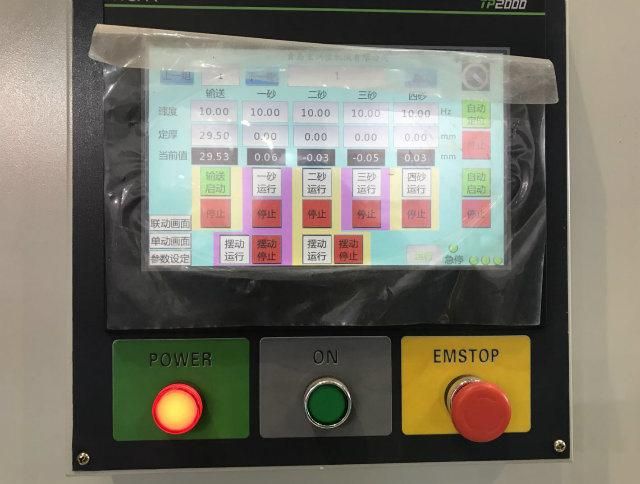

Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor(touch screen page reference)

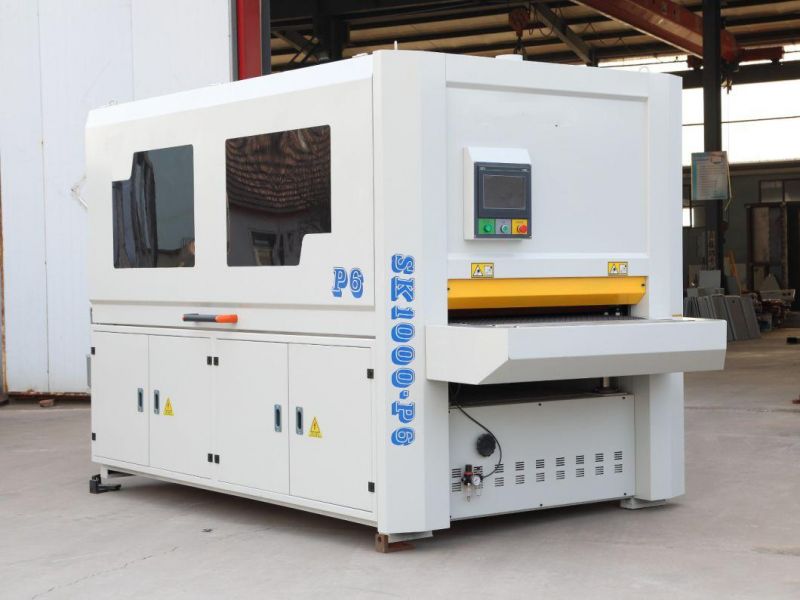

Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor

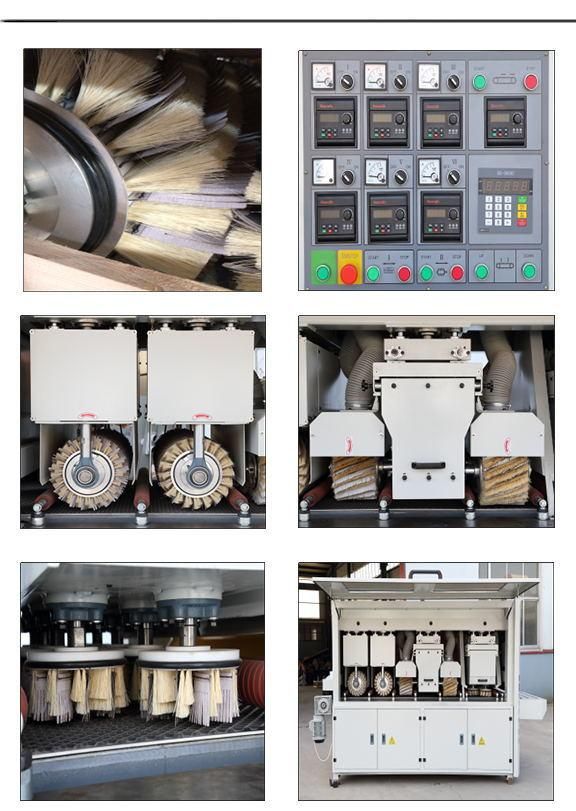

inner structure:
Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor

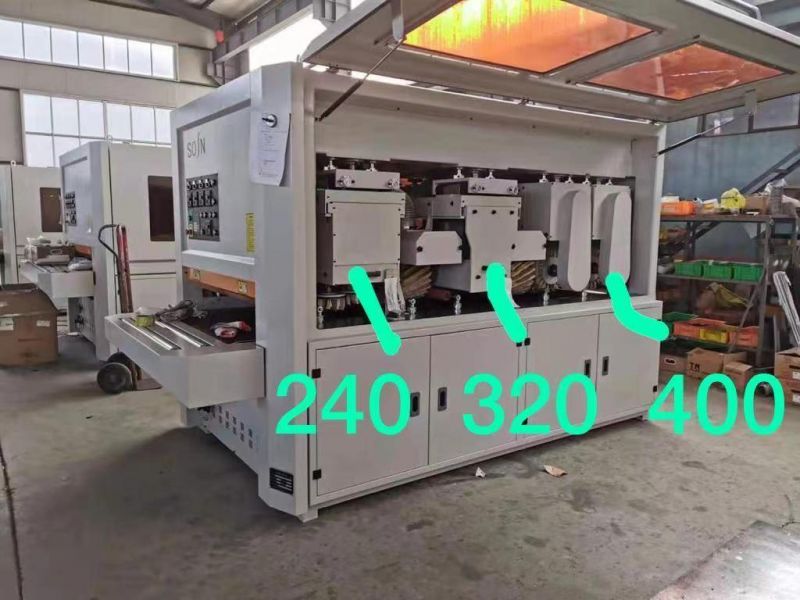

(that is the standard grid of each roller we matched ,but can adjust as your different work need )
Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor   (import sanding belt and mexico Switzerland sisal,in high quality)

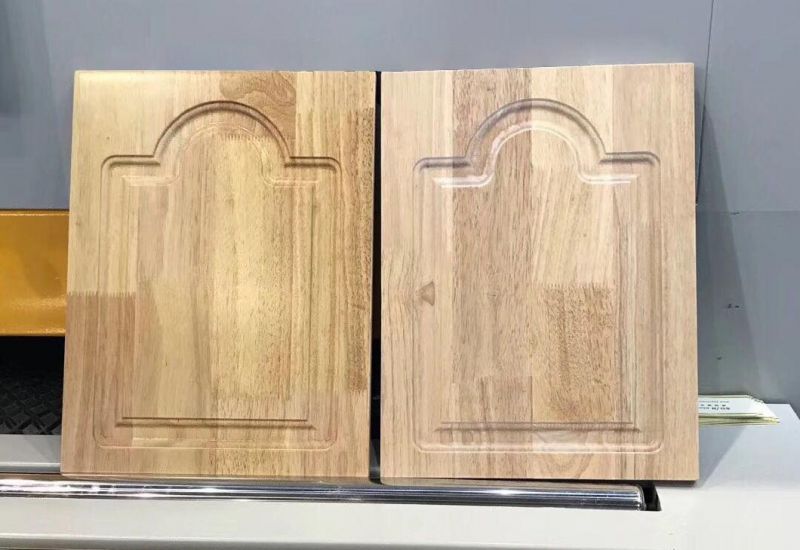

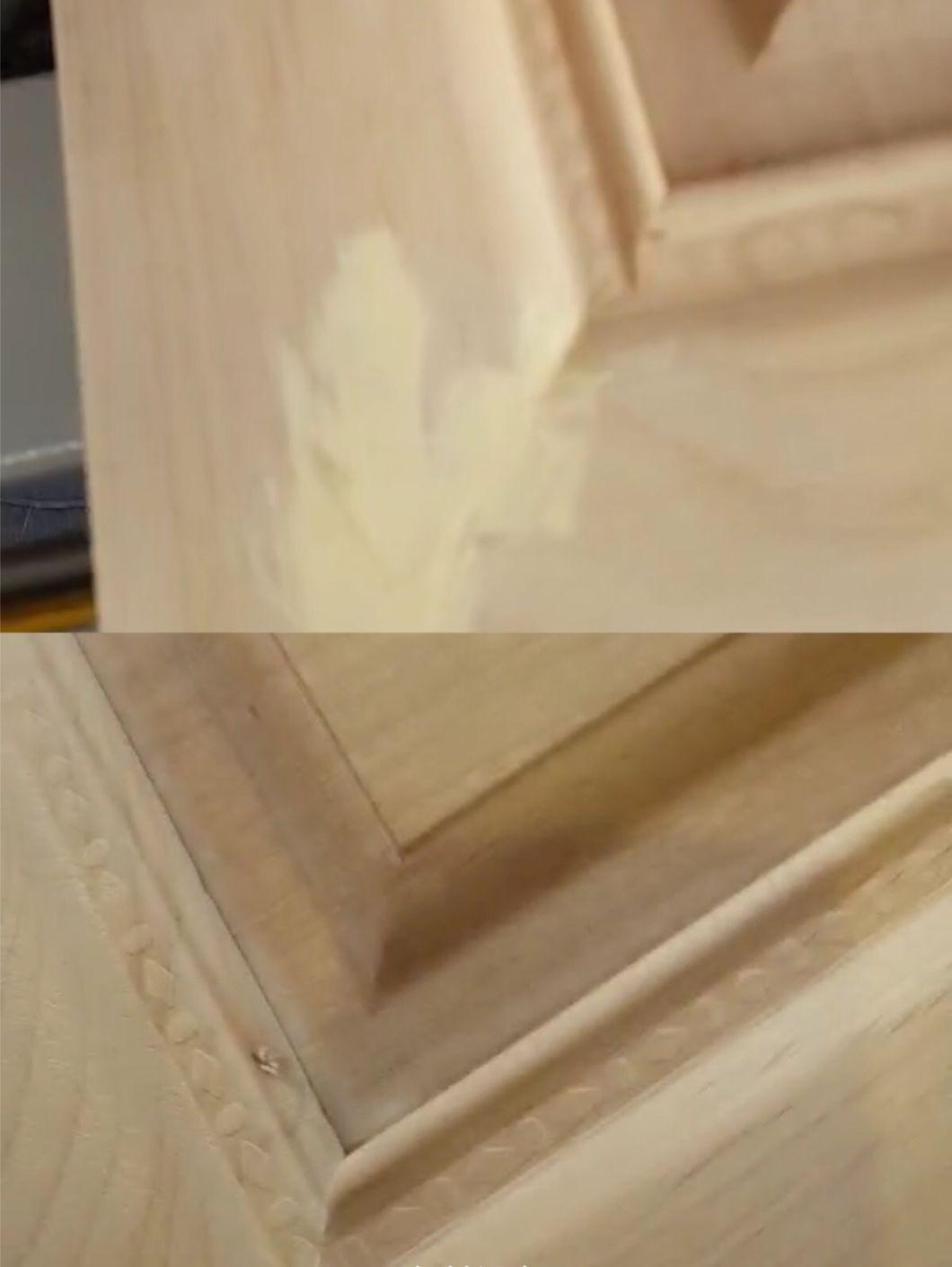

 sanding effect:
 Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door FloorWoodworking Automatic Brush Sanding Machine Brush Sander for Wood Door FloorWoodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor

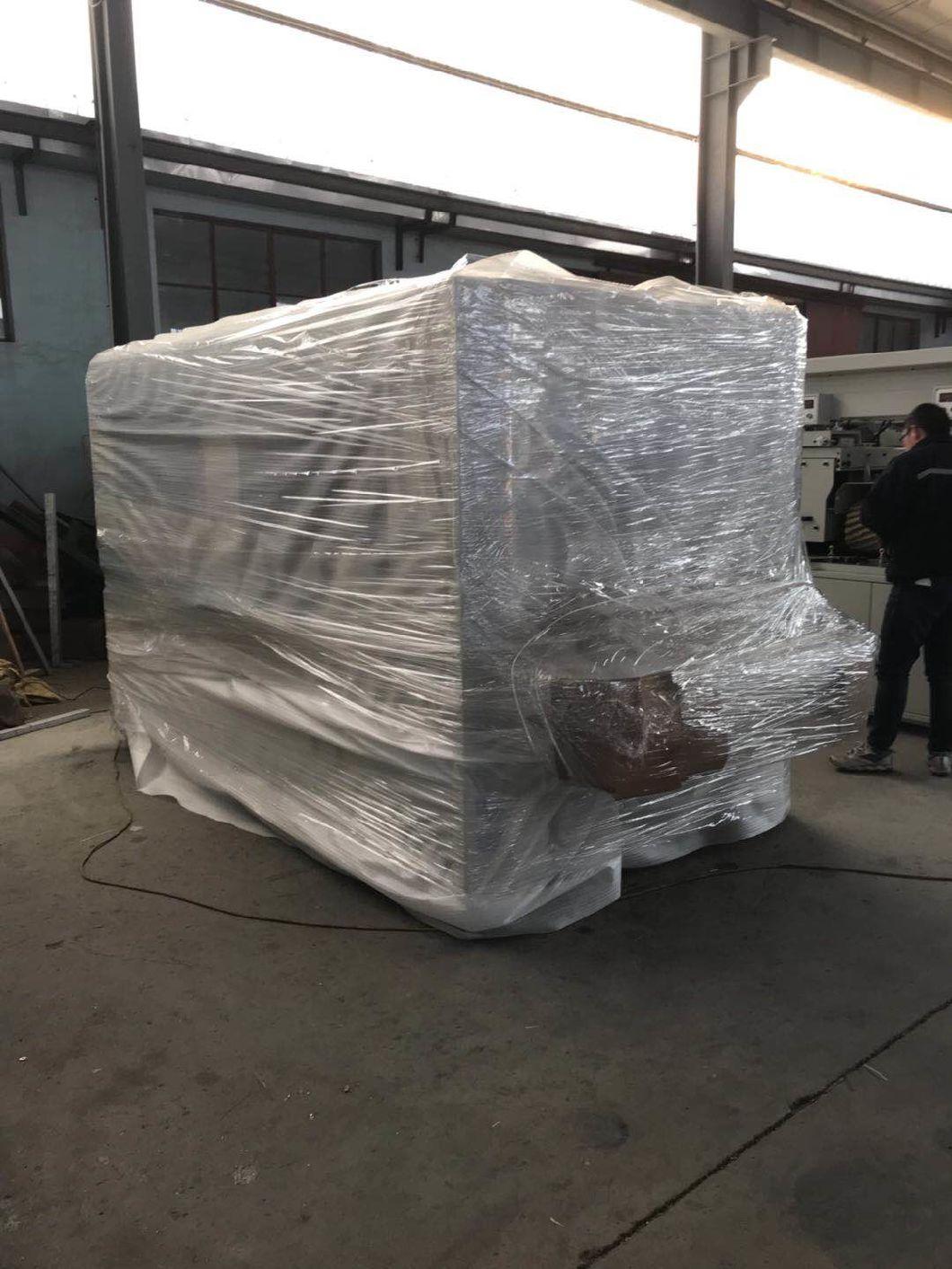

package :
Woodworking Automatic Brush Sanding Machine Brush Sander for Wood Door Floor
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film,
4. Delivery time:20 days after getting the deposit (depends on the quantity)
