• Model NO.：WZLH520
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：Engineer Available
• Capacity：1.5-1.8t,H
• Diemension：3200*1100*1700mm
• Power：110,132kw
• Weight：4500kg
• Pellet Size：6mm, 8mm, 10mm
• Brand of Motor：Siemens
• Power of Screw Feeder：3kw
• Ring Die Diameter：520mm
• Bearing：Imported
• Oil Seal：Made in Germany
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8479300000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. WZLH520 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service Engineer Available Capacity 1.5-1.8t/H Diemension 3200*1100*1700mm Power 110/132kw Weight 4500kg Pellet Size 6mm, 8mm, 10mm Brand of Motor Siemens Power of Screw Feeder 3kw Ring Die Diameter 520mm Bearing Imported Oil Seal Made in Germany Transport Package Iron Pallet and Soft Guard Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

Ring Die Wood Pellet Mill/Biomass Pelletizer Machine with CE/ISO

Introductions of wood pellet mill machine:

1. Biomass wood pellet machine is a kind of machine which could process sawdust
    straw dust, rice husk, peanut shell, tree branches, etc biomass through pre-
    treatment and process.Those biomass material will be solidified into high-
    density pellet fuel.
2. Classification:Flat die wood pellet machine,horizontal ring die wood pellet
    machine and vertical ring die wood pellet machine.Our horizontal ring die pellet
    machine have high output than flat die wood pelletizer;compared with vertical
    ring die pelletizer, our product have long term stable performance and easy
    maintenance,the finished pellets with compact structure,so they can be applied
    for industrial boiler.

Features of wood pellet mill machine:
1. High precision gear-driven transmission system, about 20% higher than belt
    driving;

2. Siemens motor, imported bearing, Germany oil seal to ensure long service time;

3. Advanced frequency-conversion motor, overload protection device, magnetic

    separating device are designed to ensure safety and long service time;

4. Advanced compensation type serpentine spring coupling to ensure high
    efficiency, low noise and long service time;

5. Gear-box body adopts HT250 material, which makes it much more durable and

    ensure its long service time;

6. Forced feeding system, specially designed for material with low density of 0.3-
    0.6g/m3

7. Suitable for pelleting various raw materials including woodiness, biomass waste
    like sawdust, woodchips, straw, stalk, sugar cane, napier grass, etc.

Technical Parameter of Wood Pellet Mill Machine:

Item	Ring die wood pellet mill machine
Pellet Mill Type	- With Standard Feeder - With Anti-broken Feeder
Technical Parameters	- Capacity: 1.5-1.8(T/H) - Size: 3200*1100*1700(mm)- Power: 110/132kw- Inner diameter of die: 520(mm) - Pellet size: 6ø, 8ø, 10ø(mm) - Net weight: 4500(kg)
Main Features	- CE & ISO & SGS certification - Siemens motor, imported bearing - High precision gear-driven transmission system - One ring die and two rollers system
Optional Parts	- Screw feeder with anti-broken - Conditioner: To adjust the moisture of raw material.  - Auto cooling system for gear-box(large capacity)
Packing Mode	Iron pallet with stretched film, etc
MOQ	1 set
Payment	L/C, T/T, Western Union, Money Gram...
Warranty	12 months



Parameters of  WZLH Series of wood pellet machine:

Model	WZLH420	WZLH520	WZLH680	WZLH780
Capacity(t/h)	0.8-1.2	1.5-1.8	2-2.5	2.5-3.5
Main motor power(kw)	90	110/132	160/185	200/220
Feeder power(kw)	2.2	3	4	4
Ring diedia(mm)	420	520	680	780
Pellets dia(mm)	6-8	6-8	6-8	6-8

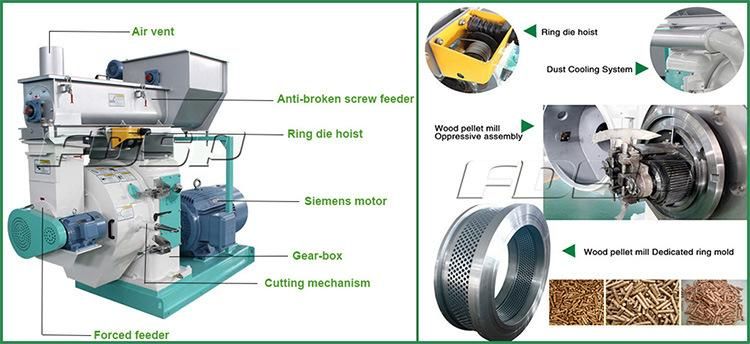

Picture of wood pellet mill machine:

Application of wood pellet mill machine:
wood pellets is mainly made of any wood waste and biomass particles, such as wood sawdust, wood shavings, wood chips, wood logs, straw, rice husk, coffee husk, etc

Our Service:

1. Warranty:1 years

2. Our professional service includes: Free training, Guidance Installation and
    Debugging.

3. After the warranty period, the supplier promise to provide life-long service for
    customer, and provide the most preferential price of the required parts.
4. 24 hours online.We will reply your questions on time.

Successful Turnkey Projects of FDSP:
FDSP has sold Feed machinery and fertilizer machinery throughout China and exported to Korea, South Africa, Russia, Thailand, Taiwan, Philippines, Malaysia, Australia, Egypt, Syria, Nigeria, Ethiopia, India, Bangladesh, Pakistan, Iran etc.
A complete set of fertilizer production line with capacity of 10tph was exported to South Korea in 2008;
A complete set of pulverized coal pellet production line with capacity of 30t/h was exported to South Africa in 2009.
Three complete sets of feed production lines were exported to Egypt with capacity of 10tph, 15tph and 20tph respectively from 2010 to 2012.
A large model of pellet mill with capacity of 25tph was exported to Thailand in 2013.


Our company view and certificates:
