Woodworking Machinery

Wood Panel Saw Machine Wood Cutting Computer Panel Saw

QINGDAO SOSN MACHINERY CO., LTD.
  • Warranty:12months
  • Type:Frame Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic

Base Info

  • Model NO.:DZ-2800
  • Precision:High Precision
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:12months
  • Name:Computer Beam Saw
  • Max. Cutting Length:2600mm
  • Max. Cutting Height:120mm
  • Main Sawblade Motor:15 Kw
  • Main Sawblade Diameter:450 mm
  • Scoring Saw Blade Diameter:200 mm
  • Scoring Saw Motor Power:2.2 Kw
  • Transport Package:Wooden Package
  • Specification:5300kg
  • Trademark:sosn
  • Origin:China
  • HS Code:84659100
  • Production Capacity:50 Sets,Month

Description

Basic Info.

Model NO. DZ-2800 Precision High Precision Certification CE, ISO Customized Customized Condition New Color Customized After-sales Service 12months Name Computer Beam Saw Max. Cutting Length 2600mm Max. Cutting Height 120mm Main Sawblade Motor 15 Kw Main Sawblade Diameter 450 mm Scoring Saw Blade Diameter 200 mm Scoring Saw Motor Power 2.2 Kw Transport Package Wooden Package Specification 5300kg Trademark sosn Origin China HS Code 84659100 Production Capacity 50 Sets/Month

Product Description

wood panel saw machine wood cutting computer panel saw

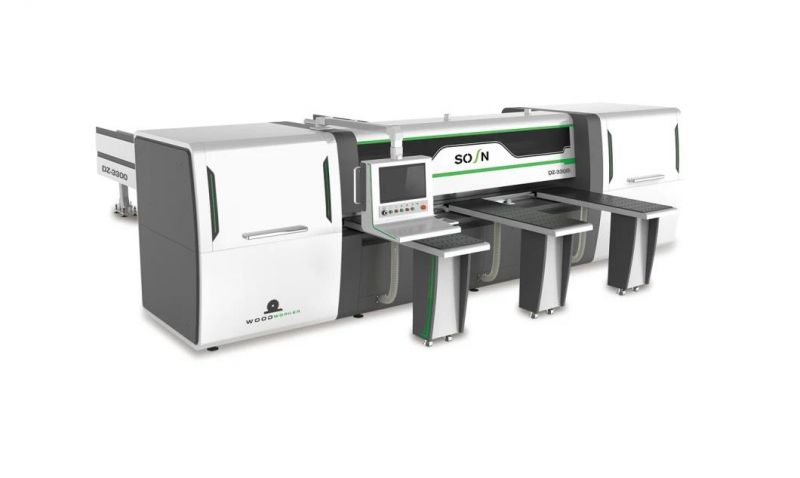

Wood Panel Saw Machine Wood Cutting Computer Panel Saw

Parameters
Max.cutting length2600mm
Max.cutting height120mm
Max.cutting size100*100mm
Main saw blade motor power15kw
Main saw blade diameter450mm
Main spindle diameter75mm
Main saw blade speed4000r/min
Scoring saw motor power2.2kw
Scoring saw diameter200mm
Scoring spindle diameter50mm
Scoring saw speed6000r/min
Pusher system drive motor2.4kw
High pressure blower motor3kw
working air pressure6-7kg/cm²
saw carriage drive motor3.8kw
Side motor power 90W
Voltage380V, 50HZ, 3 phase
Machine size6200*4400*21980mm
weight5.5T

Wood Panel Saw Machine Wood Cutting Computer Panel SawDetails Show

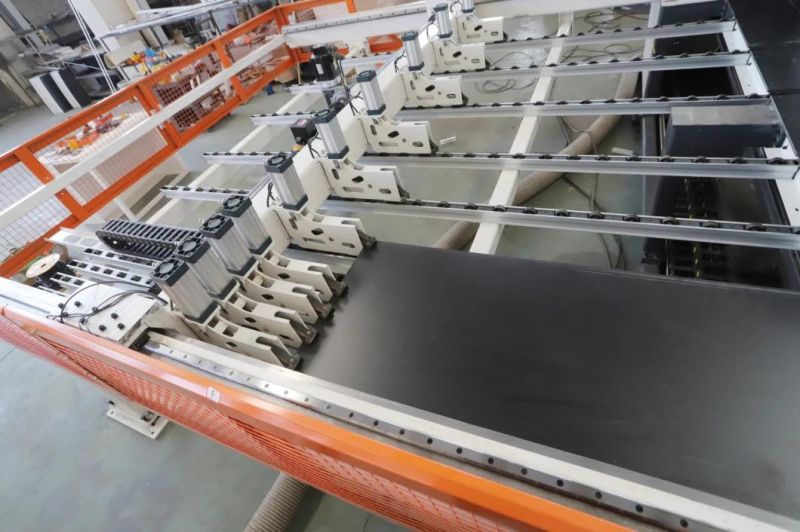

·10 sets of clamps.
Pneumatic holding gripers, can give the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, minimum holding panel size is 35*35mm
Wood Panel Saw Machine Wood Cutting Computer Panel Saw

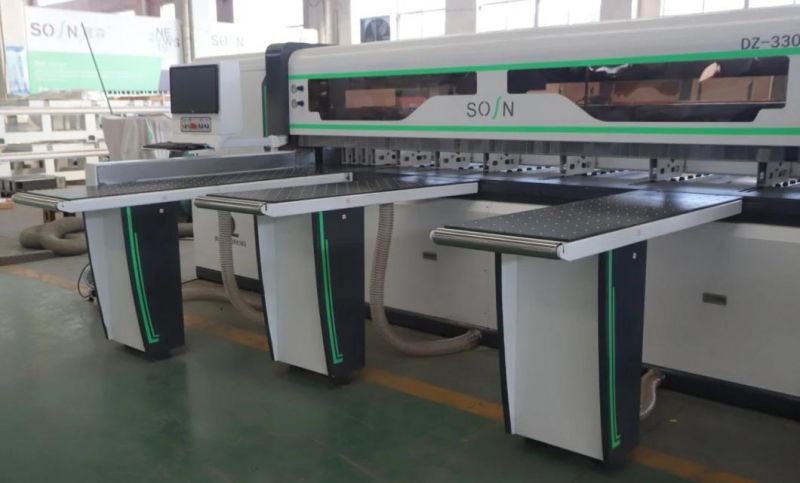

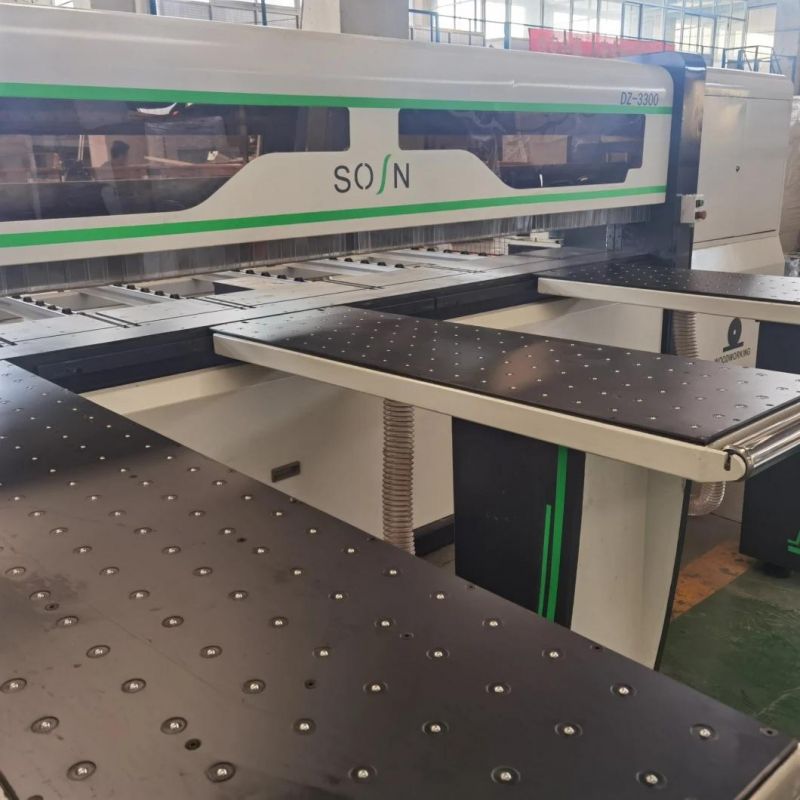

·Working table equipped with Air-floating balls
Effectively protects panel from scratching and much easier to feed in panel.

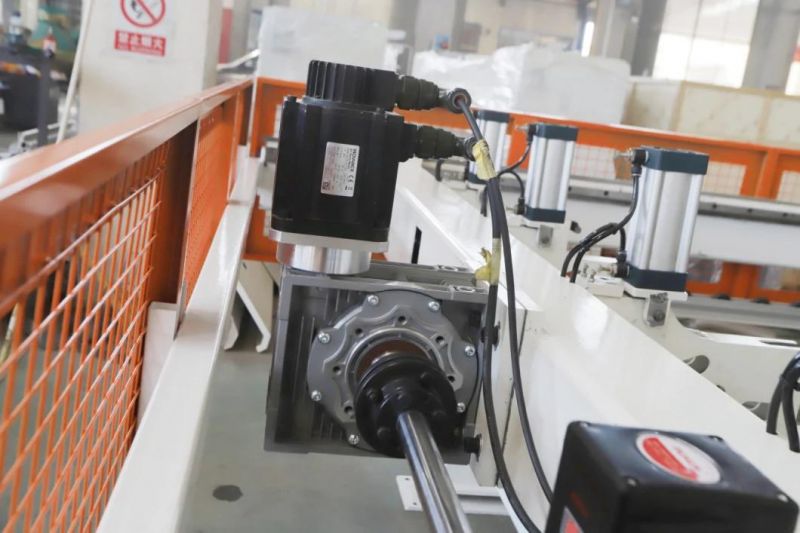

Wood Panel Saw Machine Wood Cutting Computer Panel Saw·Pusher driving system
Pusher adopts high precision worm reduce ans feeding gears and racks to make an accurate sawing.

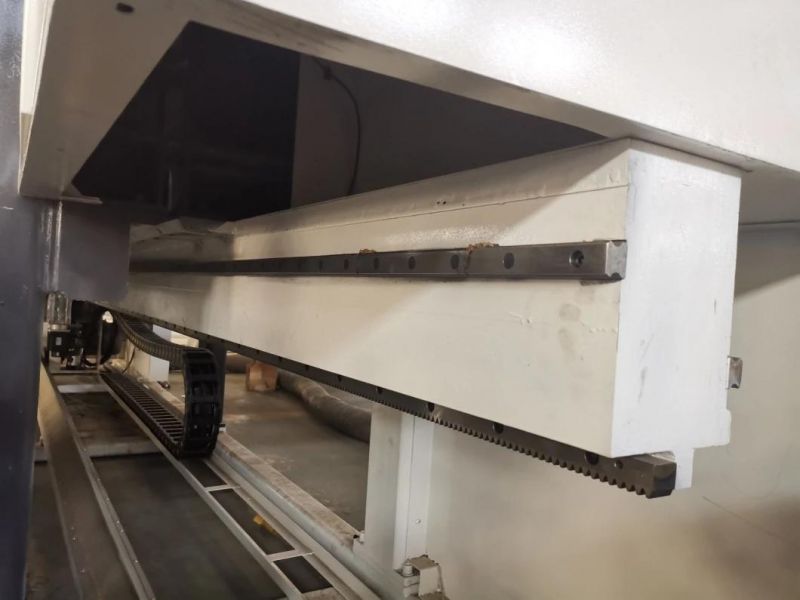

Wood Panel Saw Machine Wood Cutting Computer Panel Saw·Saw carriage driving system with liner guideway
Adopts with servo control and transmission with gears & racks, maximum moving speed is up to 120m/min.
The whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy.
The beam is made of 30mm thick steel plate, weighing 1.1T
Taiwan30 linear guide, 5.6 meters, loner service life.
Main frame adopting annealing technology, ensure frame non- deformation,
High efficiency and stable quality.

Wood Panel Saw Machine Wood Cutting Computer Panel Saw
--Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount.
--Package:
After testing the cnc computer beam saw machine well, our workers will do cleaning work before package.
 stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film.
Wood Panel Saw Machine Wood Cutting Computer Panel Saw
Q: How to get the most suitable machine and best price?
A: Please tell us the material you want to working on? How to work on it Engraving Cutting Or other? What's the MAX size of these material ? length? Width Thickness?


Q: If we donot know how to use the machine, can you teach us?
A: Yes, we will, if you come to China. we will offer you free training until you can use machine freely. And if you are busy we will have the special engineer to your country, but you need tobear some fee like tickets, hotel and meal.


Q: Can you promise to deliver the machine in time?
A: Yes, we can.


Q: How about your guarantee period?
A: Once you have any questions during this time, we will solve it for free.


Wood Panel Saw Machine Wood Cutting Computer Panel SawWood Panel Saw Machine Wood Cutting Computer Panel SawWood Panel Saw Machine Wood Cutting Computer Panel Saw
--Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
--Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
--After sales services:
Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help.
