• Voltage：230V
• Brand Name：Jian Zhong
• Transport Package：Null
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：84392000
• Production Capacity：1000sets,Year

Basic Info.

Voltage 230V Brand Name Jian Zhong Transport Package Null Specification steel Trademark JZ Origin China HS Code 84392000 Production Capacity 1000sets/Year

Product Description

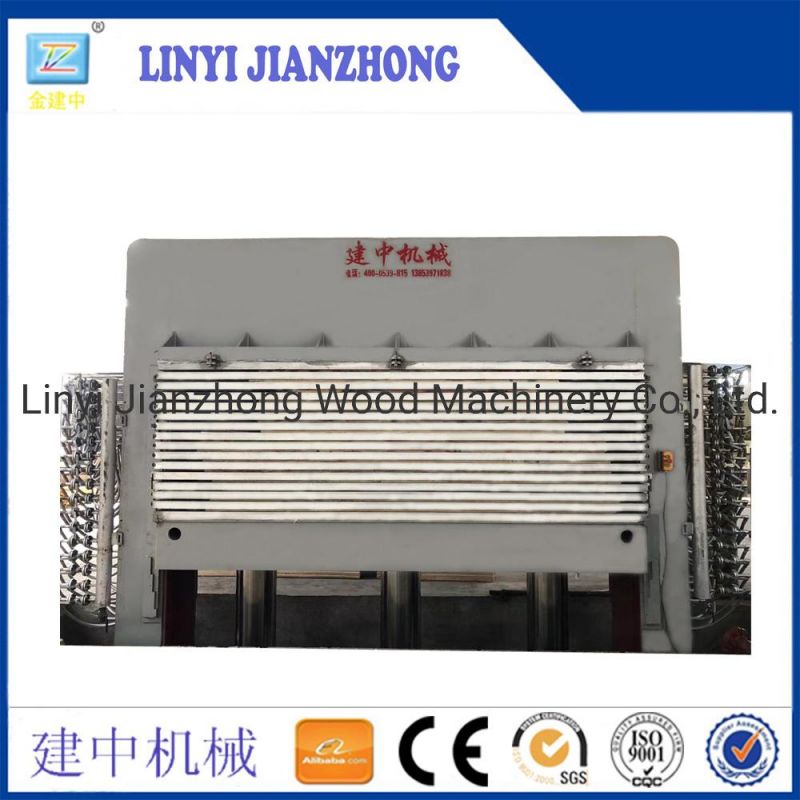

Lvl Board hot press machineProduct Description:
Hot pressing system, heating system, heat conduction system, light and meticous  design,  low heat consumption, uniform heat conduction; mechanism toset up the surface of the hot pressing machine,Reasonable, high precision machining parts, processparameters to adjust a wide range of control process design  is  reasonable, to meet a variety of veneer production process requirements. Uses: Surface pressseries models for neutral furniture factory or small wood-based panel secondary processing (professionalveneer) factory, used to heat  pressure  bondingfurniture panels, building partitions, wooden doors and in a variety of wood-based panel: Such as plywood, blockboard, MDF, particleboard  surface pressure affixed to a variety of decorative materials.

Advantages:

1. The machine adopts lever spring simultaneous closures system, which makes each core veneer closed simultaneously

2. After special processing, hot platen has a favorable tide exhaust tank on both sides,which makes venner exhause wet gas fast and efficiently.

3. The self-developed PLC systen can set the number and time of exhaust wet gas according to the humidity of core veneer.

4. Oil cylinder is easy to maintain, and also its failure rate is low. Besides, it adopts a upper cylinder mode.

Product Description:


Board feeding direction	Transverse
Pressure	500T/600T/800T/1200T
Temperature	150ºC
Layers	15 layers
Layer spacing	70mm
Number of hot press plate	16Pcs
Hot press plate size	2700mm*1370mm*52mm
Cylinde	Ø360mm*2pcs
Stroke	1050mm
Compression resistance	25 Mpa
Power	29.5KW
Middle beam	400mm
Weight	38Tons
Stand plate width	400MM*4
Composite frame	Detachable
Upper and bottom beam	900mm
Overall dimension	3550mm*1370mm*4200mm
ELECTRIC BOX	Zheng Tai
Thickness of the frame	35mm Q235

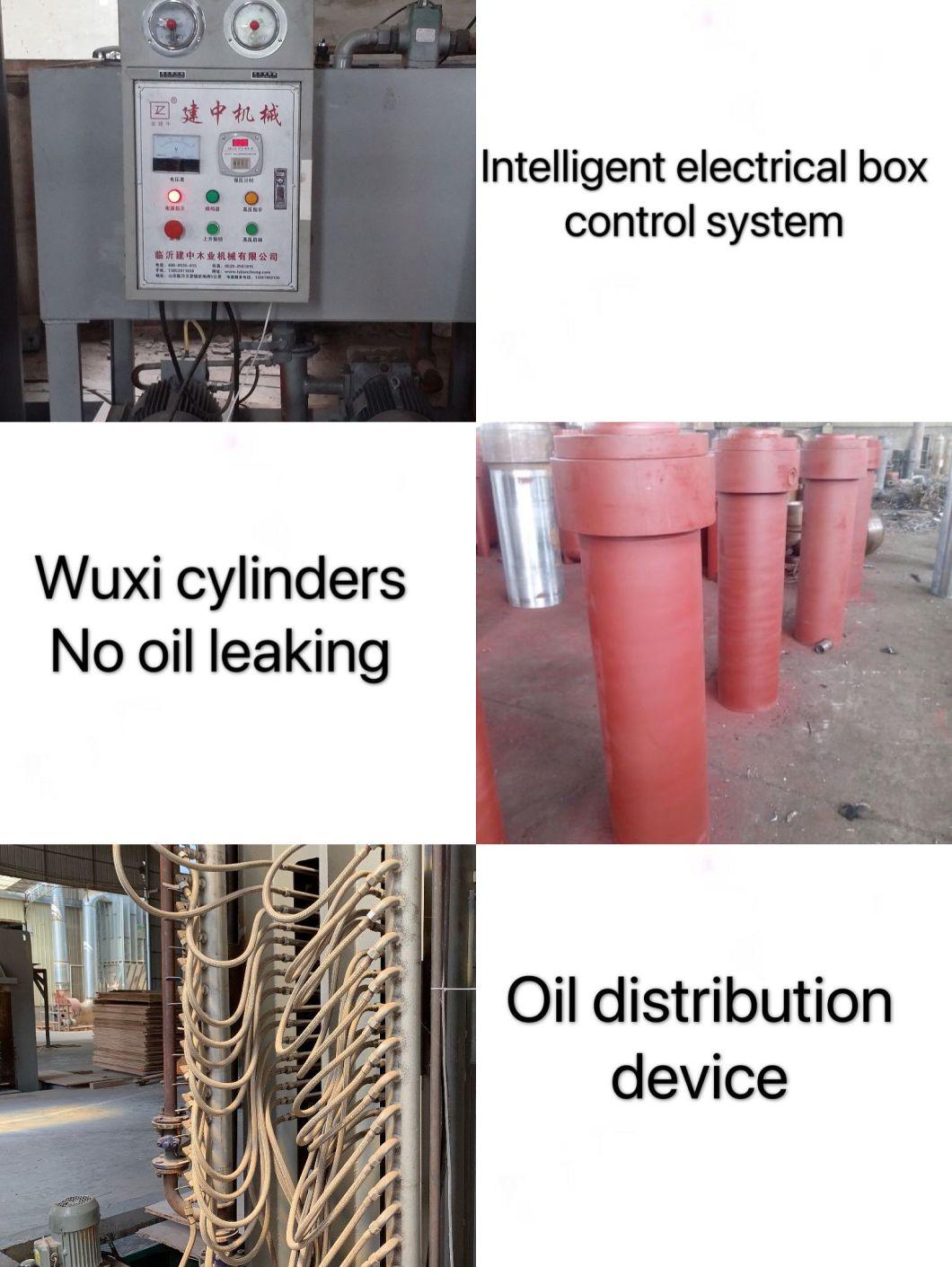

Detail images:

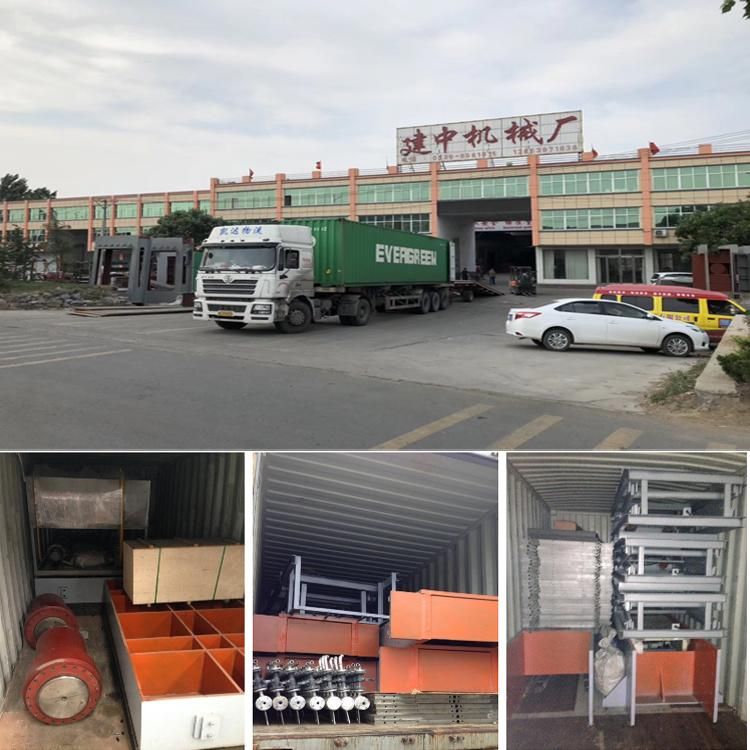

Packing&Shipping:


Certifications:



Our Services:

There are complete Pre-sale services, After-sales service, Technical service and communication, Delivery.

Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.

1.Engineers available to service machinery overseas;

2.Warranty: 1year;

3.For the installation, seller will send the drawing for fabrication on site. Seller shall send

engineers to guide installation. Buyer shall supply all the necessary help during

installation. Air tickets and accommodation will be borned by buyer, our engineers should

be paid 100USD per day.
